25 People watching this product now!

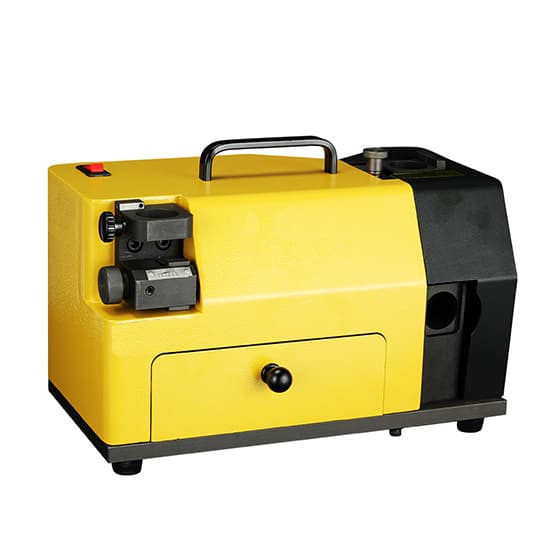

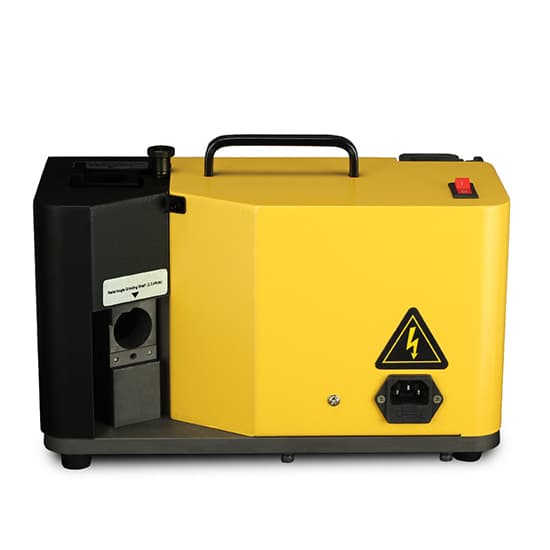

End mill sharpener for sale. It is a multifunctional machine used in grinding/sharpening, dedicated to end mill cutters. Attachments of the end mill grinder include optional CBN wheel (for high-speed steel) or SDC wheel (for tungsten steel), as well as fixtures.

Specification

Model	T-MCG-X1
Grinding Range	Ф4mm-Ф14mm
Rated Voltage	220V 50/60Hz
Motor Power	220W
Rotation Speed	4,400 rpm

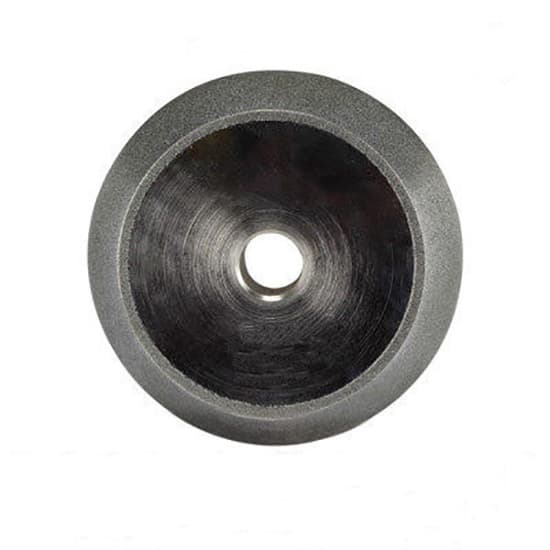

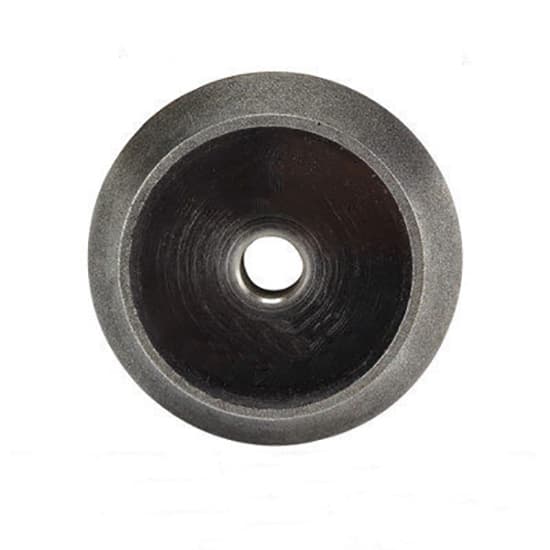

Grinding Wheel	CBN (for high speed steel), SDC (for tungsten steel)
Fixture Attachments	6 collets (Φ4, Φ6, Φ8, Φ10, Φ12, Φ14)
Certification	CE
Warranty	1 year
Overall Dimension	352423cm
Weight	15kg

Features

In addition to grinding end face, central angle and clearance angle for 2-flute, 3-flute and 4-flute end mill, the end mill sharpener also can open the cutting edge of tungsten bar directly.
End mill sharpener has compact size, small footprint, portable, suitable for milling cutter grinding work anywhere.
Lateral positioning adjustment, can better observe positioning effect, and tool setting is more stable and fast.

End Mill Sharpener Structure Diagram

End Mill Sharpener Effect Diagram

End Mill Sharpener Packing List

Drill bit sharpener grinder T-MCG-X1*1
SDC/CBN grinding wheel*1
Fixture ER20 collet*6
Small Allen wrench*3 (3, 4, 5mm)
Chuck set*2

Tips: Positioning method for end mill sharpener fixture set.

Put fixing chuck nut into the hole of length positioning seat of the end mill sharpener. After making it completely tightly connected, turn clockwise to the right for positioning.
Insert the tip of end milling cutter into the bottom of end mill sharpener, push it gently, and turn right when it hits the plane, then jam and position.
Turn chuck seat to the right to the end and lock it.
When taking out fixture set from of the end mill sharpener, hold the fixed chuck nut and turn it slightly to the left to take it out.
Observe whether the milling cutter blade is parallel to chuck seat. If it is not parallel, repositioning is required.
