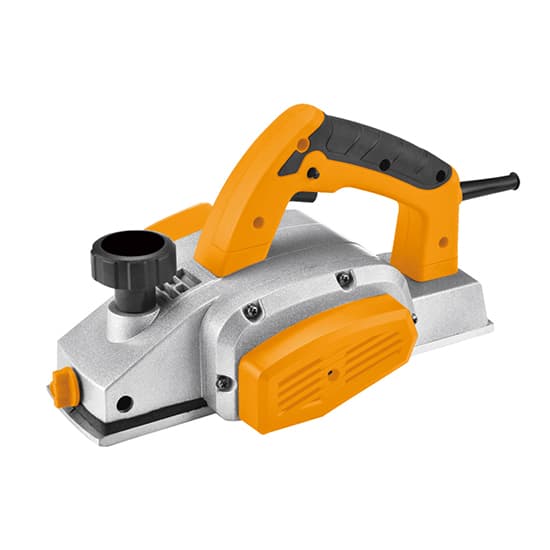

Electrical planer is a handheld power tool with the best quality. It is used in wooden furniture manufacturing, woodworking, handcrafted production, demolition and others in industrial/commercial/home use.

Specification

Model	T-ETPL-CFWP001B
Input Power	650W
Rated Voltage	110V, 220V
Rated Current	5.9A, 3.0A
Max. Planing Width	3-1/5 inch (82mm)
Max. Planing Depth	2mm
No-Load Speed	15,000rpm
Weight	4kg

Features

Hand-held electrical planer adopts copper core motor, high load, the machine will not burn out.
V-shaped diversion groove design, smooth and will not chips stucking.
The hand-held electrical planer has 0~2mm adjustable planing depth.
Hand-held electrical planer is equipped with high-strength blades, thickened steel material, sharp cutting edge, fast planing, suitable for all kinds of wood.

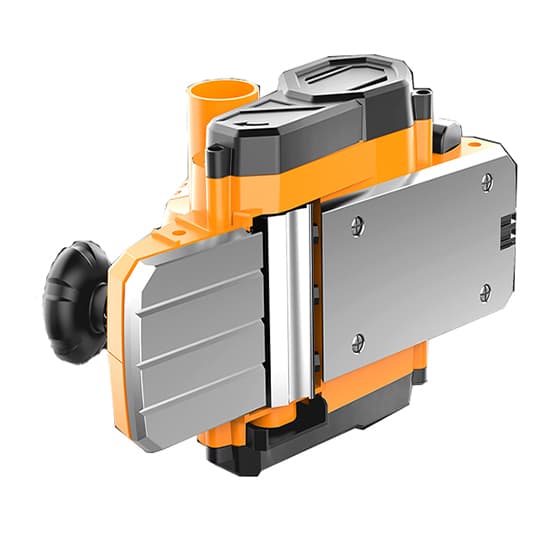

Hand-Held Electrical Planer Configuration

Hand-Held Electrical Planer Application Diagram

Tips: Carbon brush in handheld electrical planer.

Carbon brush replacement.
Carbon brushes are consumables. Handheld electrical planer after several months of use, it should be regularly checked whether carbon brushes are worn out. If it is worn out, please replace it in time. There is a carbon brush on the left and right sides of electric planer body, which can be replaced with a flat-blade screwdriver.
Carbon brush functions.
Carbon brush plays a role in electrical conductivity, and it rubs against motor to generate sparks. It is the normal working principle. Carbon brushes will wear out during use. Motor will not work after carbon brush is worn out, so it should be replaced regularly.
