Handheld Push Pull Force Gauge, 5KN/10KN to 2000 kN
Price range: $51.99 through $3,312.36
Size chart
| Category | US | EU | UK | Chest (in) | Waist (in) | Hips (in) |
|---|---|---|---|---|---|---|
| Men | XS | 44 | 34 | 32-34 | 26-28 | 33-35 |
| S | 46 | 36 | 34-36 | 28-30 | 35-37 | |
| M | 48 | 38 | 38-40 | 32-34 | 39-41 | |
| L | 50 | 40 | 42-44 | 36-38 | 43-45 | |
| XL | 52 | 42 | 46-48 | 40-42 | 47-49 | |
| Women | XS | 32 | 6 | 31-32 | 24-25 | 33-34 |
| S | 34 | 8 | 33-34 | 26-27 | 35-36 | |
| M | 36 | 10 | 35-36 | 28-29 | 37-38 | |
| L | 38-40 | 12-14 | 37-39 | 30-32 | 39-41 | |
| XL | 42 | 16 | 40-42 | 33-35 | 42-44 | |
| Youth | XS | 128 | 7 | 26-28 | 23-24 | 26-28 |
| S | 134 | 8 | 28-30 | 24-25 | 28-30 | |
| M | 140 | 10 | 30-32 | 25-26 | 30-32 | |
| L | 146 | 12 | 32-34 | 26-27 | 32-34 | |
| XL | 152 | 14 | 34-36 | 27-28 | 34-36 |
| Category | US | EU | UK | Waist (in) | Hip (in) | Inseam (in) |
|---|---|---|---|---|---|---|
| Men | 28 | 44 | 28 | 28 | 34 | 30 |
| 30 | 46 | 30 | 30 | 36 | 31 | |
| 32 | 48 | 32 | 32 | 38 | 32 | |
| 34 | 50 | 34 | 34 | 40 | 33 | |
| 36 | 52 | 36 | 36 | 42 | 34 | |
| Women | 0 | 32 | 4 | 24 | 34 | 30 |
| 2 | 34 | 6 | 25 | 35 | 30 | |
| 4 | 36 | 8 | 26 | 36 | 31 | |
| 6 | 38 | 10 | 27 | 38 | 32 | |
| 8 | 40 | 12 | 28 | 40 | 32 |
| Category | US | EU | UK | Foot Length (in) |
|---|---|---|---|---|
| Men | 6 | 39 | 5.5 | 9.25 |
| 7 | 40 | 6.5 | 9.625 | |
| 8 | 41 | 7.5 | 10 | |
| 9 | 42 | 8.5 | 10.25 | |
| 10 | 43 | 9.5 | 10.625 | |
| 11 | 44 | 10.5 | 11 | |
| 12 | 45 | 11.5 | 11.25 | |
| 13 | 46 | 12.5 | 11.625 | |
| Women | 5 | 35 | 2.5 | 8.5 |
| 6 | 36 | 3.5 | 8.875 | |
| 7 | 37 | 4.5 | 9.25 | |
| 8 | 38 | 5.5 | 9.625 | |
| 9 | 39 | 6.5 | 10 | |
| 10 | 40 | 7.5 | 10.25 | |
| 11 | 41 | 8.5 | 10.625 | |
| 12 | 42 | 9.5 | 11 | |
| M (Unisex) | 5 | 37 | 4.5 | 8.75 |
| 6 | 38 | 5.5 | 9 | |
| 7 | 39 | 6.5 | 9.5 | |
| 8 | 40 | 7.5 | 10 | |
| 9 | 41 | 8.5 | 10.25 | |
| 10 | 42 | 9.5 | 10.625 | |
| 11 | 43 | 10.5 | 11 | |
| 12 | 44 | 11.5 | 11.25 |
39
People watching this product now!
Description

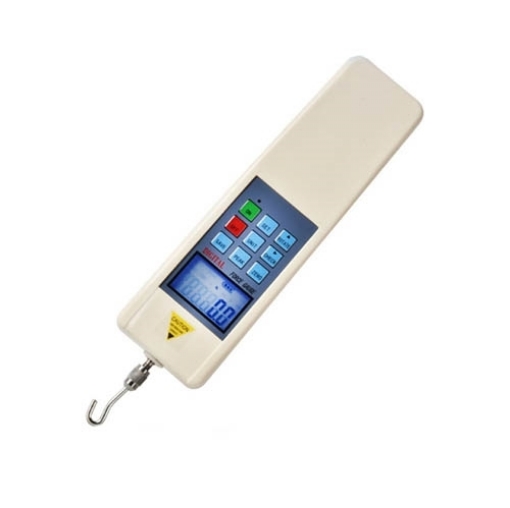

Digital force gauge with a capacity range of 2 kN to 2000 kN, featuring a 6-digit large screen display. Supports SI units (N, kg, lb) with mutual conversion. Stores up to 447 test values. Operates on 100V-240V power supply.
Feature
- Digital force gauge equipped with external sens0or and 6 bit big screen high precision high resolution with five test modes, three display modes for selection.
- Optional unit: N (newton), kg (kilogram), lb (pound) three units of measurement are available for mutual conversion.
- Force gauge meter gravitational acceleration setting function: the user can input the exact value of the gravitational acceleration of the place of use, making the test and unit conversion more accurate
- Automatic peak value time can be set freely from 1-9999 seconds. The upper and lower limits can be set for statistical analysis, and the buzzer will alarm by setting the limit range.
- Digital force meter with data storage function, can store 447 test values. The data can be input into the computer through the data line for various analysis (also applicable to multiple instruments and one computer for various analysis at the same time).
- Green and environmental protection, automatic shutdown after 10 minutes of no operation, 10 minutes is the default, you can set the automatic shutdown to the required time. When the automatic shutdown time is 0, it will not automatically shut down. High-quality charging power supply with voltage 100V~240V and overload protection function.
- The digital push pull gauge unique switch contact on-off force test function makes the switch on-off force test more accurate.
- Low battery detection shutdown, when the battery power is low, it will automatically shut down to prevent inaccurate measurement caused by insufficient power.
Specification
| Model | T-HA- 2000 | T-HA- 3000 | T-HA- 5000 |
T-HA-10k |
T-HA-20K |
T-HA-30K |
T-HA-50K |
T-HA- 100K | T-HA- 200K | T-HA- 300K | T-HA- 500K | T-HA- 1000K | T-HA- 2000K |
| Capacity | 2 kN | 3 kN | 5 kN | 10 kN | 20 kN | 30 kN | 50 kN | 100 kN | 200 kN | 300 kN | 500 kN | 1000 kN | 2000 kN |
| 200 kg | 300 kg | 500 kg | 1000 kg | 2000 kg | 3000 kg | 5000 kg | 10 ton | 20 ton | 30 ton | 50 ton | 100 ton | 200 ton | |
| 450 lb | 650 lb | 1100 lb | 2.2 klb | 4.5 klb | 6.5 klb | 11 klb | 22 klb | 45 klb | 65 klb | 110 klb | 220 klb | 450 klb | |
| Load division value | 1 N | 0.001 kN | 0.01 kN | 0.1 kN | 1 kN | ||||||||
| 0.1 kg | 0.1 kg | 1 kg | 10 kg | 100 kg | |||||||||
| 0.1 lb | 0.0001 klb | 0.001 klb | 0.01 klb | 0.1 klb | |||||||||
| Sensor structure load cell | External type | ||||||||||||
| Power supply | 7.2V 1.2Vx6 Ni-MH battery pack | ||||||||||||
| Output interface | RS232 nine-hole socket | ||||||||||||
| Charging time | 4 ~ 6 hours | ||||||||||||
| Battery continuous use time | about 15 hours | ||||||||||||
| Charger | Input AC 100~ 240V | ||||||||||||
| Output DC 12V 500mA | |||||||||||||
| Working temperature | 5℃ ~ 35℃ | ||||||||||||
| Transport temperature | -10℃~60℃ | ||||||||||||
| Relative humidity | 15%~80%RH | ||||||||||||
| Working environment | No source of vibration and corrosive medium around | ||||||||||||
| Battery Life | ≥ 300 times | ||||||||||||
| Precision | ±1% | ||||||||||||
Details
Size
Tips: What should be pay attention to digital force gauge usage?
- Calibration Before Use: Ensure the force gauge is properly calibrated before each use to maintain accuracy in measurements.
- Avoid Overloading: Do not exceed the maximum capacity of the device, as this may damage the sensor or reduce accuracy.
- Environmental Factors: Use the gauge in a stable environment, avoiding extreme temperatures, vibrations, or high humidity that may affect performance.
- Proper Handling and Maintenance: Handle the force gauge carefully, store it in a safe location when not in use, and perform regular maintenance checks to ensure longevity.
