59 People watching this product now!

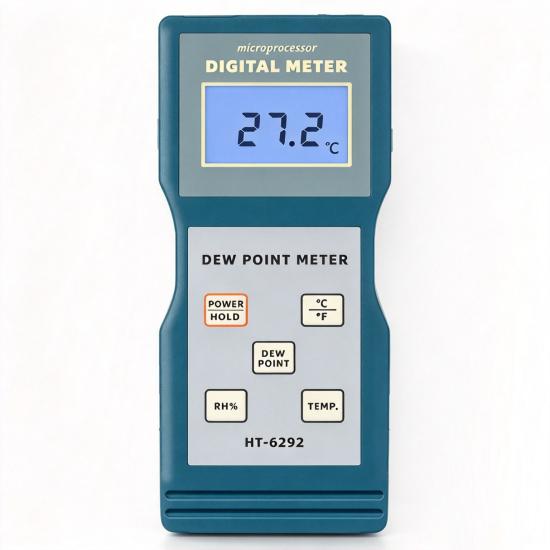

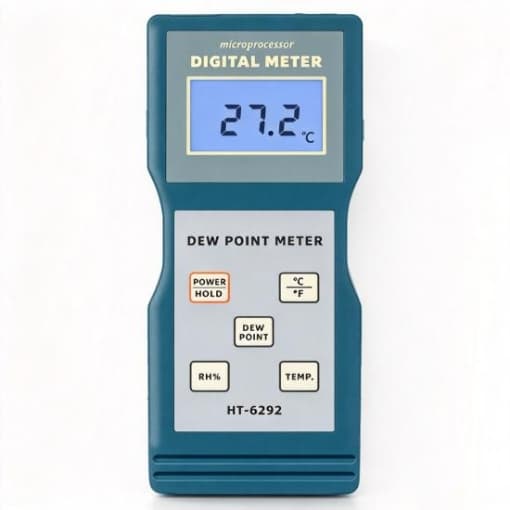

The portable dew point meter draws gas samples from pneumatic pipelines for moisture analysis and delivers rapid readings within 0.4 seconds. Fitted with a capacitive humidity sensor and a thermocouple, it achieves ±1℃ dew point accuracy and ±0.5℃ temperature accuracy. This sensing configuration supports stable evaluation of compressed air conditions.

Specification

Model	T-HT-6292
Display	10mm LCD screen
Measurement Range	Dew point: -40~40℃, Humidity: 10~95%RH, Temperature: -10~60℃ (14~140°F)
Resolution	Dew point: 0.1℃, Humidity: 0.1%RH, Temperature: 0.1℃/0.1°F
Accuracy	Dew point: ±1℃, Humidity: ±2.5%±1%RH, Temperature: ±0.5℃
Sensor Type	Humidity: Humidity-sensitive capacitance, Temperature: Thermocouple
Sampling Time	0.4s
Memory Function	Automatically stores the maximum, minimum, and last value
Timing Base	Quartz crystal
Power Supply	4 AA batteries
Power Consumption	Approx. 20mA
Dimensions	1366932 mm
Weight	300g (including batteries)

Features

Clear LCD Readout: Intuitive liquid crystal screen displays dew point, humidity, and temperature. It delivers stable readings within a dew point range of -40~40℃ for on-site environmental checks.
Auto Data Recording: Automatically captures maximum, minimum, and latest measurement values to simplify data review during inspections.

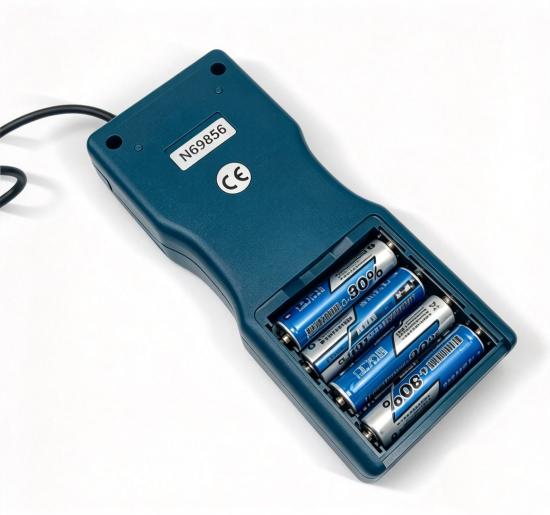

Extended Battery Life: Powered by 4 AA batteries with low power consumption, supporting long hours of continuous field measurement without frequent battery replacement.
Precision Timing Reference: Built with a quartz crystal timing base to deliver consistent time tracking and maintain stable measurement output during long testing cycles.
Robust Construction: Solid structural housing improves durability and guards internal sensing components against minor bumps in field working environments.

Dimensions

Applications

Office Environmental Monitoring: Track indoor dew point, temperature, and humidity to maintain comfortable and stable office air conditions.
Workshop Compressed Air Inspection: Test compressed air quality to prevent pipeline corrosion and protect industrial production equipment.
Laboratory Ambient Control: Capture accurate multi-parameter readings to keep stable environmental conditions for precision experiments.
Warehouse Storage Management: Monitor air moisture levels to avoid damp damage to stored goods and materials.
