Name: Handheld Wood Density Meter, 0.01g/cm&#179;~1.2g/cm&#179;
Brand: Tool
SKU: 1376
Availability: InStock

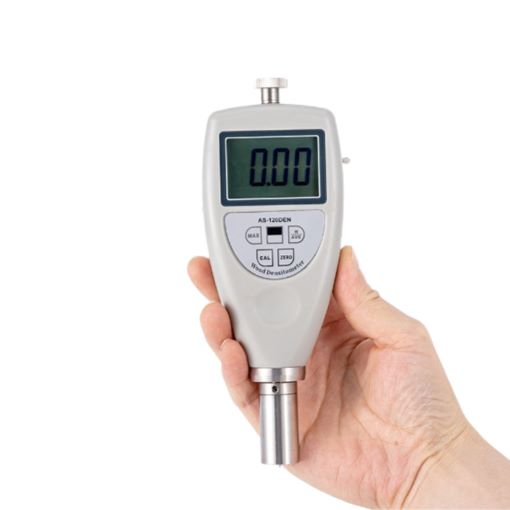

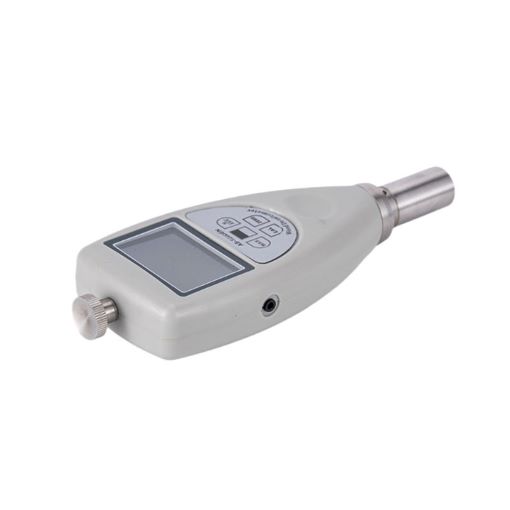

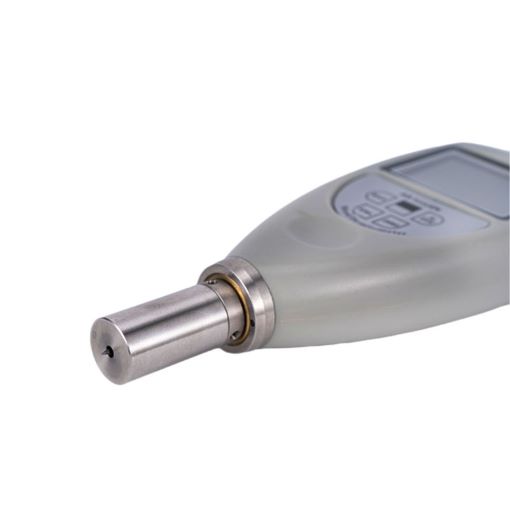

Handheld Wood Density Meter, 0.01g/cm³~1.2g/cm³

Size chart

Clothing Size Conversion Chart
Category	US	EU	UK	Chest (in)	Waist (in)	Hips (in)
Men	XS	44	34	32-34	26-28	33-35
	S	46	36	34-36	28-30	35-37
	M	48	38	38-40	32-34	39-41
	L	50	40	42-44	36-38	43-45
	XL	52	42	46-48	40-42	47-49
Women	XS	32	6	31-32	24-25	33-34
	S	34	8	33-34	26-27	35-36
	M	36	10	35-36	28-29	37-38
	L	38-40	12-14	37-39	30-32	39-41
	XL	42	16	40-42	33-35	42-44
Youth	XS	128	7	26-28	23-24	26-28
	S	134	8	28-30	24-25	28-30
	M	140	10	30-32	25-26	30-32
	L	146	12	32-34	26-27	32-34
	XL	152	14	34-36	27-28	34-36

Pants Size Conversion Chart
Category	US	EU	UK	Waist (in)	Hip (in)	Inseam (in)
Men	28	44	28	28	34	30
	30	46	30	30	36	31
	32	48	32	32	38	32
	34	50	34	34	40	33
	36	52	36	36	42	34
Women	0	32	4	24	34	30
	2	34	6	25	35	30
	4	36	8	26	36	31
	6	38	10	27	38	32
	8	40	12	28	40	32

Shoes Size Conversion Chart
Category	US	EU	UK	Foot Length (in)
Men	6	39	5.5	9.25
	7	40	6.5	9.625
	8	41	7.5	10
	9	42	8.5	10.25
	10	43	9.5	10.625
	11	44	10.5	11
	12	45	11.5	11.25
	13	46	12.5	11.625
Women	5	35	2.5	8.5
	6	36	3.5	8.875
	7	37	4.5	9.25
	8	38	5.5	9.625
	9	39	6.5	10
	10	40	7.5	10.25
	11	41	8.5	10.625
	12	42	9.5	11
M (Unisex)	5	37	4.5	8.75
	6	38	5.5	9
	7	39	6.5	9.5
	8	40	7.5	10
	9	41	8.5	10.25
	10	42	9.5	10.625
	11	43	10.5	11
	12	44	11.5	11.25

36 People watching this product now!

The electronic meter is a density measurement instrument, used to measure the density of wood. Its accuracy can reach ≤± 0.01g/cm³, and it can be digitally displayed. Easy to operate inline in a simple way, a cordless rechargeable tool designed for precise and efficient measurement of wood and similar materials. It has portability, average value calculation, and undervoltage alarm indication functions.

Specification

Model	T-AS-120DEN
Accuracy	≤± 0.01g/cm³
Display parameters	Hardness value/average value/* * value
Measurement unit	g/cm³
Measuring range	0.01g/cm³~1.2g/cm³
Resolution ratio	0.01g/cm³
Low voltage prompt	✓
Auto power off	✓
Work environment	Temperature: 0℃~50℃, Humidity: ＜80%RH
Power supply	2 No. 7 batteries
Dimensions	176mm×65mm×27mm
Weight	170g
Standard configuration	Host machine

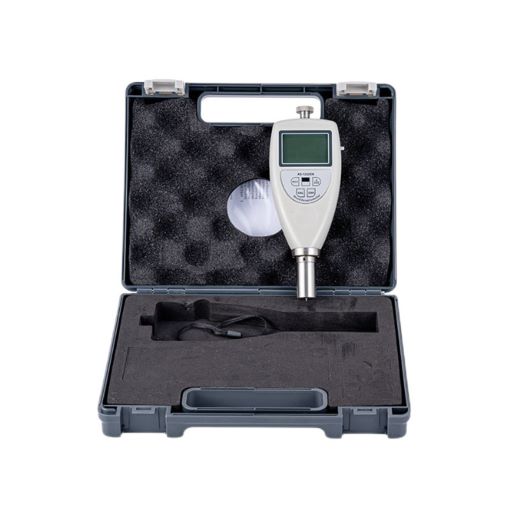

	Convenient hand box (B04)
	Instruction manual
Optional selection	RS232C Communication cables and software

How to operate a wood density meter?

Prepare instruments and samples. Ensure that the timber densitometer has been correctly installed and calibrated. Prepare the wood sample to be tested, ensuring that the surface of the sample is clean and free of impurities.
Measure air weight. Place the sample on the air dried material weighing platform of the densitometer, and record the weight of the sample in air (W1) after the value stabilizes.
Measure weight in water. Immerse the sample in water, use a basket or anti floating frame to prevent the sample from floating, and record the weight of the sample in water (W2) after the value stabilizes.
Calculate density. The wood densitometer will automatically calculate the density of the sample based on Archimedes’ principle.
Special treatment. For wood with a density less than 1, wax sealing may be necessary to prevent the sample from absorbing water. Measure the weight of air and water again after sealing the wax.
Record and analyze. Record the measurement results and analyze or compare them as needed.

Tip: During the measurement process, it is necessary to ensure the stability of the water temperature and avoid the influence of temperature changes on the measurement results. In addition, depending on the specific type of wood and measurement requirements, different measurement modes and calculation methods may need to be selected.
