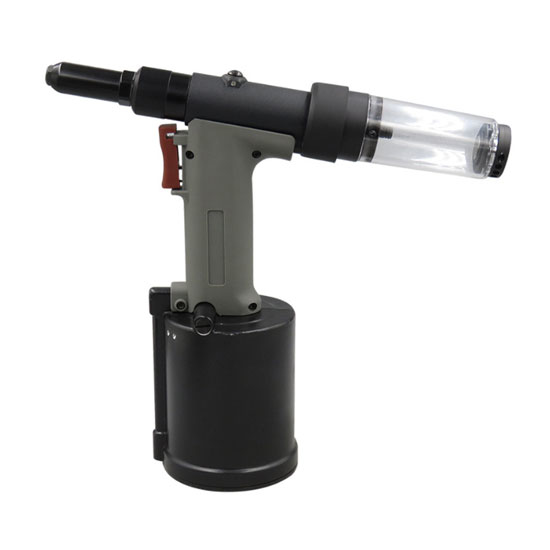

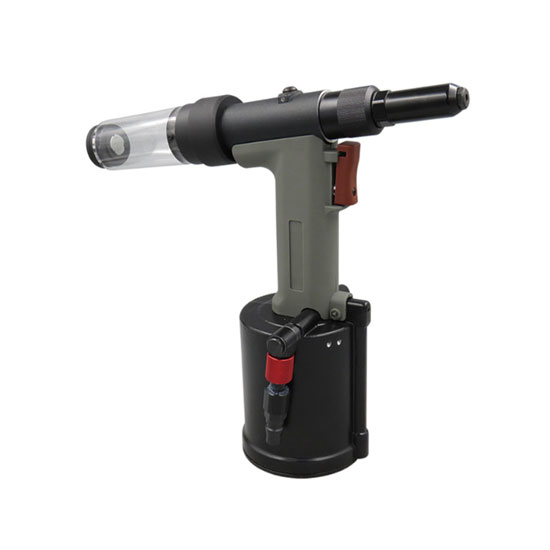

Heavy Duty Pneumatic Riveter, 5/32″ – 1/4″
Price range: $89.99 through $350.50
| Category | US | EU | UK | Chest (in) | Waist (in) | Hips (in) |
|---|---|---|---|---|---|---|
| Men | XS | 44 | 34 | 32-34 | 26-28 | 33-35 |
| S | 46 | 36 | 34-36 | 28-30 | 35-37 | |
| M | 48 | 38 | 38-40 | 32-34 | 39-41 | |
| L | 50 | 40 | 42-44 | 36-38 | 43-45 | |
| XL | 52 | 42 | 46-48 | 40-42 | 47-49 | |
| Women | XS | 32 | 6 | 31-32 | 24-25 | 33-34 |
| S | 34 | 8 | 33-34 | 26-27 | 35-36 | |
| M | 36 | 10 | 35-36 | 28-29 | 37-38 | |
| L | 38-40 | 12-14 | 37-39 | 30-32 | 39-41 | |
| XL | 42 | 16 | 40-42 | 33-35 | 42-44 | |
| Youth | XS | 128 | 7 | 26-28 | 23-24 | 26-28 |
| S | 134 | 8 | 28-30 | 24-25 | 28-30 | |
| M | 140 | 10 | 30-32 | 25-26 | 30-32 | |
| L | 146 | 12 | 32-34 | 26-27 | 32-34 | |
| XL | 152 | 14 | 34-36 | 27-28 | 34-36 |
| Category | US | EU | UK | Waist (in) | Hip (in) | Inseam (in) |
|---|---|---|---|---|---|---|
| Men | 28 | 44 | 28 | 28 | 34 | 30 |
| 30 | 46 | 30 | 30 | 36 | 31 | |
| 32 | 48 | 32 | 32 | 38 | 32 | |
| 34 | 50 | 34 | 34 | 40 | 33 | |
| 36 | 52 | 36 | 36 | 42 | 34 | |
| Women | 0 | 32 | 4 | 24 | 34 | 30 |
| 2 | 34 | 6 | 25 | 35 | 30 | |
| 4 | 36 | 8 | 26 | 36 | 31 | |
| 6 | 38 | 10 | 27 | 38 | 32 | |
| 8 | 40 | 12 | 28 | 40 | 32 |
| Category | US | EU | UK | Foot Length (in) |
|---|---|---|---|---|
| Men | 6 | 39 | 5.5 | 9.25 |
| 7 | 40 | 6.5 | 9.625 | |
| 8 | 41 | 7.5 | 10 | |
| 9 | 42 | 8.5 | 10.25 | |
| 10 | 43 | 9.5 | 10.625 | |
| 11 | 44 | 10.5 | 11 | |
| 12 | 45 | 11.5 | 11.25 | |
| 13 | 46 | 12.5 | 11.625 | |
| Women | 5 | 35 | 2.5 | 8.5 |
| 6 | 36 | 3.5 | 8.875 | |
| 7 | 37 | 4.5 | 9.25 | |
| 8 | 38 | 5.5 | 9.625 | |
| 9 | 39 | 6.5 | 10 | |
| 10 | 40 | 7.5 | 10.25 | |
| 11 | 41 | 8.5 | 10.625 | |
| 12 | 42 | 9.5 | 11 | |
| M (Unisex) | 5 | 37 | 4.5 | 8.75 |
| 6 | 38 | 5.5 | 9 | |
| 7 | 39 | 6.5 | 9.5 | |
| 8 | 40 | 7.5 | 10 | |
| 9 | 41 | 8.5 | 10.25 | |
| 10 | 42 | 9.5 | 10.625 | |
| 11 | 43 | 10.5 | 11 | |
| 12 | 44 | 11.5 | 11.25 |
The original nozzle diameter of the air powered riveter is 1/4 inch (6.4 mm). A double open end wrench is included in package, which helps you replace the nosepiece. Pneumatic hydraulic rivet guns are widely used in mechanical equipment, vessel, automobile, aeronautical facility, luggage production, automobile manufacture and so on.
Features
- The air rivet gun works for aluminum rivets and stainless steel rivets.
- Designed for grasping rivets automatically, the pneumatic riveter is high efficiency and labor saving.
- An oil filling port on the air hydraulic rivet gun help you refuel easily.
- You can rotate the universal Joint according to what you need.
Specification
| Model | T-HDPR-300 | T-HDPR-330 |
| Rivet Capacity | Aluminum Rivet: 5/32″, 3/16″, 1/4″ (4.0mm, 4.8mm, 6.4 mm) | Aluminum Rivet: 3/16″, 1/4″ (4.8mm, 6.4 mm) |
| Steel Rivet: 5/32″, 3/16″(4.0mm, 4.8mm) | Steel Rivet: 3/16″, 1/4″ (4.8mm, 6.4 mm) | |
| Power Source | Air Powered | Air Powered |
| Working Pressure | 90 PSI (0.62MPa) | 90 PSI (0.62MPa) |
| Air Inlet Size | 1/4 inch (6.35mm) | 1/4 inch (6.35mm) |
| Air Consumption | 8.75 CFM (0.25M³/Min) | 8.75 CFM |
| Maximum Stroke | 20mm | 26mm |
| Body Dimension | 300mm * 300mm | 330mm * 300mm |
| Weight | 1.86kg | 2.6kg |
| Package Included |
1 PC Pneumatic Riveter |
1 PC Pneumatic Riveter |
Dimension
- Model T-HDPR-300
- Model T-HDPR-330
Details
- Nozzle
- Oil Filling Port
- Rivet Container
- Starting Switch
- Air Outlet
- Ergonomic handle
- Air Source Switch
- Universal Joint
Tips: Advantages of heavy duty pneumatic riveter
1. The heavy duty pneumatic riveter is light weight and high power. It is easy to operate and maintain.
2. Three jaws are thick and hard with heat treatment, which has long time service life.
3. The nozzle is as well as processed by heat treatment, making the air riveter operate steadily.
4. The body of the air powered riveter made from novel material that is hardness and light weight.
5. Air pop rivet guns effortlessly provide precise riveting each time.
6. There is no risk of fire.
