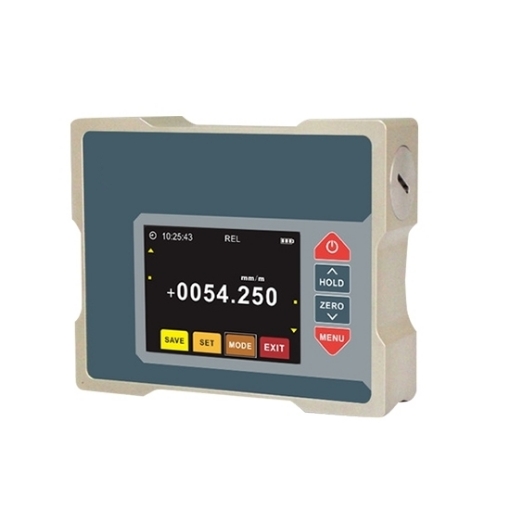

This high-accuracy magnetic inclinometer adopts the micro-mechanical control principle. It utilizes interleaving and temperature compensation model algorithm, giving full play to the absolute computing advantages of the micro-mechanical electronic principle, and ensuring the long-term stability and repeatability of the instrument’s measurement. It features a maximum measurement accuracy of less than 0.005° and a resolution of 0.001°. It also supports automatic switching between 1 axis and 2 axis, has an IP54 waterproof rating, is an industrial inclinometer that perfectly suits your various application.

Specification

Model	T-DMI-610
Measurement Range	Single Axis: ±90°	Dual Axis: ±30°
Measurement Axis	Single/Dual Axis
Highest Measurement Accuracy (RMS)	<0.02° (full scale) for single axis	<0.005° (full scale) for dual axis
Angle Measurement Resolution	0.001°	0.001°
Repeatability	0.004°	0.004°
Measurement Mode	Degrees/Minutes/Seconds, Angle, mm/m mode can be set
LCD Display	64-color true color night light display
LCD Viewable Area Size	L60.5mm*W45mm
Operating Temperature	-10℃ to +70℃
Operating Humidity	85% RH
Battery Specification	One 2A AA battery or AA Ni-MH rechargeable battery
Battery Continuous Operating Time	6 hours (with 2000mAh battery)
Vibration Resistance	10g@11ms, three-axis (half-sine wave)
Shock Resistance	10grms, 10~100Hz
Weight	600g
Waterproof Rating	IP54
Material	Wear-resistant aluminum alloy
Dimensions	L115W95H32mm
Installation Methods	Side, bottom, and back surfaces with strong magnetic adsorption

Features

Precision measurement: This high-precision digital inclinometer can achieve an optimal accuracy of less than 0.02° and a resolution of 0.001°, and is suitable for various industrial application that require precise data.
Stable and durable: This electronic inclinometer adopts MEMS technology and temperature compensation to ensure long-term stability. From outdoor slope measurement to automobile workshops, it can work reliably within the temperature range of -10℃ to +70℃.
Switchable modes: This inclinometer supports switching between ±90 degrees in single axis and ±30 degrees in dual axis modes. perfectly adapting to all your measurement needs.
Convenient data reading: This digital display inclinometer is equipped with a four-color screen with night vision function and has data storage capability. Whether it is night construction or pipeline installation, it ensures you can quickly read and record data.

Dimension (Unit: mm)

Measuring Mode

Measuring Direction

Installation

Application

Tips: Why Do You Need an Inclinometer?

1. Addressing the core need for accurate angle measurement: Whether calibrating machine tool guideway levels in industrial production, inspecting slope gradient compliance in construction, or adjusting automotive chassis angles precisely, manual estimation or simple tools (e.g., spirit levels) barely meet the ±0.1°+ accuracy requirement. A high-precision digital inclinometer, in particular, enables direct angle reading, avoids issues like product disqualification, rework or equipment failure from angle deviations, and ensures measurement accuracy at the source.

2. Flexible practicality for multi-scenario adaptation: Requirements for measurement dimensions and environmental adaptability differ greatly across scenarios-outdoor projects need to handle -10℃ to +70℃ temperatures and light rain, workshop inspections require quick single/dual-axis switching, and night construction needs clear readability. With strong magnetic mounting (no drilling), temperature compensation, night-vision screen and data storage, the inclinometer fits industries, construction, automotive and outdoor exploration in one, eliminating the need for separate tools and boosting work efficiency.

3. Reducing operation and recording costs: Traditional angle measurement needs multi-person coordination (e.g., holding a ruler, reading, recording) and risks data deviations from manual errors. A digital inclinometer enables single-person use with clear on-screen angles; some models even support automatic data storage/export to avoid manual transcription. Plus, functions like single/dual-axis switching and unit conversion (e.g., degrees/minutes/seconds) need no complex settings, letting new users start quickly-cutting training costs and errors, and indirectly boosting overall efficiency.
