Name: Jumping Jack Tamping Rammer, 10kN, 5/5.5/6.5HP
Brand: Tool
SKU: 772
Availability: InStock

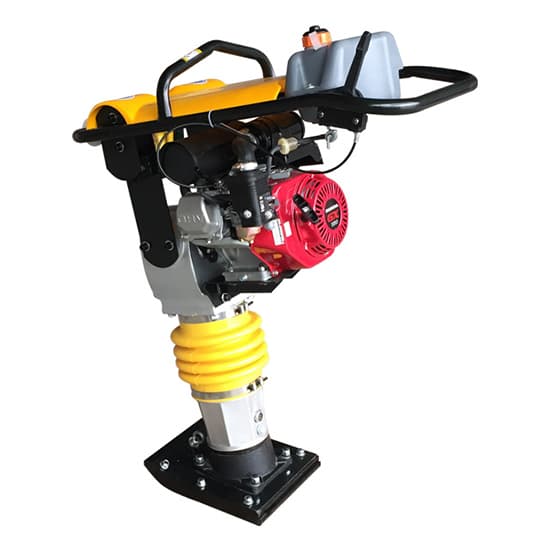

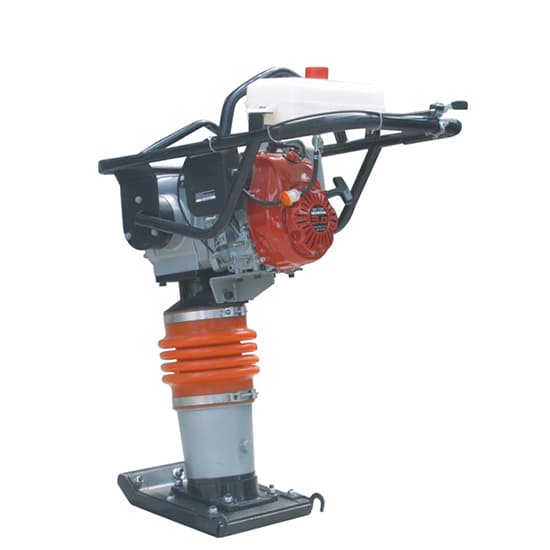

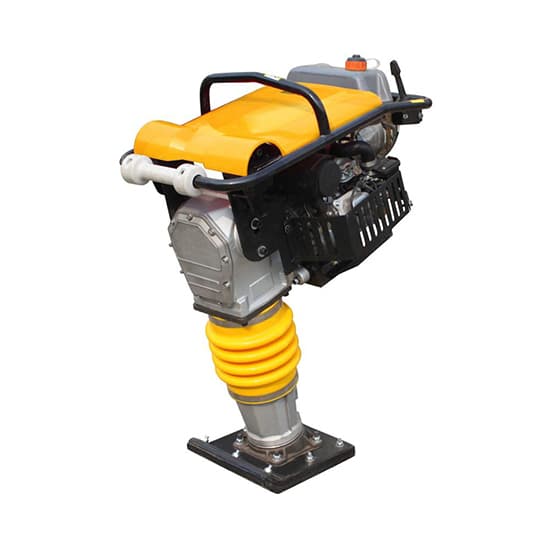

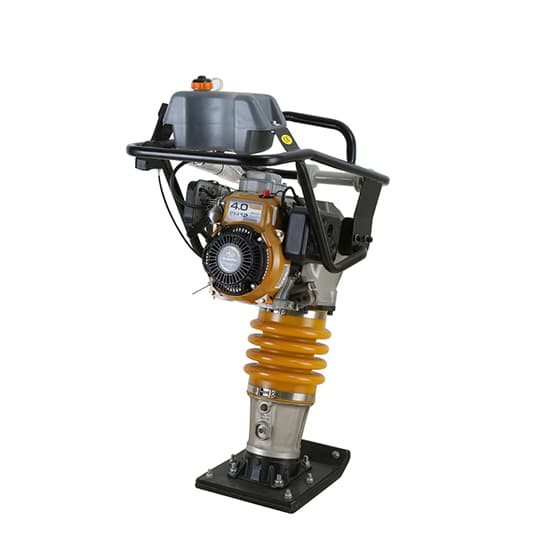

Jumping Jack Tamping Rammer, 10kN, 5/5.5/6.5HP

Size chart

Clothing Size Conversion Chart
Category	US	EU	UK	Chest (in)	Waist (in)	Hips (in)
Men	XS	44	34	32-34	26-28	33-35
	S	46	36	34-36	28-30	35-37
	M	48	38	38-40	32-34	39-41
	L	50	40	42-44	36-38	43-45
	XL	52	42	46-48	40-42	47-49
Women	XS	32	6	31-32	24-25	33-34
	S	34	8	33-34	26-27	35-36
	M	36	10	35-36	28-29	37-38
	L	38-40	12-14	37-39	30-32	39-41
	XL	42	16	40-42	33-35	42-44
Youth	XS	128	7	26-28	23-24	26-28
	S	134	8	28-30	24-25	28-30
	M	140	10	30-32	25-26	30-32
	L	146	12	32-34	26-27	32-34
	XL	152	14	34-36	27-28	34-36

Pants Size Conversion Chart
Category	US	EU	UK	Waist (in)	Hip (in)	Inseam (in)
Men	28	44	28	28	34	30
	30	46	30	30	36	31
	32	48	32	32	38	32
	34	50	34	34	40	33
	36	52	36	36	42	34
Women	0	32	4	24	34	30
	2	34	6	25	35	30
	4	36	8	26	36	31
	6	38	10	27	38	32
	8	40	12	28	40	32

Shoes Size Conversion Chart
Category	US	EU	UK	Foot Length (in)
Men	6	39	5.5	9.25
	7	40	6.5	9.625
	8	41	7.5	10
	9	42	8.5	10.25
	10	43	9.5	10.625
	11	44	10.5	11
	12	45	11.5	11.25
	13	46	12.5	11.625
Women	5	35	2.5	8.5
	6	36	3.5	8.875
	7	37	4.5	9.25
	8	38	5.5	9.625
	9	39	6.5	10
	10	40	7.5	10.25
	11	41	8.5	10.625
	12	42	9.5	11
M (Unisex)	5	37	4.5	8.75
	6	38	5.5	9
	7	39	6.5	9.5
	8	40	7.5	10
	9	41	8.5	10.25
	10	42	9.5	10.625
	11	43	10.5	11
	12	44	11.5	11.25

40 People watching this product now!

Wholesale 10kN jumping jack compactor tamping rammer powered by 5/5.5/6.5HP engine, 10m/min travel speed, 450-650 times/min impact number. Portable tamper machine suitable for sand, gravel, stone, asphalt sandstone, lean concrete and clay compaction, widely used in road construction, bridge foundation, building construction.

Description

Model	T-HCR90
Engine Type	Single sylinder, 4-stroke, air cooled
Engine Brand	Honda GX160	Robin EY20	Chinese Petrol Engine
Power of Engine	5.5 HP	5 HP	6.5 HP
Impact Force	10 kN (2248 lbf)
Jumping Stroke	40-65 mm
Travel Speed	10m/min
Impact Number	450-650 times/min
Plate Size	330 x 300 mm (13″ x 12″)
Working Method	Vibration
Certification	CE, ISO
Warranty	1 Year
After-sales Service	Video technical support, Online support, Free spare parts
Net Weight	78 kg

Features

Tamping rammer with 4-stroke gasoline engine which is not needed to mix gasoline and oil while different brands of engine can be used such as Honda, Robin, Chinese engines.
Easy starting, low noise, convenient maintenance and less fuelconsumption comparing to 2-stroke engine.
The handle can effectively avoid impact damage to the machine.
Aluminum alloy for lighter weight and better thermal diffusivity.
330 x 300 mm thickness plate and heavy shock mount system can reduce the handrail vibration and improve operating comfortableness.
Precision casting body and polyurethane bellows, strong and duable.

Tips: Before starting to operate the 10kN tamping rammer

Read tamping rammer Instruction Manual carefully for proper and safe operation. Do not allow anyone to operate it unless one is familiar with the operation.
See separate Engine Manual for its operation.
Wear properly for operation including safety protectors such as hard hat or safety shoes.
Check every part of machine for loosened fasteners or any other abnormality.
Be sure to shutdown the engine before starting service work.
Replace obscured caution plate with new, clearly legible one.
Be sure to store the machine beyond childrens reach.
