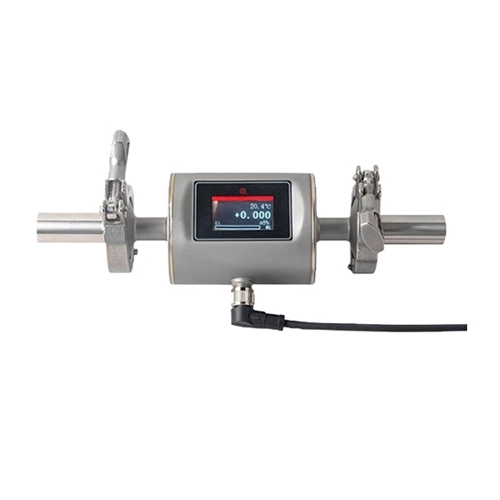

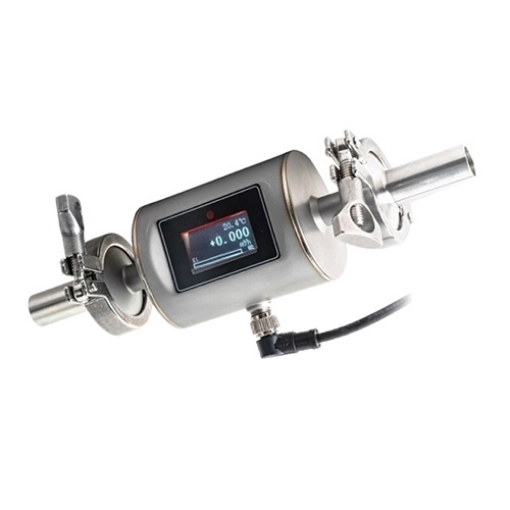

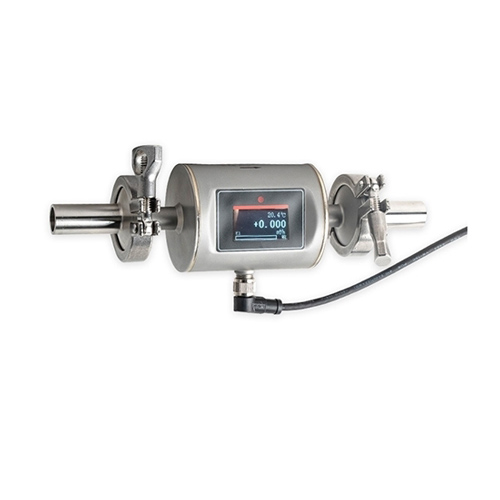

Magnetic Flow Meter for Water/Liquid, Micro flow, DN6-DN65
Price range: $119.99 through $634.99
| Category | US | EU | UK | Chest (in) | Waist (in) | Hips (in) |
|---|---|---|---|---|---|---|
| Men | XS | 44 | 34 | 32-34 | 26-28 | 33-35 |
| S | 46 | 36 | 34-36 | 28-30 | 35-37 | |
| M | 48 | 38 | 38-40 | 32-34 | 39-41 | |
| L | 50 | 40 | 42-44 | 36-38 | 43-45 | |
| XL | 52 | 42 | 46-48 | 40-42 | 47-49 | |
| Women | XS | 32 | 6 | 31-32 | 24-25 | 33-34 |
| S | 34 | 8 | 33-34 | 26-27 | 35-36 | |
| M | 36 | 10 | 35-36 | 28-29 | 37-38 | |
| L | 38-40 | 12-14 | 37-39 | 30-32 | 39-41 | |
| XL | 42 | 16 | 40-42 | 33-35 | 42-44 | |
| Youth | XS | 128 | 7 | 26-28 | 23-24 | 26-28 |
| S | 134 | 8 | 28-30 | 24-25 | 28-30 | |
| M | 140 | 10 | 30-32 | 25-26 | 30-32 | |
| L | 146 | 12 | 32-34 | 26-27 | 32-34 | |
| XL | 152 | 14 | 34-36 | 27-28 | 34-36 |
| Category | US | EU | UK | Waist (in) | Hip (in) | Inseam (in) |
|---|---|---|---|---|---|---|
| Men | 28 | 44 | 28 | 28 | 34 | 30 |
| 30 | 46 | 30 | 30 | 36 | 31 | |
| 32 | 48 | 32 | 32 | 38 | 32 | |
| 34 | 50 | 34 | 34 | 40 | 33 | |
| 36 | 52 | 36 | 36 | 42 | 34 | |
| Women | 0 | 32 | 4 | 24 | 34 | 30 |
| 2 | 34 | 6 | 25 | 35 | 30 | |
| 4 | 36 | 8 | 26 | 36 | 31 | |
| 6 | 38 | 10 | 27 | 38 | 32 | |
| 8 | 40 | 12 | 28 | 40 | 32 |
| Category | US | EU | UK | Foot Length (in) |
|---|---|---|---|---|
| Men | 6 | 39 | 5.5 | 9.25 |
| 7 | 40 | 6.5 | 9.625 | |
| 8 | 41 | 7.5 | 10 | |
| 9 | 42 | 8.5 | 10.25 | |
| 10 | 43 | 9.5 | 10.625 | |
| 11 | 44 | 10.5 | 11 | |
| 12 | 45 | 11.5 | 11.25 | |
| 13 | 46 | 12.5 | 11.625 | |
| Women | 5 | 35 | 2.5 | 8.5 |
| 6 | 36 | 3.5 | 8.875 | |
| 7 | 37 | 4.5 | 9.25 | |
| 8 | 38 | 5.5 | 9.625 | |
| 9 | 39 | 6.5 | 10 | |
| 10 | 40 | 7.5 | 10.25 | |
| 11 | 41 | 8.5 | 10.625 | |
| 12 | 42 | 9.5 | 11 | |
| M (Unisex) | 5 | 37 | 4.5 | 8.75 |
| 6 | 38 | 5.5 | 9 | |
| 7 | 39 | 6.5 | 9.5 | |
| 8 | 40 | 7.5 | 10 | |
| 9 | 41 | 8.5 | 10.25 | |
| 10 | 42 | 9.5 | 10.625 | |
| 11 | 43 | 10.5 | 11 | |
| 12 | 44 | 11.5 | 11.25 |
Shop the Electromagnetic Flow Meter on Tool.com for precise, reliable, and efficient flow measurement in water/liquid and micro flow applications. This high-precision electromagnetic flow meter is designed for measuring conductive liquids such as water, chemicals, and other fluids with a minimum conductivity of 2μS/cm. With a nominal diameter range from DN6 to DN65, it offers exceptional accuracy and is ideal for a wide variety of industrial applications.
Specification
| Model | T-FMX240 |
| Nominal Diameter | DN6~DN65 |
| Measurement Range | Reference flow range table |
| Measurement Range Ratio | 1:150 |
| Measured Medium | Conductive liquid (conductivity not less than 2uS/cm) |
| Transmission Output | 4~20mA, output load≤500 Ω |
| Communication Output | RS485 interface, MODBUS-RTU communication protocol |
| Flow Meter Liner | Polyetheretherketone (PEEK) lining |
| Power Supply | 18~36VDC |
| Power Consumption | ≤5W |
| Electrical Interfaces | M12-4 pole connector |
| Process Connections | Clamp |
| Accuracy | ±0.5% |
| Repeatability | ≤0.1% |
| Medium Temperature | 0℃~100℃ |
| Process Pressure | -0.1MPa~6.3MPa |
| Conductivity | ≥2μS/cm |
| Ambient Temperature | -20℃~60℃ |
| Storage Temperature | -25℃~85℃ |
| Relative Humidity | 5%RH~95%RH |
| Protection Class | IP67 |
Flow Meter Flow Range
| Nominal Diameter | Flow Rate Range |
| DN6 | 6L/h~900L/h (0.006m3/h~0.9m3/h) |
| DN10 | 15L/h~2250L/h (0.015m3/h~2.25m3/h) |
| DN15 | 40L/h~6000L/h (0.04m3/h~6m3/h) |
| DN20 | 60L/h~9000L/h (0.06m3/h~9m3/h) |
| DN25 | 100L/h~15000L/h (0.1m3/h~15m3/h) |
| DN32 | 150L/h~2250L/h (0.15m3/h~22.5m3/h) |
| DN40 | 250L/h~37500L/h (0.25m3/h~37.5m3/h) |
| DN50 | 400L/h~60000L/h (0.4m3/h~60m3/h) |
| DN65 | 500L/h~75000L/h (0.5m3/h~75m3/h) |
Dimension (unit: mm)
| Size (mm) | A (mm) | B (mm) | C (mm) | D (mm) | E (mm) | F (mm) | K (clamp) (mm) |
| DN6 | 150 | 70 | 90 | 6 | M12×1 | 38.5 | 50.5 |
| DN10 | 150 | 70 | 90 | 10 | M12×1 | 38.5 | 50.5 |
| DN15 | 150 | 70 | 90 | 15 | M12×1 | 38.5 | 50.5 |
| DN20 | 150 | 70 | 90 | 20 | M12×1 | 45 | 50.5 |
| DN25 | 150 | 76 | 90 | 25 | M12×1 | 45 | 50.5 |
| DN32 | 150 | 76 | 100 | 32 | M12×1 | 57.5 | 50.5 |
| DN40 | 200 | 89 | 100 | 40 | M12×1 | 57.5 | 64 |
| DN50 | 200 | 95 | 100 | 50 | M12×1 | 57.5 | 77.5 |
| DN65 | 200 | 95 | 100 | 65 | M12×1 | 57.5 | 91 |
Detail
- Flow Meter Details
- Infrared Remote Control Details
Flow Meter Application
Tips: How do I verify if the flow meter is outputting a signal?
Check power supply: Ensure the flow meter is receiving the proper 18-36VDC power supply. A lack of power or an improper voltage can prevent the meter from functioning.
Verify connections: Double-check the electrical connections-particularly the M12-4 pole connector and any communication outputs (4-20mA, RS485). Loose or disconnected wires can result in no signal.
Inspect communication settings: If using the RS485 communication output with MODBUS-RTU, ensure the communication settings are correctly configured, matching your control system’s requirements.
