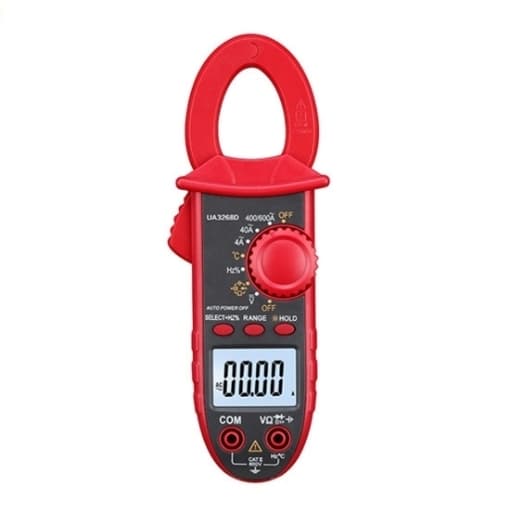

Selling multifunctional miniature clamp meter, used to measure AC/DC current 0-600A, AC/DC voltage 0-600V, LED backlight display, easy to read, support data preservation, fine jaw structure design, good measurement repeatability.

Details

Data hold key

Used to lock the current measured value.
When you need to keep the real-time value, press the HOLD key to judge and record.
Function range knob, precise gear position.

LED display screen

High definition backlight for display screen, low voltage display.
Wear resistant silicone shell with long service life.
Pen holder, smooth and stable.

Specifications

Basics	Model	T-UA3268D
	Weight	160g
	Size (LWH)	1855125mm
	Display	4 digit LCD display
	Maximum display value	5999
	Power supply	DC 3V, 2 AAA batteries
	Maximum jaw opening size	28mm
	Woring environment	Temperature: 5℃~35℃ (41℉~95℉), relative humidity:＜75%
	Storage temperature	-10℃~+50℃ (14℉~122℉)
	Accessories	A pair of test probes, a pair of temperature probes, a user manual, 2 AAA batteries
Functions	Item	Range	Accuracy
	DC current	600A	±(2.0%+10 digits)
	AC current	600A	±(2.0%+10 digits)
	Inrush current	600A	±(2.0%+10 digits)
	DC voltage	600V	±(0.8%+5 digits)
	AC voltage	600V	±(1.2%+5 digits)
	Resistance	60MΩ	±(0.8%+3 digits)
	Frequency	10MHz	±(0.5%+3 digits)
	Capacitance	100mF	±(3.0%+5 digits)
	Temperature	-50℃~+1000℃ (-58℉~1832℉)	±(1.0%+4 digits)
Special functions	TRMS	True RMS measurement for sine wave signal
	Diode test	Display forward voltage value of diode
	On-off buzzer	Continuity test buzzer
	Data hold	Hold the reading when taking a measurement
	Automatic power off	Automatic power off when 15 minutes no operation
	Overload protection	Overload protection for 100% range
	Range selection	Automatic range selection and manual range selection
	Backlight	Backlight for LCD display
	Inspection light	Inspection light for clamp operation

Applications

The micro clamp meter is one of the essential test tools in daily maintenance work. It is mainly used to test voltage, current, frequency and other related parameters, requiring it to have higher test resolution, test accuracy and more test functions. Applications mainly include industrial control, industrial equipment, commercial, industrial and residential electrical systems, and HVAC.
