Name: Mini Wi-Fi OBD2 Scanner, Android/IOS
Brand: Tool
SKU: 939
Availability: InStock

Mini Wi-Fi OBD2 Scanner, Android/IOS

Size chart

Clothing Size Conversion Chart
Category	US	EU	UK	Chest (in)	Waist (in)	Hips (in)
Men	XS	44	34	32-34	26-28	33-35
	S	46	36	34-36	28-30	35-37
	M	48	38	38-40	32-34	39-41
	L	50	40	42-44	36-38	43-45
	XL	52	42	46-48	40-42	47-49
Women	XS	32	6	31-32	24-25	33-34
	S	34	8	33-34	26-27	35-36
	M	36	10	35-36	28-29	37-38
	L	38-40	12-14	37-39	30-32	39-41
	XL	42	16	40-42	33-35	42-44
Youth	XS	128	7	26-28	23-24	26-28
	S	134	8	28-30	24-25	28-30
	M	140	10	30-32	25-26	30-32
	L	146	12	32-34	26-27	32-34
	XL	152	14	34-36	27-28	34-36

Pants Size Conversion Chart
Category	US	EU	UK	Waist (in)	Hip (in)	Inseam (in)
Men	28	44	28	28	34	30
	30	46	30	30	36	31
	32	48	32	32	38	32
	34	50	34	34	40	33
	36	52	36	36	42	34
Women	0	32	4	24	34	30
	2	34	6	25	35	30
	4	36	8	26	36	31
	6	38	10	27	38	32
	8	40	12	28	40	32

Shoes Size Conversion Chart
Category	US	EU	UK	Foot Length (in)
Men	6	39	5.5	9.25
	7	40	6.5	9.625
	8	41	7.5	10
	9	42	8.5	10.25
	10	43	9.5	10.625
	11	44	10.5	11
	12	45	11.5	11.25
	13	46	12.5	11.625
Women	5	35	2.5	8.5
	6	36	3.5	8.875
	7	37	4.5	9.25
	8	38	5.5	9.625
	9	39	6.5	10
	10	40	7.5	10.25
	11	41	8.5	10.625
	12	42	9.5	11
M (Unisex)	5	37	4.5	8.75
	6	38	5.5	9
	7	39	6.5	9.5
	8	40	7.5	10
	9	41	8.5	10.25
	10	42	9.5	10.625
	11	43	10.5	11
	12	44	11.5	11.25

35 People watching this product now!

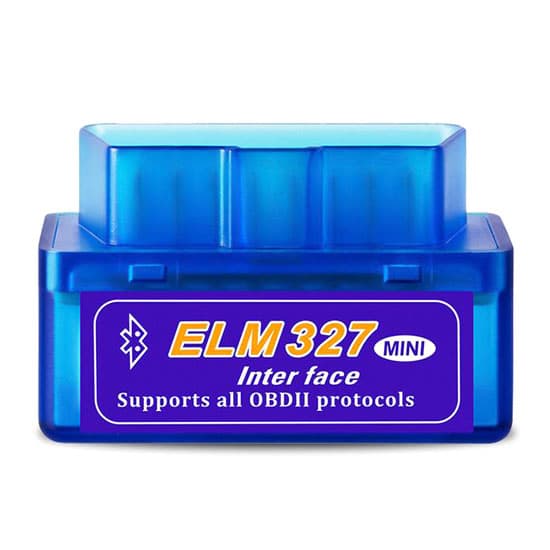

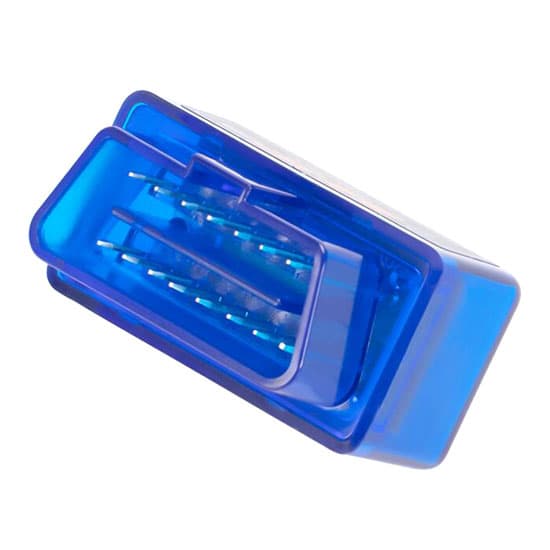

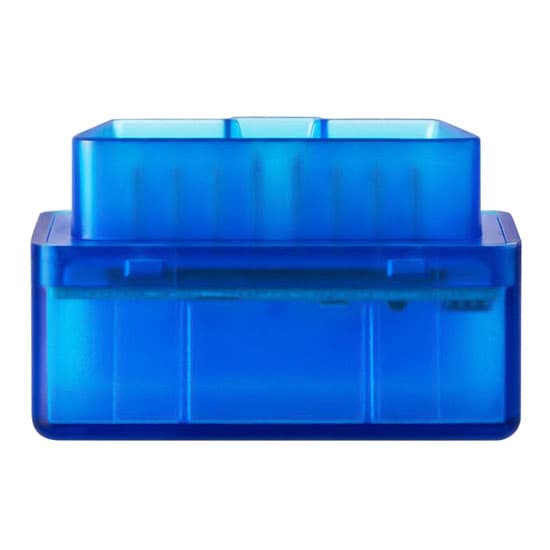

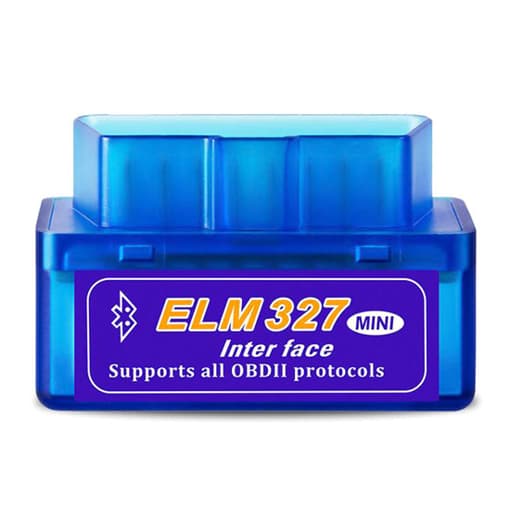

Mini Wi-Fi OBD2 scanner has 18 diagnostic functions, supporting all OBDII protocols.

Specification:

Model	T-DGT-SC03-L03
Weight	36g

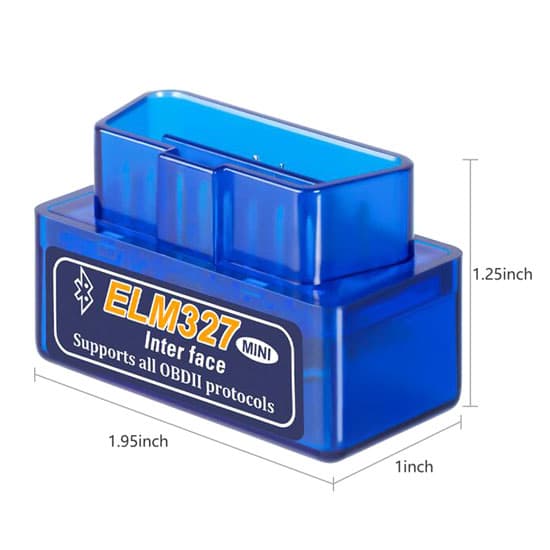

Size	1.813.5 inch
Communication	Wi-Fi (25m communication distance)
SSID	WiFiOBD
IP	192.168.0.10
Subnet	255.255.255.0
Port	35000
Antenna	Internal
Power consumption	0.75 Watt (With Power Switch)
Wi-Fi standard	802.11a/b/g
Shell material	Automotive-grade plastic
Support OBDII protocols	ISO15765-4 (CAN) ISO14230-4 (KWP2000) ISO9141-2 J1850 VPW J1850 PWM
Function	1) Read diagnostic trouble codes, both generic and manufacturer-specific, and display their meaning (over 3000 generic code definitions in the database). 2) Clear trouble codes and turn off the MIL (“Check Engine” light) 3) Display current sensor data, including: 4) Engine RPM 5) Calculated load value 6) Coolant temperature 7) Fuel system status 8) Vehicle speed 9) Short term fuel trim 10) Long term fuel trim 11) Intake manifold pressure 12) Timing advance 13) Intake air temperature 14) Air flow rate 15) Absolute throttle position 16) Oxygen sensor voltages/associated short term fuel trims 17) Fuel system status 18) Fuel pressure

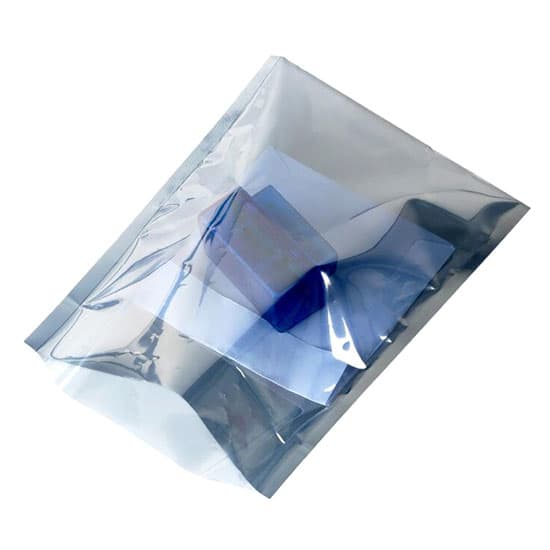

Packing included	1 * mini Wi-Fi OBD2 scanner 1 * CD-ROM
