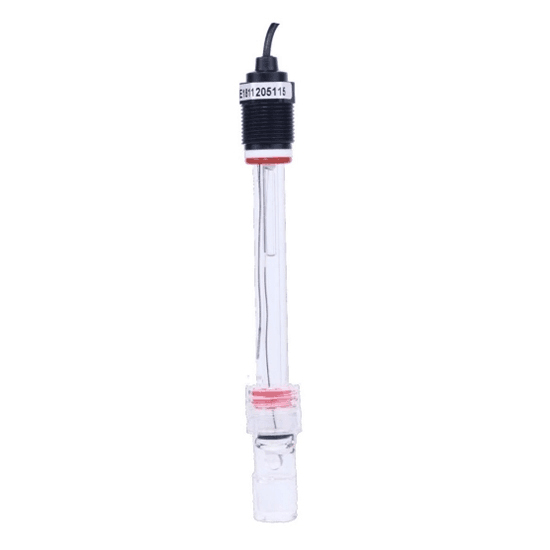

The shell of the pH meter electrode is constructed from special glass, providing durability and resistance to harsh chemical conditions. It comes with a direct lead connection and customizable cable lengths of 5m, 10m, 15m, or other lengths under 50m, depending on your specific requirements. With a service life of 6 months, this electrode is ideal for continuous pH monitoring in industrial, laboratory, or environmental applications.

Specification

Model	T-PHME-PHETE-6002
Weight	1kg
Measuring range	0-14pH
Accuracy	0.02pH
Temperature range	0-100℃
Temperature compensation *	Internal temperature sensor (NTC 10K)
Zero position	7±0.3pH
Compressive strength	0.6MPa
Slope	≥98%
Installation size	PG13.5 pipe thread
Shell material	Special glass
Connection	Direct lead
Cable length *	5m/10m/15m, or other length less than 50m (need customization)
Service life	6 months

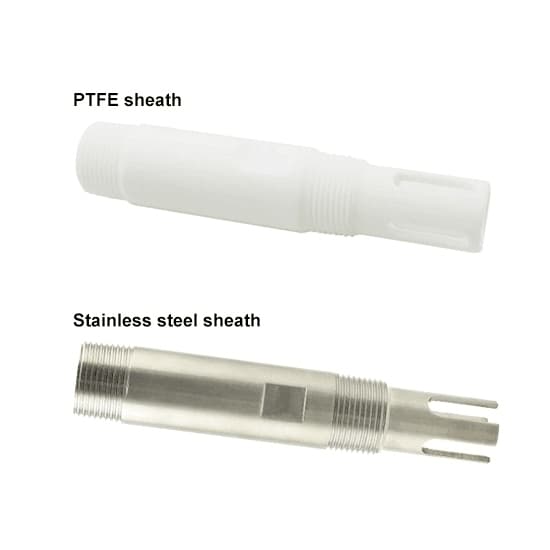

Specification of sheaths (optional accessories):

Model	T-PHETE-A1	T-PHETE-A2
Internal thread	PG13.5 pipe thread	PG13.5 pipe thread
External thread	3/4NPT	3/4NPT
Material	PTFE (Polytetrafluoroethylene)	Stainless steel

Document

pH Electrode Catalog

Feature

The electrode adopts a ceramic sand core liquid junction and features a dual liquid junction design, significantly extending its service life.
Constructed with special glass, the shell is resistant to high temperatures as well as both acids and alkalis.
The gel electrolyte is maintenance-free, eliminating the need for additional electrolyte refills.
Available accessories include a PTFE sheath or stainless steel sheath, enhancing the electrode’s resistance to acidic and alkaline environments while simplifying installation.
Equipped with a high-quality, low-noise cable that supports long-distance signal transmission up to 60 meters.

The pH electrod installation methods:

1. Side wall installation (*The pH electrode must be at an angle of 15 degrees to the liquid surface. Otherwise, it will affect the normal use of the pH electrode.)
2. Flange mounted at the top
3. Pipe installation
4. Top installation
5. Submersible installation
6. Flow-through installation

Tips: Is this electrode suitable for outdoor use?

While the electrode is designed for harsh chemical environments, if used outdoors, it is recommended to protect the electrode and its connections from extreme weather conditions. The electrode’s materials can resist harsh chemicals but may still require protection from direct environmental exposure.

Temperature Compensation *

No temperature compensation

Internal temperature sensor (NTC 10K)

Cable Length *

10m

15m
