Name: Pistol Type Air Powered Rivet Gun, 3/32" - 3/16", 90 PSI
Brand: Tool
SKU: 1177
Availability: InStock

Pistol Type Air Powered Rivet Gun, 3/32″ – 3/16″, 90 PSI

Size chart

Clothing Size Conversion Chart
Category	US	EU	UK	Chest (in)	Waist (in)	Hips (in)
Men	XS	44	34	32-34	26-28	33-35
	S	46	36	34-36	28-30	35-37
	M	48	38	38-40	32-34	39-41
	L	50	40	42-44	36-38	43-45
	XL	52	42	46-48	40-42	47-49
Women	XS	32	6	31-32	24-25	33-34
	S	34	8	33-34	26-27	35-36
	M	36	10	35-36	28-29	37-38
	L	38-40	12-14	37-39	30-32	39-41
	XL	42	16	40-42	33-35	42-44
Youth	XS	128	7	26-28	23-24	26-28
	S	134	8	28-30	24-25	28-30
	M	140	10	30-32	25-26	30-32
	L	146	12	32-34	26-27	32-34
	XL	152	14	34-36	27-28	34-36

Pants Size Conversion Chart
Category	US	EU	UK	Waist (in)	Hip (in)	Inseam (in)
Men	28	44	28	28	34	30
	30	46	30	30	36	31
	32	48	32	32	38	32
	34	50	34	34	40	33
	36	52	36	36	42	34
Women	0	32	4	24	34	30
	2	34	6	25	35	30
	4	36	8	26	36	31
	6	38	10	27	38	32
	8	40	12	28	40	32

Shoes Size Conversion Chart
Category	US	EU	UK	Foot Length (in)
Men	6	39	5.5	9.25
	7	40	6.5	9.625
	8	41	7.5	10
	9	42	8.5	10.25
	10	43	9.5	10.625
	11	44	10.5	11
	12	45	11.5	11.25
	13	46	12.5	11.625
Women	5	35	2.5	8.5
	6	36	3.5	8.875
	7	37	4.5	9.25
	8	38	5.5	9.625
	9	39	6.5	10
	10	40	7.5	10.25
	11	41	8.5	10.625
	12	42	9.5	11
M (Unisex)	5	37	4.5	8.75
	6	38	5.5	9
	7	39	6.5	9.5
	8	40	7.5	10
	9	41	8.5	10.25
	10	42	9.5	10.625
	11	43	10.5	11
	12	44	11.5	11.25

69 People watching this product now!

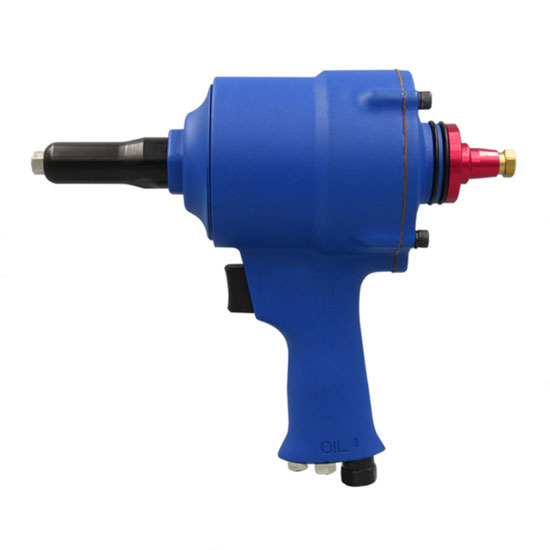

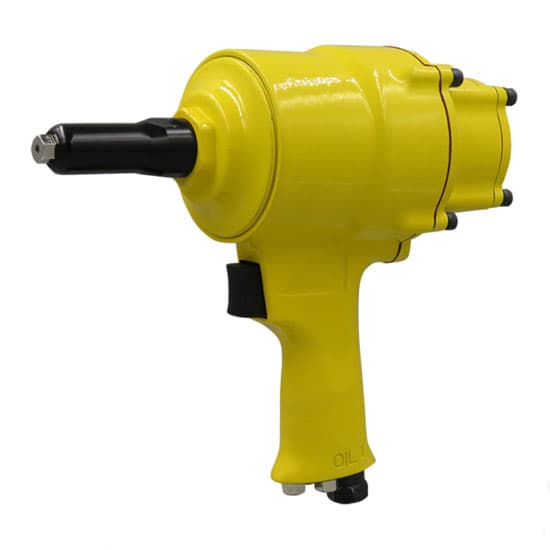

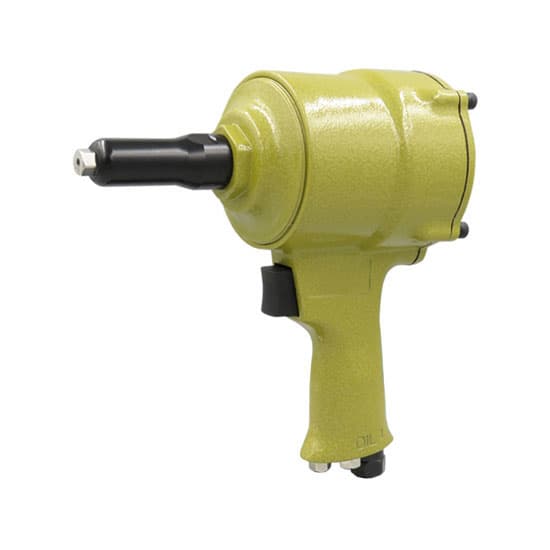

We provide standard pistol type air rivet gun, automatic suction pistol type air rivet gun and double cylinder pistol type air rivet gun for your choices. The original diameter of the nozzle is 3/16″ (4.8mm). 3/32″ (2.4mm), 1/8″ (3.2mm) and 5/32″ (4.0mm) nozzles are installed under the handle. You could replace different sizes of nozzles according to the diameter of rivets. A combination wrench is included in the package to help you change the nozzle.
Our low price air powered riveter is a professional fastening tool designed for plate metals, pipe materials, cabinets, cases among other things. This rivet tool is as well as widely used in home decoration, luggage production, automobile manufacture, and electrical appliance assembly.

Features

Pistol type air powered riveter adopts high quality alloy material, which is light weight and easy to operate. The ergonomic pistol grip is comfortable to hold.
Automatic suction pneumatic rivet tool can grab rivets automatically into the nozzle, which improves your work efficiency. You can operate it just with one hand.
Double hydraulic cylinder air pop riveter has strong pulling power with long stroke, improving your work efficiency.
Our air hydraulic rivet guns have stable performance and professional quality.

Specification

Model	T-APRG-S	T-APRG-AS	T-APRG-DC
Type	Standard Pistol Type Air Rivet Gun	Automatic Suction Pistol Type Air Rivet Gun	Double Cylinder Pistol Type Air Rivet Gun
Rivet Capacity	Aluminum Rivet: 3/32″, 1/8″, 5/32″, 3/16″ (2.4mm, 3.2mm, 4.0mm, 4.8mm)	Aluminum Rivet: 3/32″, 1/8″, 5/32″, 3/16″ (2.4mm, 3.2mm, 4.0mm, 4.8mm)	Aluminum Rivet: 3/32″, 1/8″, 5/32″, 3/16″ (2.4mm, 3.2mm, 4.0mm, 4.8mm)
Rivet Capacity	Steel Rivet: 3/32″, 1/8″ (2.4mm, 3.2mm)	Steel Rivet: 3/32″, 1/8″ (2.4mm, 3.2mm)	Steel Rivet: 3/32″, 1/8″, 5/32″ (2.4mm, 3.2mm, 4.0mm)
Power Source	Air Powered	Air Powered	Air Powered
Working Pressure	90 PSI (0.62 MPa)	90 PSI (0.62 MPa)	90 PSI (0.62 MPa)
Air Inlet Size	1/4 inch (6.35mm)	1/4 inch (6.35mm)	1/4 inch (6.35mm)
Air Consumption	5 CFM	5 CFM	5 CFM
Pulling Power	6800N	6800N	7800N
Maximum Stroke	18mm	18mm	18mm
Body Dimension	200m * 210mm	230m * 205mm	200m * 210mm
Weight	1.46kg	1.56kg	1.75kg
Package Included	1 PC Pistol Type Pneumatic Riveter 1 PC Combination Wrench 1 PC Rivet Container	1 PC Pistol Type Pneumatic Riveter 1 PC Combination Wrench 1 PC Rivet Container	1 PC Pistol Type Pneumatic Riveter 1 PC Combination Wrench 1 PC Rivet Container

Details

Diameter of Nozzle

Tips: Construction of pistol type air powered rivet gun

Pistol type air powered rivet gun constructs with air cylinder, matching, top sleeve, jaws, large and small piston rods, handle and trigger. When you press the starting switch, the compressed air into the hydraulic cylinder will push the piston rod and move the jaws to the left. At the same time, it applies axial tension gradually to the rivet. The cylinder body reacts with riveting sleeve and squeezes it to deform, thus the connecting plate is compacted and the piston rod is held tightly. With the tension increasing, the mandrel of the rivet is pulled down. Thus riveting is completed.
