Name: Pneumatic Grease Gun 600CC
Brand: Tool
SKU: 953
Availability: InStock

Pneumatic Grease Gun 600CC

Size chart

Clothing Size Conversion Chart
Category	US	EU	UK	Chest (in)	Waist (in)	Hips (in)
Men	XS	44	34	32-34	26-28	33-35
	S	46	36	34-36	28-30	35-37
	M	48	38	38-40	32-34	39-41
	L	50	40	42-44	36-38	43-45
	XL	52	42	46-48	40-42	47-49
Women	XS	32	6	31-32	24-25	33-34
	S	34	8	33-34	26-27	35-36
	M	36	10	35-36	28-29	37-38
	L	38-40	12-14	37-39	30-32	39-41
	XL	42	16	40-42	33-35	42-44
Youth	XS	128	7	26-28	23-24	26-28
	S	134	8	28-30	24-25	28-30
	M	140	10	30-32	25-26	30-32
	L	146	12	32-34	26-27	32-34
	XL	152	14	34-36	27-28	34-36

Pants Size Conversion Chart
Category	US	EU	UK	Waist (in)	Hip (in)	Inseam (in)
Men	28	44	28	28	34	30
	30	46	30	30	36	31
	32	48	32	32	38	32
	34	50	34	34	40	33
	36	52	36	36	42	34
Women	0	32	4	24	34	30
	2	34	6	25	35	30
	4	36	8	26	36	31
	6	38	10	27	38	32
	8	40	12	28	40	32

Shoes Size Conversion Chart
Category	US	EU	UK	Foot Length (in)
Men	6	39	5.5	9.25
	7	40	6.5	9.625
	8	41	7.5	10
	9	42	8.5	10.25
	10	43	9.5	10.625
	11	44	10.5	11
	12	45	11.5	11.25
	13	46	12.5	11.625
Women	5	35	2.5	8.5
	6	36	3.5	8.875
	7	37	4.5	9.25
	8	38	5.5	9.625
	9	39	6.5	10
	10	40	7.5	10.25
	11	41	8.5	10.625
	12	42	9.5	11
M (Unisex)	5	37	4.5	8.75
	6	38	5.5	9
	7	39	6.5	9.5
	8	40	7.5	10
	9	41	8.5	10.25
	10	42	9.5	10.625
	11	43	10.5	11
	12	44	11.5	11.25

63 People watching this product now!

600cc pneumatic grease gun equips a 9m air pipe, continuous-shot working mode, safe working pressure 12000 PSI.

Specification:

Model	T-PGG-600CC
Shipping weight	3kg
Capacity	600cc
Safe working pressure	12000 PSI
Air pressure	5-8kg, cannot exceed 9kg
Types of grease	1#oil, 2#oil
Working mode	Continuous-shot
Material of gun body	Steel pipe
Grease gun diameter	56mm
Grease gun length	450mm
Rubber tube length	270mm
Metal tube length	130mm
Air pipe length	9m

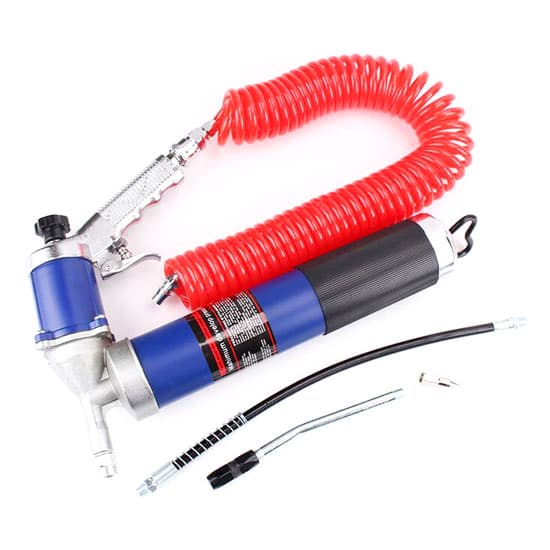

Packing included	1 * grease gun 1 * rubber tube 1 * metal tube 1 * explosion-proof flat nozzle 1 * sharp nozzle 1 * air pipe

Tips: Operation steps of pneumatic grease gun loading grease
First, pull the pressure piston to the upper end and quickly release it. Repeat several times to accumulate pressure to turn the rubber ring into the ferrule. Push the piston bolt to the end, the gun head and the grease bucket must be connected tightly and then press the vent valve several times to release the air, so that pneumatic grease gun can be used normally. Press the hand lever to the end during operation. When using it every day, a few drops of lubricating oil for pneumatic tools must be applied to the air inlet.
The following are the operation steps for filling the grease gun:

Pull the piston rod out to the end.
Unscrew the gas cylinder.
Unscrew the nuts and screws with a wrench and screwdriver.
The spring will automatically pop up after loosening the screw.
Lubricate the piston rod.
Restoration spring and piston.
Tighten the screws.
Pull the piston rod out to the end.
Push the entire raw material tank.
Unplug the lid of the raw material tank.
Load the raw materials, splice them and tighten them.
Push the piston rod to expel the air in the raw material barrel.
Connect to the air transfer pipe of the air compressor, and then normal operation can be done.
