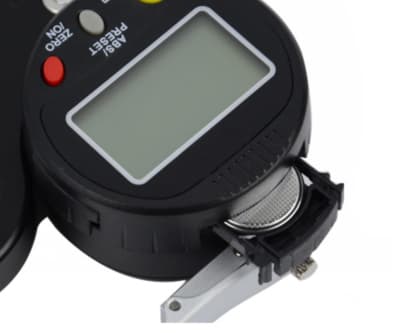

Buy high-quality digital thickness gauge on Tool.com. Our digital display thickness gauge with a jaw depth of 30mm and a resolution of 0.01mm has a built-in 3V button battery. The battery is easy to disassemble and easy to replace, allowing you to measure workpieces more easily. Come and get started.
Specification
| Model | T-XH103 |
| Measurement Range | 0-10mm |
| Resolution | 0.01mm |
| Accuracy | ±0.02mm |
| Probe Diameter | 10mm |
| Jaw Depth | 30mm |
| Probe Material | Ceramic |
| Measuring Pressure | Below 2.4N |
Application
Digital thickness gauges have a wide range of applications across various industries where precise measurement of material thickness is essential. Here are some of the common applications of digital thickness gauges:
- Manufacturing: In the manufacturing industry, digital thickness gauges are used to measure the thickness of materials during production. This includes measuring the thickness of metal sheets, plastic films, and other materials used in the production of various products.
- Automotive: In the automotive industry, digital thickness gauges are used to measure the thickness of coatings and paint on car bodies. This helps ensure that the coating is applied uniformly, providing adequate protection against rust and other environmental factors.
- Aerospace: In the aerospace industry, digital thickness gauges are used to measure the thickness of coatings and platings on aircraft components. This is critical to ensure the safety and reliability of the aircraft and to detect any defects that could compromise the integrity of the components.
- Medical: In the medical industry, digital thickness gauges are used to measure the thickness of tissues and organs during surgeries. This helps surgeons ensure that they are not cutting too deep, which could cause damage to vital organs.
- Electronics: In the electronics industry, digital thickness gauges are used to measure the thickness of thin films and coatings on electronic components. This helps ensure that the components are working efficiently and that the coatings are providing adequate protection against environmental factors.
Digital Thickness Gauge Diagram
Tips: How does a digital thickness gauge work?
Digital thickness gauges work based on the principle of a linear variable differential transformer (LVDT), which uses an electromechanical transducer to measure linear displacement. The probe of the gauge is connected to the LVDT, which converts the displacement into an electrical signal. This signal is then amplified and processed by a microprocessor, which displays the thickness reading on the digital screen. Some digital thickness gauges also use the principle of electromagnetic induction and eddy current to measure coating and plating thickness.
