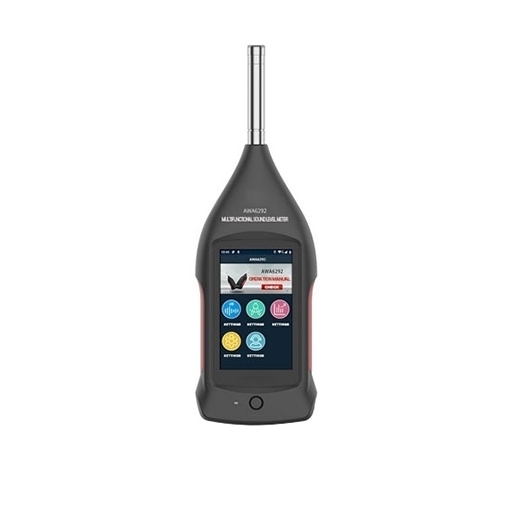

Portable Sound Level Meter, 20 to 143 dB
Original price was: $7,868.99.$786.99Current price is: $786.99.
| Category | US | EU | UK | Chest (in) | Waist (in) | Hips (in) |
|---|---|---|---|---|---|---|
| Men | XS | 44 | 34 | 32-34 | 26-28 | 33-35 |
| S | 46 | 36 | 34-36 | 28-30 | 35-37 | |
| M | 48 | 38 | 38-40 | 32-34 | 39-41 | |
| L | 50 | 40 | 42-44 | 36-38 | 43-45 | |
| XL | 52 | 42 | 46-48 | 40-42 | 47-49 | |
| Women | XS | 32 | 6 | 31-32 | 24-25 | 33-34 |
| S | 34 | 8 | 33-34 | 26-27 | 35-36 | |
| M | 36 | 10 | 35-36 | 28-29 | 37-38 | |
| L | 38-40 | 12-14 | 37-39 | 30-32 | 39-41 | |
| XL | 42 | 16 | 40-42 | 33-35 | 42-44 | |
| Youth | XS | 128 | 7 | 26-28 | 23-24 | 26-28 |
| S | 134 | 8 | 28-30 | 24-25 | 28-30 | |
| M | 140 | 10 | 30-32 | 25-26 | 30-32 | |
| L | 146 | 12 | 32-34 | 26-27 | 32-34 | |
| XL | 152 | 14 | 34-36 | 27-28 | 34-36 |
| Category | US | EU | UK | Waist (in) | Hip (in) | Inseam (in) |
|---|---|---|---|---|---|---|
| Men | 28 | 44 | 28 | 28 | 34 | 30 |
| 30 | 46 | 30 | 30 | 36 | 31 | |
| 32 | 48 | 32 | 32 | 38 | 32 | |
| 34 | 50 | 34 | 34 | 40 | 33 | |
| 36 | 52 | 36 | 36 | 42 | 34 | |
| Women | 0 | 32 | 4 | 24 | 34 | 30 |
| 2 | 34 | 6 | 25 | 35 | 30 | |
| 4 | 36 | 8 | 26 | 36 | 31 | |
| 6 | 38 | 10 | 27 | 38 | 32 | |
| 8 | 40 | 12 | 28 | 40 | 32 |
| Category | US | EU | UK | Foot Length (in) |
|---|---|---|---|---|
| Men | 6 | 39 | 5.5 | 9.25 |
| 7 | 40 | 6.5 | 9.625 | |
| 8 | 41 | 7.5 | 10 | |
| 9 | 42 | 8.5 | 10.25 | |
| 10 | 43 | 9.5 | 10.625 | |
| 11 | 44 | 10.5 | 11 | |
| 12 | 45 | 11.5 | 11.25 | |
| 13 | 46 | 12.5 | 11.625 | |
| Women | 5 | 35 | 2.5 | 8.5 |
| 6 | 36 | 3.5 | 8.875 | |
| 7 | 37 | 4.5 | 9.25 | |
| 8 | 38 | 5.5 | 9.625 | |
| 9 | 39 | 6.5 | 10 | |
| 10 | 40 | 7.5 | 10.25 | |
| 11 | 41 | 8.5 | 10.625 | |
| 12 | 42 | 9.5 | 11 | |
| M (Unisex) | 5 | 37 | 4.5 | 8.75 |
| 6 | 38 | 5.5 | 9 | |
| 7 | 39 | 6.5 | 9.5 | |
| 8 | 40 | 7.5 | 10 | |
| 9 | 41 | 8.5 | 10.25 | |
| 10 | 42 | 9.5 | 10.625 | |
| 11 | 43 | 10.5 | 11 | |
| 12 | 44 | 11.5 | 11.25 |
The new handheld sound level meter integrates a number of advanced features, including total value integration, statistical integration, and 24-hour automatic monitoring. The touch screen display interface is simple and intuitive, easily realizing real-time noise monitoring. It supports real-time display and data analysis of a variety of noise metrics, such as Lxyp, Lxeq, T, and so on. The built-in 16G storage capacity, which can be expanded to 64G, provides powerful data storage and management functions to ensure data security and integrity for long-time measurement tasks.
Specification
| Model | T-SLM-AWA-6292 |
| Microphone Model | Pre-polarization test condenser microphone |
| Measuring Range | 20 dB(A)～143 dB(A) |
| Frequency Range | 10 Hz～20 kHz |
| Frequency Weighting | Parallel (simultaneous) A, C, Z for each channel |
| Time Weighting | Parallel (simultaneous) F, S, I, Peak for each channel |
| Monitor | Touch screen |
| Main Measurement Functions | Total value integration, statistical integration, 24-hour automatic monitoring, 1/1 OCT, 1/3 OCT, FFT analysis, indoor measurement, reverberation time, STI, etc. |
| Main Measurement Index | Lxyp, Lxeq, T, Lxeq, t, Lxmax, Lxmin, LxN, SD, SEL, Lxpeak, etc. (Note: x is A, C, Z; y is F, S, I; N is 5, 10, 50, 90 , 95) |
| Main Display Content | Real-time measurement and display of more than 9 measurement indicators, statistical distribution graph, cumulative distribution graph, and 24-hour distribution graph |
| Data Storage Function | 16G internal storage, maximum support 64G TF card |
| Communication Interface | 4G, WIFI, Bluetooth, serial port, USB |
| Protection Level | IP65 (without microphone) |
| Battery Capacity | 10000mAh Lithium battery |
| Power Supply | 9V DC power supply (20W fast charge) |
| Weight | 910g |
| Operating Temperature | -40 ℃～40 ℃ |
| Warranty | 12 Months |
| Dimension | 28mm*95mm*40mm |
Decibel Sound Level Meter Features
- The portable sound level meter is equipped with a 4.3-inch high-definition touch screen, which is intuitive and convenient to operate, and the measurement data can be seen at a glance.
- Adopt advanced data encryption technology, support long time storage and prevent data loss or leakage.
- Built-in 20W power fast charging function, to ensure long time continuous work.
- Multiple connection modes, integrated 4G, WiFi, Bluetooth, GPS, USB and other interfaces, which is convenient for users to realize remote monitoring, data transmission and multi-scenario use.
Decibel Sound Level Meter Details
Decibel Sound Level Meter Applications
Tips: What is the measurement range of a portable sound level meter?
Most portable sound level meters have a measurement range of 20 dB to 140 dB, which enables them to effectively measure noise levels from quiet environments to very noisy environments. If there are special needs, a sound level meter with a wider measuring range can be chosen to ensure that the required number of decibels is covered.
