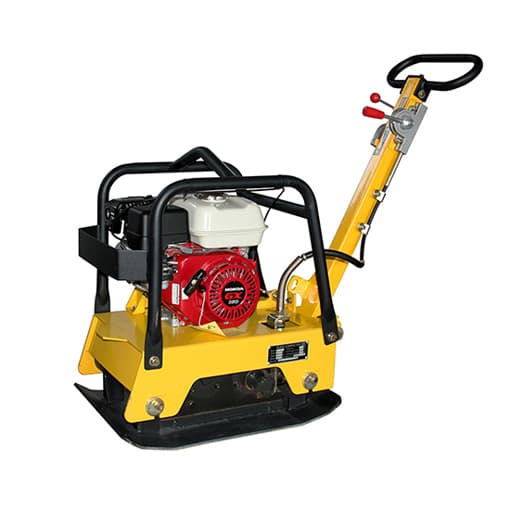

Factory price 30 kN impact force, 9 HP engine reversible vibration plate compactor is able to forward and backward hydraulic control, which is flexible and convenient. This plate compactor machine suited for a variety of compaction applications due to high travel speeds and ease of maneuverability.

Features

Powerful 9 HP Honda GX270 gasoline engine supports 6744 lbf of centrifugal force.
Engine type is forced air-cooled, 4-stroke, single cylinder engine.
Large shok mounts reduce vibration to the handle.
Optimal for both reversing and forwarding compaction over mixed soils or asphalt.
Compacting plate is 730 x 370 mm (28.74″ x 14.57″) to cover more ground in less time.
More powerful force, better compaction effect, lower maintenance cost and long life time.
Delivers 4000 vibrations per minute to achieve results quickly.
Compaction of soil, debris and aggregate materials up to 19 inch.

Specification

Model	T-C160H
Centrifugal Force	30 kN (6744 lbf)
Frequency	4000 VPM (Vibrations per Minute)
Engine Type	Air-cooled, 4-stroke, single cylinder
Brand of Engine	Honda GX270 gasoline engine
Power of Engine	6.6 kW (9 HP)
Plate Size	730 x 370 mm (28.74 x 14.57 inch)
Travel Speed	250 mm/s (10 inch/s)
Compaction Depth	500 mm (19 inch)
Efficiency	570 m²/hr (6100 ft²/hr)
Weight	160 kg
Dimension	860 x 570 x 930 mm (33.86 x 22.44 x 36.61 inch)
Certificate	CE, ISO900
Warranty	1 year

5 tips for operating 30kN 9HP reversible vibration plate compactor

Don’t operate the 30kN 9HP vibrating plate compactor outside the scope of use or in areas where explosions may occur.
Don’t operate the plate compactor when there is no safety and protection device or the device is not in the preset position.
The reversible vibrating plate compator should be operated on a stable condition. The inclination angle of the vibrating plate ram should not exceed 20 degrees when it is working, otherwise it will cause fuel spillage and malfunction.
When retreating, the operator should control the machine through the guide handle on the side, so as not to trap people between the machine and possible obstacles. Be especially careful when the ground is uneven or rough materials are compacted. When operating the machine under this condition, you should stand firm.
When placing the vibrating plate compactor, avoid tipping, rolling and falling.
