55 People watching this product now!

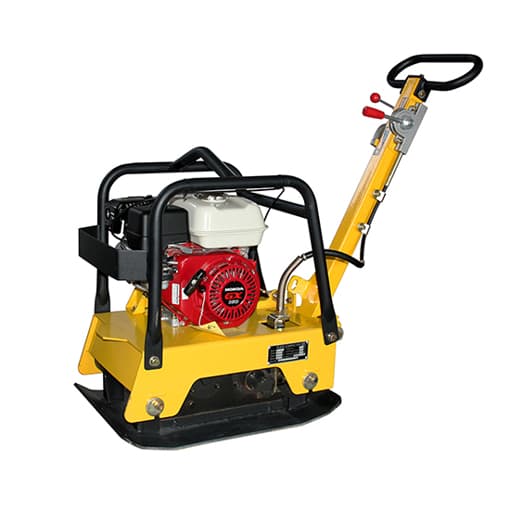

Cheap reversible vibration plate compactor machine with 35 kN centrifugal force, high performance 9 HP Honda engine, easy to start up. Heavy duty shock mounts to withstand harsh operating environment, is your best choice for high production compaction application involving granular soils, asphalt.

Features

Powerful 9 HP Honda GX270 gasoline engine supports 7868 lbf of centrifugal force.
Engine type is forced air-cooled, 4-stroke, single cylinder engine.
Large shok mounts reduce vibration to the handle.
Optimal for both reversing and forwarding compaction over mixed soils or asphalt.
Compacting plate is 890 x 670 mm (35.04″ x 26.38″) to cover more ground in less time.
More powerful force, better compaction effect, lower maintenance cost and long life time.
Delivers 3750 vibrations per minute to achieve results quickly.
Compaction of soil, debris and aggregate materials up to 34 inch.

Specification

Model	T-C270H
Centrifugal Force	35 kN (7868 lbf)
Frequency	3750 VPM (Vibrations per Minute)
Engine Type	Air-cooled, 4-stroke, single cylinder
Brand of Engine	Honda GX270 gasoline engine
Power of Engine	6.6 kW (9 HP)
Plate Size	890 x 670 mm (35.04 x 26.38 inch)
Travel Speed	350 mm/s (14 inch/s)
Compaction Depth	900 mm (34 inch)
Efficiency	650 m²/hr (6950 ft²/hr)
Weight	270 kg
Dimension	1780 x 670 x 900 mm (70.08 x 26.38 x 35.43 inch)
Certificate	CE, ISO900
Warranty	1 year

Tips: 35kN 9HP reversible vibration plate compactor application

A plate compactor is a portable compaction tool that uses high-frequency vibration energy to generate compaction strength for compaction operations. Our 35kN 9HP reversible vibration plate compactor is widely used in the construction of highways, railways, water conservancy and other projects. In the construction of expressways, it can be used for the roads and culverts, the compaction of road surfaces, the repair and leveling of road maintenance. It is one of the indispensable equipment in road construction.

This plate compactor is forbidden to work on watery roads (especially clay), it is not suitable for such roads. It cannot level the roads with many stones, especially large stones. It is mainly used to compact relatively flat roads, and is not suitable for working environments that require very large ramming capabilities.
