Name: Rotary Hammer with SDS Drill, 500W, 20/22mm
Brand: Tool
SKU: 62
Availability: InStock

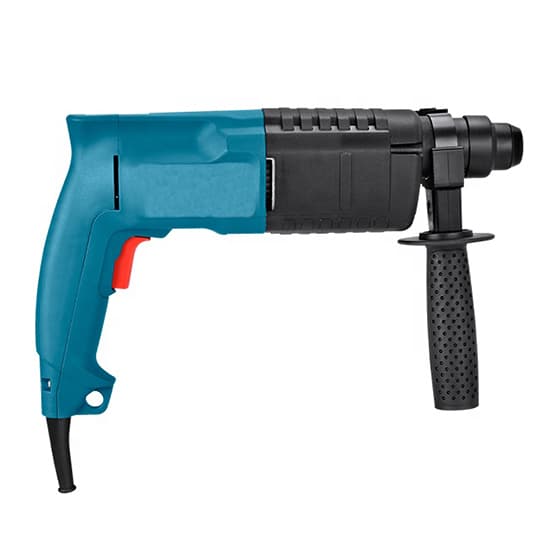

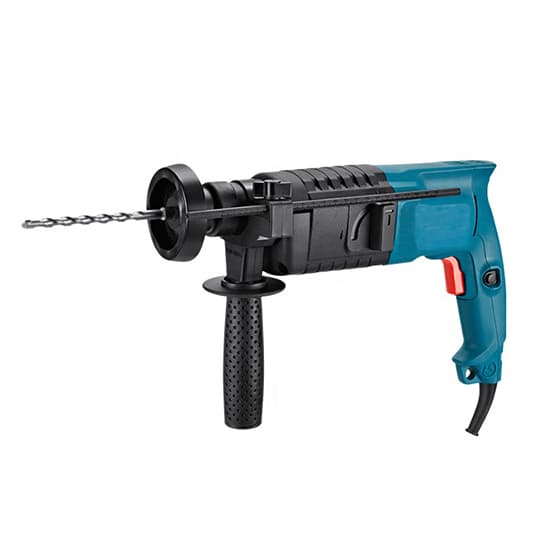

Rotary Hammer with SDS Drill, 500W, 20/22mm

Size chart

Clothing Size Conversion Chart
Category	US	EU	UK	Chest (in)	Waist (in)	Hips (in)
Men	XS	44	34	32-34	26-28	33-35
	S	46	36	34-36	28-30	35-37
	M	48	38	38-40	32-34	39-41
	L	50	40	42-44	36-38	43-45
	XL	52	42	46-48	40-42	47-49
Women	XS	32	6	31-32	24-25	33-34
	S	34	8	33-34	26-27	35-36
	M	36	10	35-36	28-29	37-38
	L	38-40	12-14	37-39	30-32	39-41
	XL	42	16	40-42	33-35	42-44
Youth	XS	128	7	26-28	23-24	26-28
	S	134	8	28-30	24-25	28-30
	M	140	10	30-32	25-26	30-32
	L	146	12	32-34	26-27	32-34
	XL	152	14	34-36	27-28	34-36

Pants Size Conversion Chart
Category	US	EU	UK	Waist (in)	Hip (in)	Inseam (in)
Men	28	44	28	28	34	30
	30	46	30	30	36	31
	32	48	32	32	38	32
	34	50	34	34	40	33
	36	52	36	36	42	34
Women	0	32	4	24	34	30
	2	34	6	25	35	30
	4	36	8	26	36	31
	6	38	10	27	38	32
	8	40	12	28	40	32

Shoes Size Conversion Chart
Category	US	EU	UK	Foot Length (in)
Men	6	39	5.5	9.25
	7	40	6.5	9.625
	8	41	7.5	10
	9	42	8.5	10.25
	10	43	9.5	10.625
	11	44	10.5	11
	12	45	11.5	11.25
	13	46	12.5	11.625
Women	5	35	2.5	8.5
	6	36	3.5	8.875
	7	37	4.5	9.25
	8	38	5.5	9.625
	9	39	6.5	10
	10	40	7.5	10.25
	11	41	8.5	10.625
	12	42	9.5	11
M (Unisex)	5	37	4.5	8.75
	6	38	5.5	9
	7	39	6.5	9.5
	8	40	7.5	10
	9	41	8.5	10.25
	10	42	9.5	10.625
	11	43	10.5	11
	12	44	11.5	11.25

46 People watching this product now!

Rotary hammer drill has 2 switchable functions. Electric drill for drilling of metal, wood, ceramics, etc. Electric hammer for breaking in wall demolition, engineering construction, interior decoration. Standard configuration 3 SDS drill bits.

Specification

Model	T-RTHM-6020	T-RTHM-6022
Drilling Diameter	20mm	22mm
Function	hammering, drilling
Voltage	230V
Frequency	50Hz
Rated Power	500W
No-load Speed	0-1060rpm
Hammering Rate	0-3900bpm
Impact Energy	1.8J	2.2J
Weight	2.6kg	2.57kg

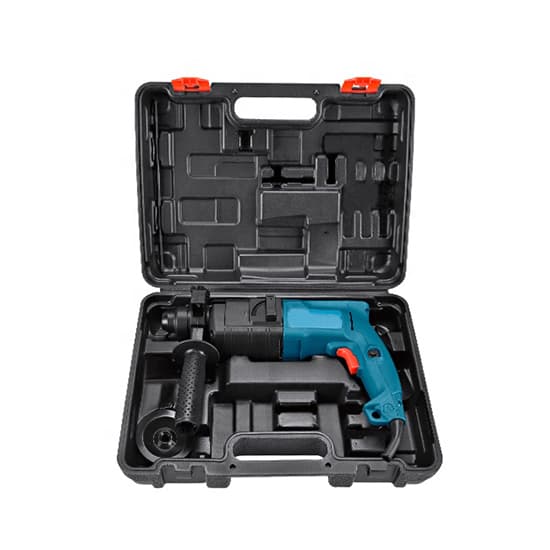

Standard Accessories	3 SDS drill hammer bits (8, 10, 12*150mm), ruler, carbon brush, dust cover, tool box

Features

The pure copper motor in rotary hammer provides high power, stable and efficient, low noise, high speed.
Precision cylinder hammering system, highly airtight and efficient hammering.
Spiral-type heat dissipation system, dissipate heat quickly and prevent the machine from burning out.

Rotary Hammer Structure Diagram

Tips: Advantages of rotary hammer conjoined gearbox design.

Effectively prevent oil leakage of rotary hammer body.
For the non-conjoined gearbox, due to screws connection, its case is easy to loosen after working for a long time. The conjoined design solves this problem.
Conjoined design shortens the length of joint and avoids easy breakage.
Connectors are small, making rotary hammer easy to disassemble and repair.
