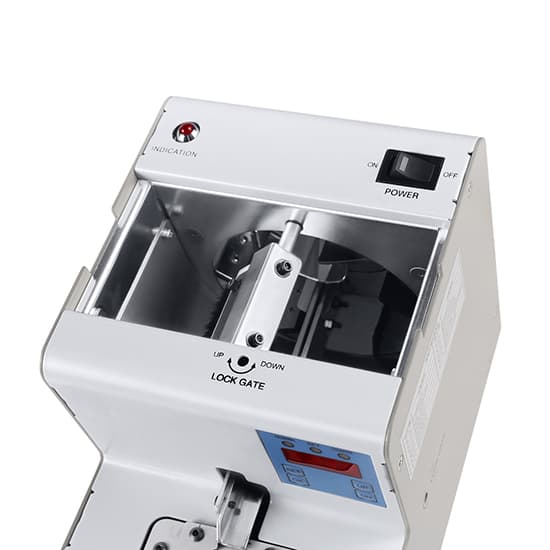

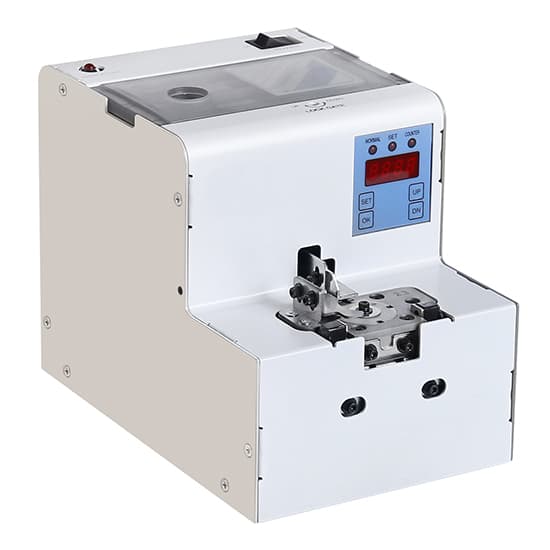

Turntable Automatic Screw Feeder, M0.8~M5.0
Original price was: $867.38.$86.99Current price is: $86.99.
Size chart
| Category | US | EU | UK | Chest (in) | Waist (in) | Hips (in) |
|---|---|---|---|---|---|---|
| Men | XS | 44 | 34 | 32-34 | 26-28 | 33-35 |
| S | 46 | 36 | 34-36 | 28-30 | 35-37 | |
| M | 48 | 38 | 38-40 | 32-34 | 39-41 | |
| L | 50 | 40 | 42-44 | 36-38 | 43-45 | |
| XL | 52 | 42 | 46-48 | 40-42 | 47-49 | |
| Women | XS | 32 | 6 | 31-32 | 24-25 | 33-34 |
| S | 34 | 8 | 33-34 | 26-27 | 35-36 | |
| M | 36 | 10 | 35-36 | 28-29 | 37-38 | |
| L | 38-40 | 12-14 | 37-39 | 30-32 | 39-41 | |
| XL | 42 | 16 | 40-42 | 33-35 | 42-44 | |
| Youth | XS | 128 | 7 | 26-28 | 23-24 | 26-28 |
| S | 134 | 8 | 28-30 | 24-25 | 28-30 | |
| M | 140 | 10 | 30-32 | 25-26 | 30-32 | |
| L | 146 | 12 | 32-34 | 26-27 | 32-34 | |
| XL | 152 | 14 | 34-36 | 27-28 | 34-36 |
| Category | US | EU | UK | Waist (in) | Hip (in) | Inseam (in) |
|---|---|---|---|---|---|---|
| Men | 28 | 44 | 28 | 28 | 34 | 30 |
| 30 | 46 | 30 | 30 | 36 | 31 | |
| 32 | 48 | 32 | 32 | 38 | 32 | |
| 34 | 50 | 34 | 34 | 40 | 33 | |
| 36 | 52 | 36 | 36 | 42 | 34 | |
| Women | 0 | 32 | 4 | 24 | 34 | 30 |
| 2 | 34 | 6 | 25 | 35 | 30 | |
| 4 | 36 | 8 | 26 | 36 | 31 | |
| 6 | 38 | 10 | 27 | 38 | 32 | |
| 8 | 40 | 12 | 28 | 40 | 32 |
| Category | US | EU | UK | Foot Length (in) |
|---|---|---|---|---|
| Men | 6 | 39 | 5.5 | 9.25 |
| 7 | 40 | 6.5 | 9.625 | |
| 8 | 41 | 7.5 | 10 | |
| 9 | 42 | 8.5 | 10.25 | |
| 10 | 43 | 9.5 | 10.625 | |
| 11 | 44 | 10.5 | 11 | |
| 12 | 45 | 11.5 | 11.25 | |
| 13 | 46 | 12.5 | 11.625 | |
| Women | 5 | 35 | 2.5 | 8.5 |
| 6 | 36 | 3.5 | 8.875 | |
| 7 | 37 | 4.5 | 9.25 | |
| 8 | 38 | 5.5 | 9.625 | |
| 9 | 39 | 6.5 | 10 | |
| 10 | 40 | 7.5 | 10.25 | |
| 11 | 41 | 8.5 | 10.625 | |
| 12 | 42 | 9.5 | 11 | |
| M (Unisex) | 5 | 37 | 4.5 | 8.75 |
| 6 | 38 | 5.5 | 9 | |
| 7 | 39 | 6.5 | 9.5 | |
| 8 | 40 | 7.5 | 10 | |
| 9 | 41 | 8.5 | 10.25 | |
| 10 | 42 | 9.5 | 10.625 | |
| 11 | 43 | 10.5 | 11 | |
| 12 | 44 | 11.5 | 11.25 |
59
People watching this product now!
Description
Screws in the automatic screw feeder is discharged by turntable. It is a micro feeding machine for flat head screw, self-tapping screw, round head screw, socket head cap screw and the screw with gasket.
Specification
| Model | T-ASF-RJ | |
| Shell Material | white baking varnish | |
| Applicable Screws Spec. | M0.8, M1.0, M1.2, M1.4, M1.7, M2.0, M2.3, M2.6, M3.0, M3.5, M4.0, M4.5, M5.0 | |
| Screw Head Shape | 0/00/1/2(+) | |
| Screw Thread Length | ≤12mm (without screw head thickness) | |
| Screw Head Thickness | ≥0.2mm | |
| Installable Screw Quantity | at M1.2 | 2000 pcs |
| at M3.5 | 600 pcs | |
| Supply Speed (Sec/EA) | high | 0.7 |
| low | 1.5 | |
| Input | AC 100-240V (50/60Hz) | |
| Output | 12V/2.0A | |
| Capacity | 200~220cc | |
| Weight | 3.1kg | |
Features
- Shell material of the automatic screw feeder is white baking varnish, cross-feeding mechanism, and precise positioning point. Screw discharging is smooth, fast speed, high precision, and strong stability, and it is not easy to slipping, stucking, bonding, etc.
- Vibration, drum and turntable of the automatic screw feeder are driven by brushless motors. Digitalization control, can perform efficient function setting operation on drum motor, turntable motor and vibration motor. With individual counting function and total counting function.
- The track adopts full-line cutting precision processing, track gap is uniform and flat, overall tolerance is small.
- Professional design for automatic locking screw machines, such as XY-axis, 3-axis, 4-axis and screw-locking robots, etc
Applicable Screws
Automatic Screw Feeder Dimension Drawing
Tips: 3 key points to maintain stability for automatic screw feeder.
- Ensure screws quality as much as possible (for example, the screws must not have oil stains).
- Regularly remove screws that do not meet specifications or foreign objects in the storage bin of automatic screw feeder.
- Simple material clamping and other problems can be eliminated by non-professionals.
