Description

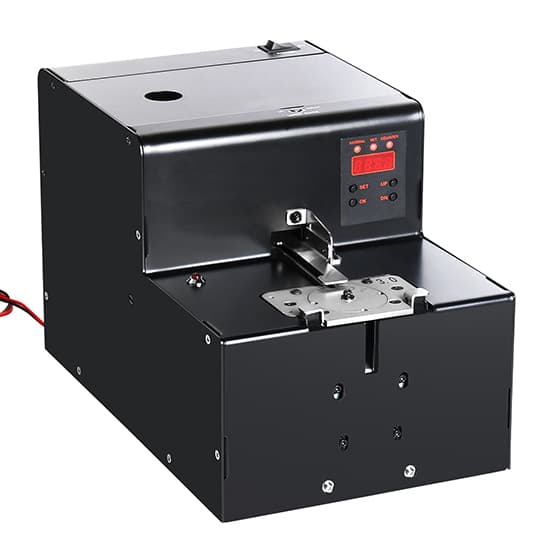

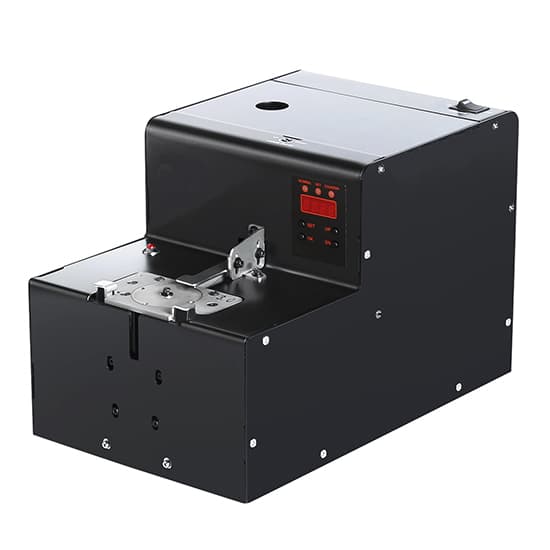

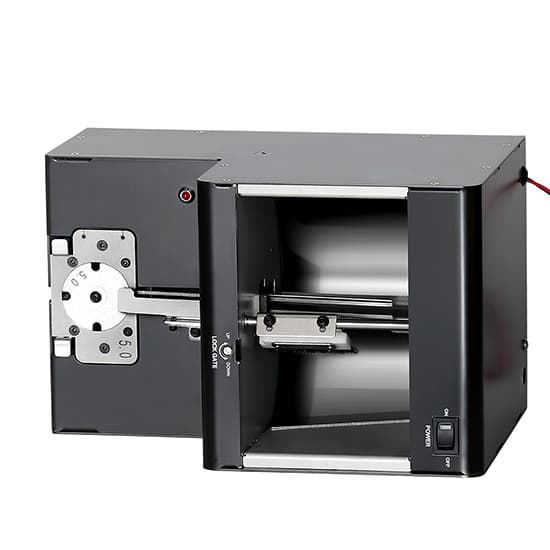

Automatic screw feeder has a turntable for feeding screws. It is a small screw feeding machine with large volumetric. Professional design for automatic locking screw machines, such as XY-axis, 3-axis, 4-axis and screw-locking robots and other automation equipment.
Specification
| Model | T-ASF-RJ2 | |
| Shell Material | black baking varnish | |
| Applicable Screws Spec. | M2.0, M2.3, M2.6, M3.0, M3.5, M4.0, M5.0, M6.0 | |
| Applicable Screw Thread Length | ≤30mm | |
| Applicable Screw Head Thickness | ≥0.2mm | |
| Screw Capacity | 600cc | |
| Input | AC 100-240V (50/60Hz) | |
| Output | 12V/2.0A | |
| Weight | 5kg | |
Features
- Shell material of the automatic screw feeder is black baking varnish, compact structure, cross-feeding mechanism, and precise positioning point.
- Screw discharging is smooth, fast speed, high precision, and strong stability, and it is not easy to slipping, stucking, bonding, etc.
- Vibration, drum and turntable of the automatic screw feeder are driven by brushless motors. Digitalization control, can perform efficient function setting operation on drum motor, turntable motor and vibration motor. Individual counting function and total counting function.
- The track adopts full-line cutting precision processing, track gap is uniform and flat, overall tolerance is small. Storage bin volume is larger, save time on manual filling.
Applicable Screws
Turntable Automatic Screw Feeder Dimension Drawing
Tips: Safety rules for using automatic screw feeder.
- When the automatic screw feeder is running, do not insert your fingers and foreign objects into storage bin. Do not point the head of locking screw gun to any part of human body to avoid injury.
- If the position to be locked of the screw is special (for example, there is interference from other materials around the screw hole), a positioning jig can be added to solve it.
- If the automatic screw feeder will be not used for a long time, please turn off the power switch and unplug the power plug. During use, if abnormal phenomenon occurs, please turn off the power switch and unplug the plug first, and then let a professional handle it.
- If storage bin lacks screws and causes an alarm, please turn off the power switch first. Turn on the power switch after adding screws.
