Name: Ultrasonic Injector Tester and Cleaner, 4 Cylinder
Brand: Tool
SKU: 961
Availability: InStock

Ultrasonic Injector Tester and Cleaner, 4 Cylinder

Size chart

Clothing Size Conversion Chart
Category	US	EU	UK	Chest (in)	Waist (in)	Hips (in)
Men	XS	44	34	32-34	26-28	33-35
	S	46	36	34-36	28-30	35-37
	M	48	38	38-40	32-34	39-41
	L	50	40	42-44	36-38	43-45
	XL	52	42	46-48	40-42	47-49
Women	XS	32	6	31-32	24-25	33-34
	S	34	8	33-34	26-27	35-36
	M	36	10	35-36	28-29	37-38
	L	38-40	12-14	37-39	30-32	39-41
	XL	42	16	40-42	33-35	42-44
Youth	XS	128	7	26-28	23-24	26-28
	S	134	8	28-30	24-25	28-30
	M	140	10	30-32	25-26	30-32
	L	146	12	32-34	26-27	32-34
	XL	152	14	34-36	27-28	34-36

Pants Size Conversion Chart
Category	US	EU	UK	Waist (in)	Hip (in)	Inseam (in)
Men	28	44	28	28	34	30
	30	46	30	30	36	31
	32	48	32	32	38	32
	34	50	34	34	40	33
	36	52	36	36	42	34
Women	0	32	4	24	34	30
	2	34	6	25	35	30
	4	36	8	26	36	31
	6	38	10	27	38	32
	8	40	12	28	40	32

Shoes Size Conversion Chart
Category	US	EU	UK	Foot Length (in)
Men	6	39	5.5	9.25
	7	40	6.5	9.625
	8	41	7.5	10
	9	42	8.5	10.25
	10	43	9.5	10.625
	11	44	10.5	11
	12	45	11.5	11.25
	13	46	12.5	11.625
Women	5	35	2.5	8.5
	6	36	3.5	8.875
	7	37	4.5	9.25
	8	38	5.5	9.625
	9	39	6.5	10
	10	40	7.5	10.25
	11	41	8.5	10.625
	12	42	9.5	11
M (Unisex)	5	37	4.5	8.75
	6	38	5.5	9
	7	39	6.5	9.5
	8	40	7.5	10
	9	41	8.5	10.25
	10	42	9.5	10.625
	11	43	10.5	11
	12	44	11.5	11.25

40 People watching this product now!

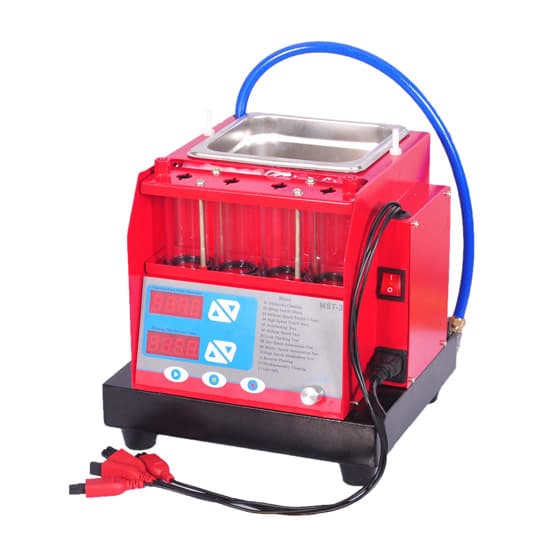

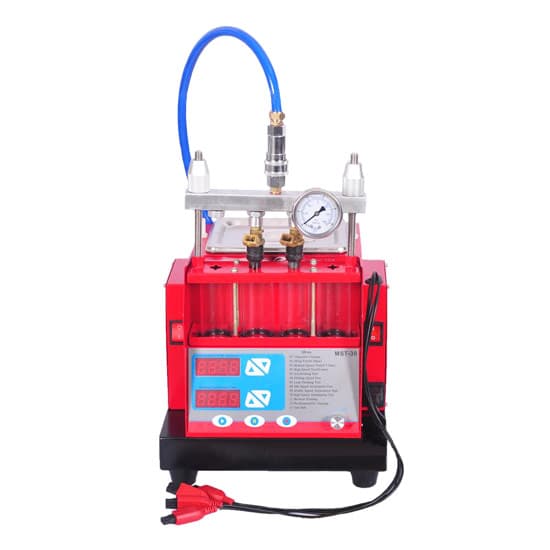

4 cylinder fuel injector tester and cleaner integrates speed/atomization testing and ultrasonic cleaning functions. It can simulate the working conditions of the fuel injector when the engine is accelerating and decelerating. It can detect the atomization status of fuel injector and the amount of fuel injection in different speed.

Specification:

Model	T-MST-30
Shipping weight	25kg
Size of tester	580540495mm
Working voltage	AC 110V~240V±10%
Working frequency	50Hz±0.5Hz
Power	＜200W
Range of speed	0~7500rpm (idling speed 750rpm, medium speed 4000rpm, high speed 7500rpm)
Number of injection	0~9900times (minimum unit: 100times)
PWM pulse width	0~20.0ms (minimum unit: 0.1ms)
Ultrasonic cleaning time	0~20 minutes (adjustable)
Ultrasonic cleaning power	70W
Ultrasonic cleaning frequency	28kHz±0.5kHz
System pressure	0~0.6MPa (adjustable)
Capacity of tank	2000ml
Capacity of measuring cylinder	60ml
Display	Upper 4 digit LED shows function/pulse width adjustment Lower 4 digit LED shows working time/injecting time
Function	01 Ultrasonic cleaning 02 Idling test (0~20ms) 03 Medium speed test (0~7.5ms) 04 High speed test (0~4ms) 05 Accelerating test 06 Shifting speed test 07 Leakage test 08 Idle speed atomization test 09 Middle speed atomization test 10 High speed atomization test 11 Reverse flushing 12 No-disassembly cleaning 13 Unit information
Working environment	Environment temperature: 10~30℃ (50~86℉) Relative humidity: ＜85% External magnetic field strength: ＜400A/m Open fires are not allowed.

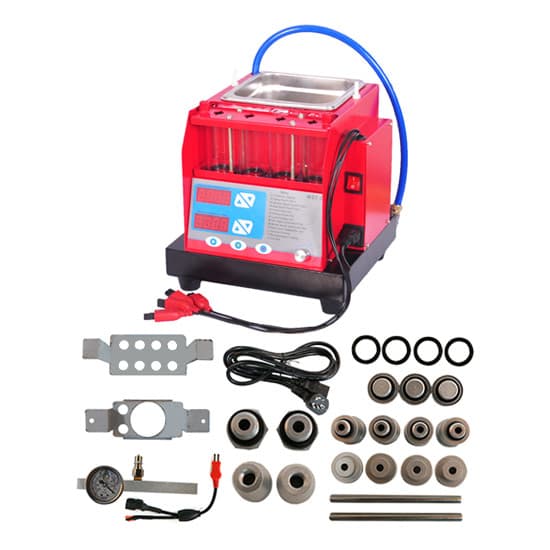

Packing included	1 * injector tester 4 * connectors 3 * stoppers 1 * oil circuit board 1 * pressure gauge 2 * strainers 1 * power cable 2 * long screws 2 * nuts

Tips: What is the no-disassembly cleaning method of the fuel injector?
Nowadays, the cleaning of fuel injector can be done by the “no-disassembly cleaning”, which is to clean the oil circuit. It’s a method that can clean the fuel injector at the same time as the oil circuit is cleaned. The way is to pour the cleaning agent into the injector tester and cleaner, connect the injector cleaner to the fuel pipe of the engine, disconnect the gasoline pump, start the engine, and idle for more than 15 minutes until the cleaning agent used up.
There is no certain mileage requirement to clean the fuel injector. It depends on the working condition of the automotive engine. Some cars may be needed to clean when reaching 40,000 kilometers, some cars may reach 80,000 kilometers, and some cars may not need to be cleaned when reaching 100,000 kilometers. As long as the gasoline is clean and the vehicle speed can be kept high while driving, the fuel injectors can be cleaned after a long mileage.
