Name: Vibratory Plate Compactor, 15 kN, 5.5 HP, 600x470 mm
Brand: Tool
SKU: 736
Availability: InStock

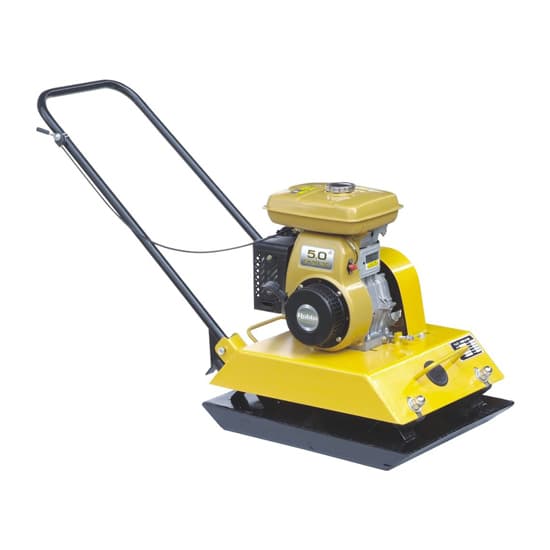

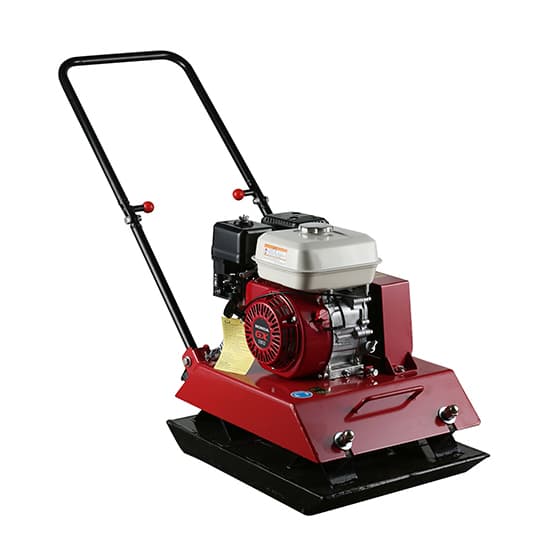

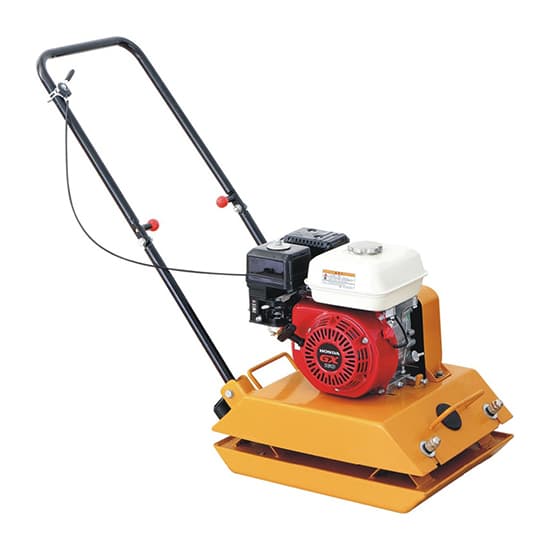

Vibratory Plate Compactor, 15 kN, 5.5 HP, 600×470 mm

Size chart

Clothing Size Conversion Chart
Category	US	EU	UK	Chest (in)	Waist (in)	Hips (in)
Men	XS	44	34	32-34	26-28	33-35
	S	46	36	34-36	28-30	35-37
	M	48	38	38-40	32-34	39-41
	L	50	40	42-44	36-38	43-45
	XL	52	42	46-48	40-42	47-49
Women	XS	32	6	31-32	24-25	33-34
	S	34	8	33-34	26-27	35-36
	M	36	10	35-36	28-29	37-38
	L	38-40	12-14	37-39	30-32	39-41
	XL	42	16	40-42	33-35	42-44
Youth	XS	128	7	26-28	23-24	26-28
	S	134	8	28-30	24-25	28-30
	M	140	10	30-32	25-26	30-32
	L	146	12	32-34	26-27	32-34
	XL	152	14	34-36	27-28	34-36

Pants Size Conversion Chart
Category	US	EU	UK	Waist (in)	Hip (in)	Inseam (in)
Men	28	44	28	28	34	30
	30	46	30	30	36	31
	32	48	32	32	38	32
	34	50	34	34	40	33
	36	52	36	36	42	34
Women	0	32	4	24	34	30
	2	34	6	25	35	30
	4	36	8	26	36	31
	6	38	10	27	38	32
	8	40	12	28	40	32

Shoes Size Conversion Chart
Category	US	EU	UK	Foot Length (in)
Men	6	39	5.5	9.25
	7	40	6.5	9.625
	8	41	7.5	10
	9	42	8.5	10.25
	10	43	9.5	10.625
	11	44	10.5	11
	12	45	11.5	11.25
	13	46	12.5	11.625
Women	5	35	2.5	8.5
	6	36	3.5	8.875
	7	37	4.5	9.25
	8	38	5.5	9.625
	9	39	6.5	10
	10	40	7.5	10.25
	11	41	8.5	10.625
	12	42	9.5	11
M (Unisex)	5	37	4.5	8.75
	6	38	5.5	9
	7	39	6.5	9.5
	8	40	7.5	10
	9	41	8.5	10.25
	10	42	9.5	10.625
	11	43	10.5	11
	12	44	11.5	11.25

31 People watching this product now!

Wholesale vibrator plate compactor is a construction tool designed for the compaction of backfill, base preparation, formwork. It features 15 kN impact force, 5800 VPM frequency, 20m/min travel speed, 600 x 470 mm plating size, 4 kW (5.5 HP) 4-stroke gasoline engines, robust and reliable structural elements for protecting the engine.

Features

Powerful 5.5 HP Honda / Robin engine supports 3372 lbf of centrifugal force.
Engine type is forced air-cooled, 4-stroke gasoline engine.
Foldable handle for easy transport and stock.
Compacting plate is 600 x 470 mm (23.62″ x 18.5″) to cover more ground in less time.
More powerful force, better compaction effect, lower maintenance cost and long life time.
Delivers 5800 vibrations per minute to achieve results quickly.
Compaction of soil, debris and aggregate materials up to 12 inch.

Specification

Model	T-C90
Frequency	5800 VPM (Vibrations per Minute)
Engine Type	Air-cooled, 4-stroke, single cylinder
Centrifugal Force	15 kN (3372 lbf)
Brand of Engine	Honda / Robin gasoline engine, Chinese petrol engine
Power of Engine	4 kW (5.5 HP)
Plate Size	600 x 470 mm (23.62 x 18.5 inch)
Gradeability Degrees	20
Travel Speed	20 m/min
Compaction Depth	300 mm (12 inch)
Packing Size	690 x 530 x 760 mm (27.17 x 20.87 x 29.92 inch)
Net Weight / Gross Weight	89 / 98 kg
Packing Way	Hob with Carton
Certificate	CE, ISO900
Warranty	1 year

Tips: How to use 15kN 600×470 mm vibratory plate compator safely?

During the use of our 15kN 600×470 mm vibrating plate compactor construction tool safely, we must master the correct operating methods to help us better maintain the stability of the plate compactor and prevent damage to the machine.

We must use special supporting tools to cooperate with the construction work of the plate compactor.
Special methods should be used to improve the production efficiency of the vibrating plate compactor. In order to make full use of the vibrating plate compactor efficiently, appropriate adjustments should be made and the pressure should not be too high or too low.
Avoid long-term continuous work. After working for a certain period of time, we should prohibit continuous work on the same hit point for more than 30 seconds.
Pay attention to the surrounding construction environment. We should change the working method in time when encountering bad weather. If there is water on the road, we should prohibit working in the water.
In case of inflexible vibrating plate compactor, it should be checked in time to avoid brutal violence. It is forbidden to use the operation method of falling vibratory plate compactor.
