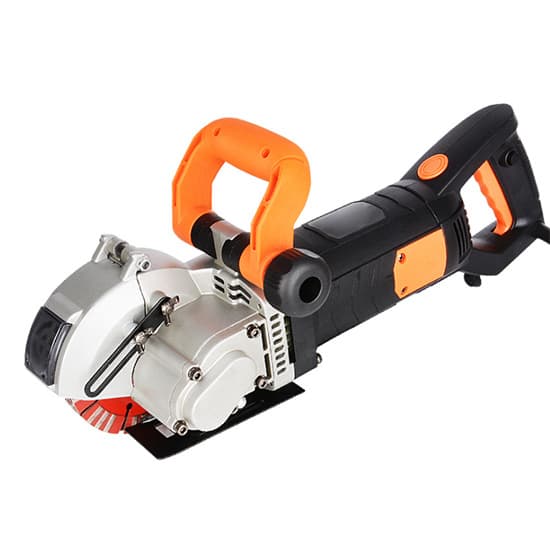

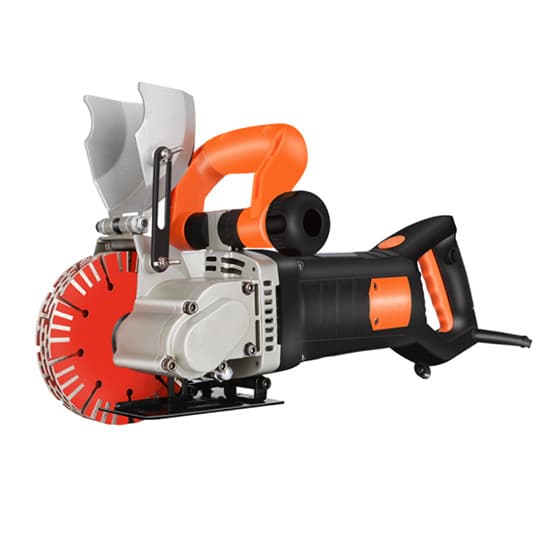

Name: Wall Chaser Grooving Machine, 4800W, 133mm
Brand: Tool
SKU: 683
Availability: InStock

Wall Chaser Grooving Machine, 4800W, 133mm

Size chart

Clothing Size Conversion Chart
Category	US	EU	UK	Chest (in)	Waist (in)	Hips (in)
Men	XS	44	34	32-34	26-28	33-35
	S	46	36	34-36	28-30	35-37
	M	48	38	38-40	32-34	39-41
	L	50	40	42-44	36-38	43-45
	XL	52	42	46-48	40-42	47-49
Women	XS	32	6	31-32	24-25	33-34
	S	34	8	33-34	26-27	35-36
	M	36	10	35-36	28-29	37-38
	L	38-40	12-14	37-39	30-32	39-41
	XL	42	16	40-42	33-35	42-44
Youth	XS	128	7	26-28	23-24	26-28
	S	134	8	28-30	24-25	28-30
	M	140	10	30-32	25-26	30-32
	L	146	12	32-34	26-27	32-34
	XL	152	14	34-36	27-28	34-36

Pants Size Conversion Chart
Category	US	EU	UK	Waist (in)	Hip (in)	Inseam (in)
Men	28	44	28	28	34	30
	30	46	30	30	36	31
	32	48	32	32	38	32
	34	50	34	34	40	33
	36	52	36	36	42	34
Women	0	32	4	24	34	30
	2	34	6	25	35	30
	4	36	8	26	36	31
	6	38	10	27	38	32
	8	40	12	28	40	32

Shoes Size Conversion Chart
Category	US	EU	UK	Foot Length (in)
Men	6	39	5.5	9.25
	7	40	6.5	9.625
	8	41	7.5	10
	9	42	8.5	10.25
	10	43	9.5	10.625
	11	44	10.5	11
	12	45	11.5	11.25
	13	46	12.5	11.625
Women	5	35	2.5	8.5
	6	36	3.5	8.875
	7	37	4.5	9.25
	8	38	5.5	9.625
	9	39	6.5	10
	10	40	7.5	10.25
	11	41	8.5	10.625
	12	42	9.5	11
M (Unisex)	5	37	4.5	8.75
	6	38	5.5	9
	7	39	6.5	9.5
	8	40	7.5	10
	9	41	8.5	10.25
	10	42	9.5	10.625
	11	43	10.5	11
	12	44	11.5	11.25

68 People watching this product now!

Best wall chaser grooving machine features 4.8KW 50Hz 220V electric motor, 133mm (5.2″) saw blade diameter, 5000 rpm working speed, the depth and width can be adjusted to 42mm (1.8“) and 40mm (1.6“) respectively. It is a multi-purpose tool in the construction industry and can cut many different materials including red brick, granite, concrete, marble, rebar.

Description

Model	T-1201
Saw Type	circular saw
Voltage	220V AC
Power	4800W
Saw Blade Diameter	133mm (5.2“)
Saw Blade Dimension	133204.5mm (5.2″0.8″0.2″)
No-load Speed	5000(rpm)
Max. Cutting Depth	42 mm (1.7″)
Cutting Depth	42 mm (1.7″)
Cutting Width	40 mm(1.6″)
Net Weight / Gross Weight	6.3kg (13.9 pounds) / 8.8kg (19.4 pounds)
Application	red brick, granite, concrete, marble,rebar

Features

Adjustable cutting depth & wedth: Cutting groove depth and width of wall chaser can be randomly controlled. Max. cutting depth is up to 42mm (1.7″), max. cutting width 40mm (1.6″).
Easy to hold: Weight 6.3kg, the handle can be rotated 360°. It can also work much effort without any assistants to increase the efficiency of work.
Safety: The slotting machine can serve for a long life with high power 4800W 220V 50Hz copper motor. The devices of water pump and vacuum work at the same time to reduce the dust during work to take into account your health.
Multifunction use: Widely applied and adapt to different materials, such as red brick, granite, concrete, marble, rebar. Ideal for building workers.

Notes: User should take dustproof glasses, mask and vacuum and water pump at the same time to reduce the dust during work.

Size

Details

Tips: How to maintain the electric motor of wall chaser grooving machine?

Check whether the temperature of motor rises normally or not, whether there is shaking, noise, etc. after each startup.
Regularly check and repair the running parts of the wall chaser, such as bearings and gears, and add lubricating oil in time to dilute the friction that occurs during the operation.
Clean the motor. Timely remove the dust and sludge outside the motor. If the environment is dusty, it is better to clean it once a day. Place the slotting machine in a ventilated place to prevent rusting of the cutting device.
Check the screws outside of motor and tighten loose nuts. Check whether there are burn marks on the power line.
