72 People watching this product now!

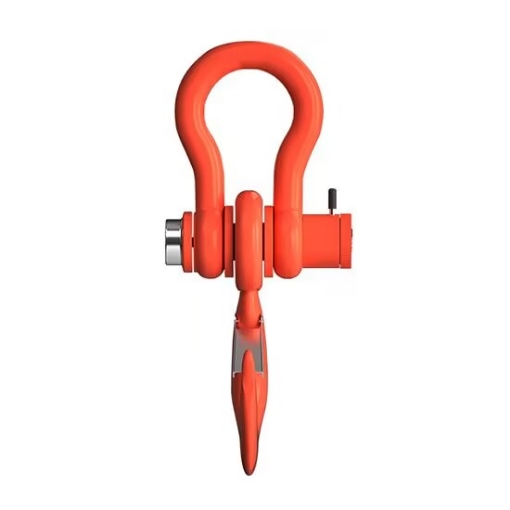

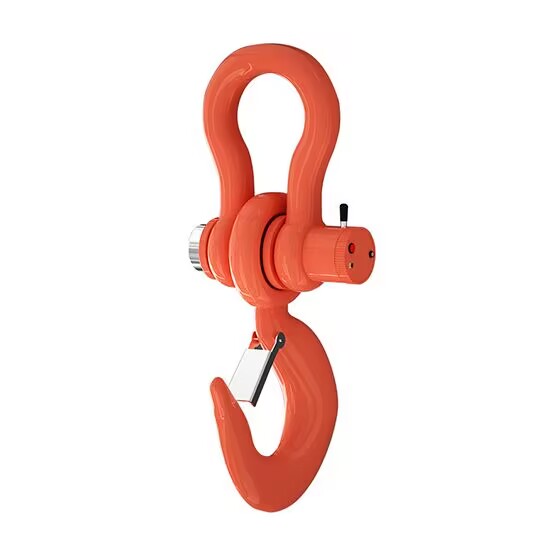

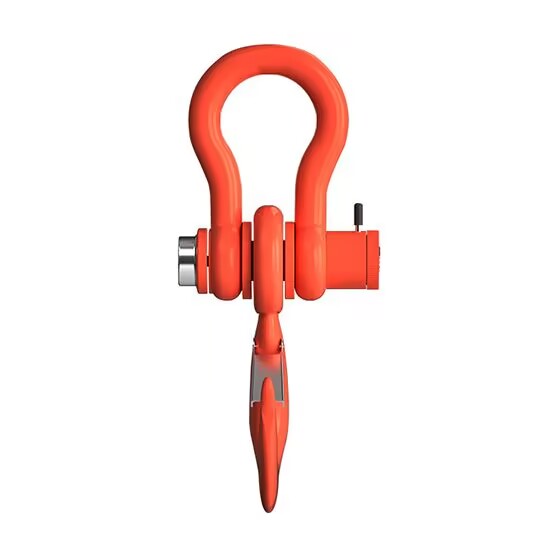

The wireless hanging crane scale (2t/3t/5t to 50t) is a reliable and durable solution designed for measuring heavy loads in industrial settings. With a wide capacity range from 2 tons to 50 tons, it ensures precise and accurate weight measurements for a variety of lifting operations. The wireless feature allows for seamless remote monitoring, enhancing safety and efficiency during use. Built with high-strength materials, it is suitable for tough environments like warehouses, construction sites, and manufacturing plants. This crane scale offers the perfect balance between convenience, durability, and performance.

Specification

Model	T-CS-OCS-A
Capacity	2t	3t	5t	10t	15t	20t	30t	50t
Weight	6.5kg	6.5kg	11.5kg	17.5kg	25kg	31kg	69kg	161kg
Accuracy	OLML Level III
Display	6-digit LED, 6 status indicators
Voltage	220V, 50Hz
Working Temperature	0℃-40℃ for indicator, -20℃-40℃ for load cell
Wireless Transmission Distance	100m
Product Material	Aluminum alloy shell

Features

Precision Weighing
Fast charging
Anti-shaking and shock-absorbing
Long battery life
Waterproof
Multi-function

Crane scale dimension (mm)

Model	Capacity	dimension (mm)
Model	Capacity	A	B	C	D	E	F	G	H
T-CS-OCS-A	2t	319	126	72	88	132	198	34	48
	3t	319	126	72	88	132	198	34	48
	5t	407	161	88	105	160	219	42	57
	10t	465	202	95	105	170	246	46	65
	15t	520	203	120	130	215	263	60	77
	20t	621	284	142	135	251	294	75	105
	30t	770	305	180	205	325	356	85	125
	50t	1020	470	200	340	360	436	135	170

(Note: The above data are measured manually. In case of any error please refer to the actual object.)

Tips: How to reset wireless hanging crane scale?

To reset a wireless hanging crane scale, follow these general steps. The exact process may vary slightly depending on the model, so always refer to the user manual for specific instructions:

Power Off the Scale: Turn off the crane scale by pressing the power button.
Remove any Load: Ensure there is no load attached to the scale before resetting to prevent inaccurate readings.
Enter the Calibration/Reset Mode: On many models, you can enter the reset or calibration mode by holding down the “Tare” or “Zero” button for a few seconds after powering on the device. Alternatively, some models have a dedicated reset button on the remote control.
Select Reset Option: Once in the reset mode, use the remote or keypad to navigate to the reset option. Follow the on-screen prompts or LED indicators.
Confirm Reset: Confirm the reset by pressing the appropriate button (often “Enter” or “Confirm”).
Re-calibration: After resetting, you may need to re-calibrate the scale, especially if instructed in the manual. Follow the calibration procedure if necessary.
Power Cycle: Turn off the scale again and restart it to complete the reset process.

These steps should help you reset most wireless hanging crane scales. Always check your model’s manual for specific instructions.
