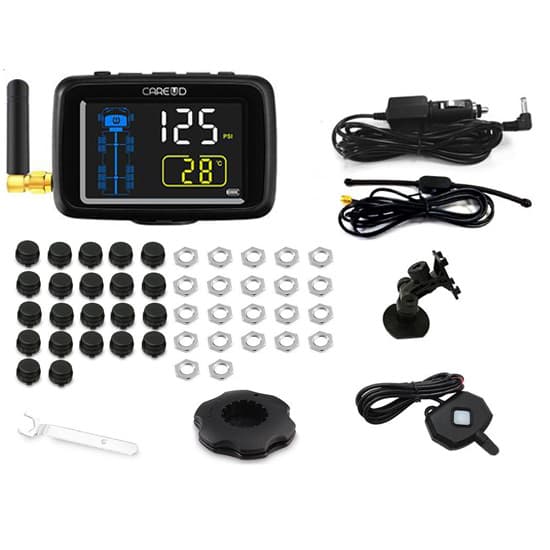

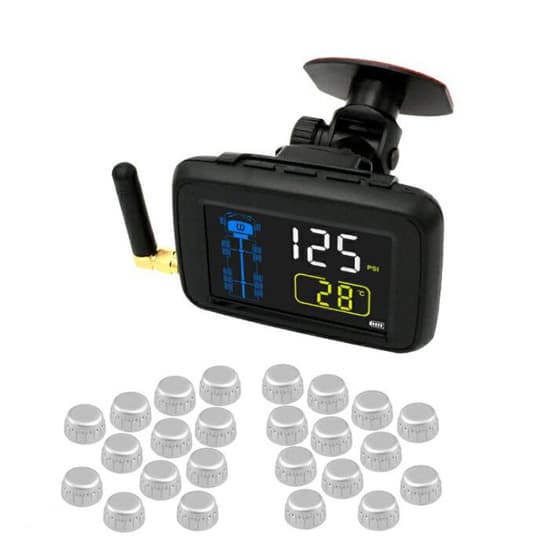

Truck TPMS is composed of a display, 22 tire sensors (internal or external), a t-type antenna, a repeater, a bracket and installation accessories. Wireless truck tire pressure monitoring system has pressure measuring range 0-14 bar. LED display charging power is from DC 24V cigarette lighter.

Features:

TPMS can real-time monitor the tire pressure and temperature of your car and automatically update the data on the display at the same time. Once there are something abnormal, the TPMS will warn you immediately.
Truck TPMS provides six types of alarms, including high pressure alarm, low pressure alarm, high temperature alarm, fast air leak alarm, sensor low battery alarm and display low battery alarm. The user can also set the pressure and temperature alarm value in the setting range.
The tire pressure monitoring system supports car cigarette lighter charging, very convenient. With built-in explosive-proof lithium battery and charging protection, there is no need to worry about charging at the high temperature and it provides a safe guard for display and extend its service life.
Adopting advanced chip, TPMS features high sensing accuracy, fast feedback speed, stable signal, long-distance transmission, low consumption and anti-interference, and the sensors adapt to all weather, anti-dust, waterproof, snow and high temperature protection, anti-drop off and anti-theft.

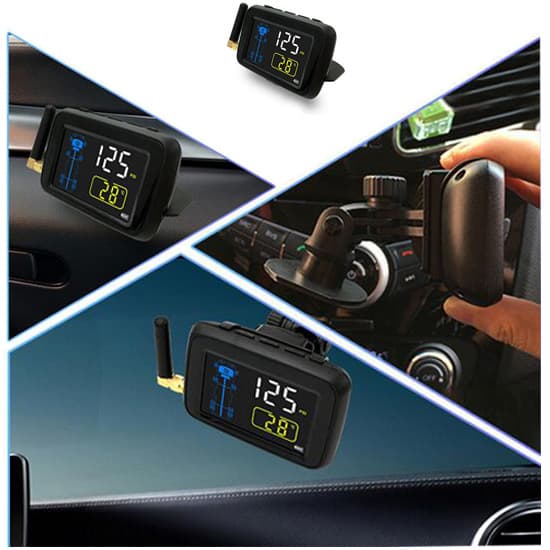

The TPMS monitor can auto start intelligently after the truck starts, without need of manually switching on/off. With wireless transmission design, the display can be placed anywhere on the dashboard.

Specification:

Basic	Model	T-U901RV-WF1	T-U901RV-WF2	T-U901RV-TP	T-U901RV-NF+
	Weight	1kg	1kg	1kg	1kg
	Pressure range	0-14 bar	0-14 bar	0-14 bar	0-14 bar
	Accuracy	<0.01 bar	<0.01 bar	<0.01 bar	<0.01 bar
	Packing included	1 * LED display with solar cell; 22 * silver tire sensors; 22 * theftproof nuts; 1 * hex wrench; 1 * cigarette lighter charger; 1 * t-type antenna; 2 * wrenches for sensor; 1 * bracket 1 * repeater	1 * LED display with solar cell; 22 * black tire sensors; 22 * theftproof nuts; 1 * hex wrench; 1 * cigarette lighter charger; 1 * t-type antenna; 2 * wrenches for sensor; 1 * bracket 1 * repeater	1 * LED display with solar cell; 22 * black tire sensors; 22 * theftproof nuts; 1 * hex wrench; 1 * cigarette lighter charger; 1 * t-type antenna; 2 * wrenches for sensor; 1 * bracket 1 * repeater	1 * LED display with solar cell; 22 * black tire sensors; 22 * air taps; 1 * hex wrench; 1 * cigarette lighter charger; 1 * t-type antenna; 1 * bracket 1 * repeater
	Function	Wireless remote sensing technology, predict air leakage, prevent tire burst, detect swelling, reduce wear, prevent running deviation
LED display	Size (LWH)	852455mm
	Data update frequency	1 time/3 second
	Battery	Explosion-proof lithium battery with 5-6 years warranty
	Power supply	Cigarette lighter 24VDC
	Working temperature	0-80℃ >70℃, LED display will stop charging >80℃, LED display will stop working When LED display gets back to normal temperature, it will restore real-time monitoring status
	Function	High-pressure alarm (175 PSI), low-pressure alarm (100 PSI), high-temperature alarm (65℃), air leakage alarm, tire sensor low-battery alarm, display low-battery alarm, battery charging protection
Tire sensor	Installation mode	External	External	External	Built-in
	Size	Diameter: 23mm, Height: 15mm	Diameter: 23mm, Height: 15mm	Diameter: 18mm, Height: 13mm	LWH: 693215mm
	Dynamic balance detection	No need	No need	No need	Need
	Battery warranty	2-3 years	1-2 years	2-3 years	5-6 years
	Battery replacement	By user	By user	By user	By user

TPMS Display:

Package Included:

T-U901RV-WF1

T-U901RV-WF2

T-U901RV-TP

T-U901RV-NF+

Tips: Advantages of TPMS

Proactive safety system beforehand
Existing automobile safety systems, such as anti-skid brake system, electronic differential-lock system, electronic power steering, airbags, etc., can only perform their functions to protect life after the accident occurred. So they belong to the “remedial type” safety system. However, TPMS is different from the above-mentioned safety systems. Its function is that when tire pressure is about to fail, TPMS can remind the driver to take safety measures through an alarm signal to eliminate possible accidents. It is a “proactive” safety system.
Improve the service life of tires
Statistics show that if the tire pressure of a driving car is lower than 25% of the standard value for a long time, the service life of the tire can only reach 70% of the design requirement. On the contrary, if the tire pressure is too high, the wear in the middle part of the tire will increase. If the tire pressure is higher than 25% of the normal value, the service life of the tire will drop to 80-85% of the design requirement. The strength of the tire will decrease with the tire temperature increases, the elastic bending of the tire will also increase. And for every 1℃ increase in temperature, the loss of the tire will increase by 2%.
Reduce fuel consumption and benefit environmental protection
According to statistics, the tire pressure is 30% lower than the normal value, the engine needs more horsepower to provide the same speed, and the gasoline consumption will become 110% of the original. Excessive consumption of gasoline not only increases the driving expenses of drivers, but burning more gasoline also produces more car exhaust, which affects air quality. After installing the TPMS, the driver can control the tire pressure value in real time, which can not only reduce fuel consumption, but also reduce the environmental pollution caused by car exhaust.
Avoid unconventional loss of vehicle components
If the car is driven under the condition of high tire pressure, it will cause serious wear of the engine chassis for a long time. If the tire pressure is not uniform, it will cause the brakes to deviate and increase the unconventional loss of the suspension system.
