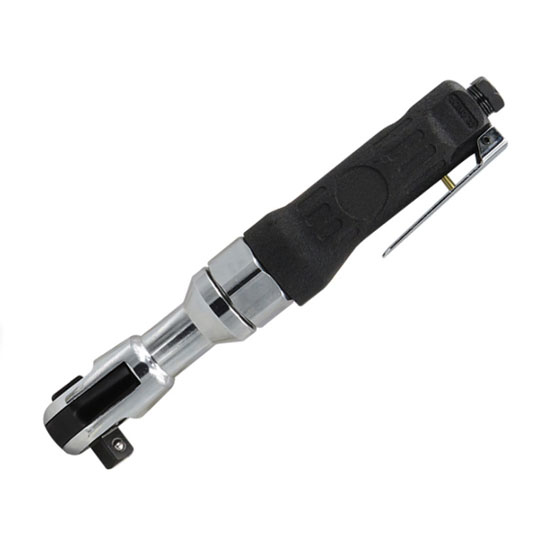

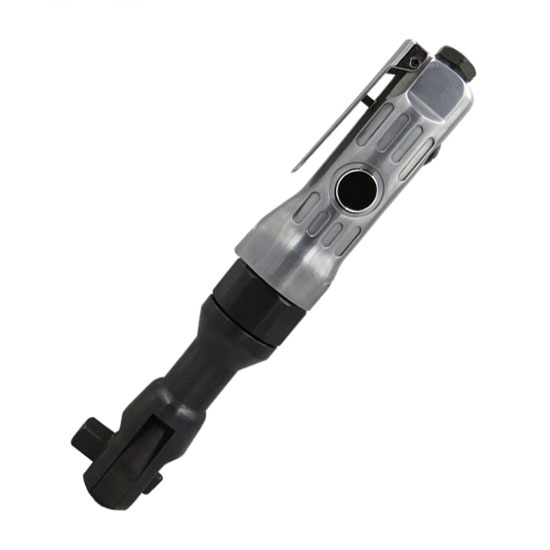

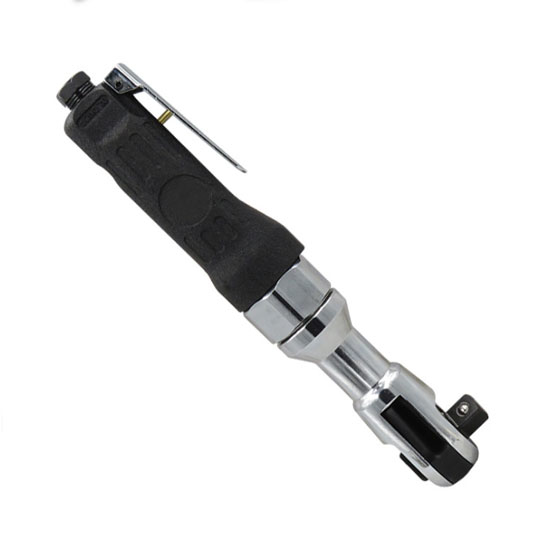

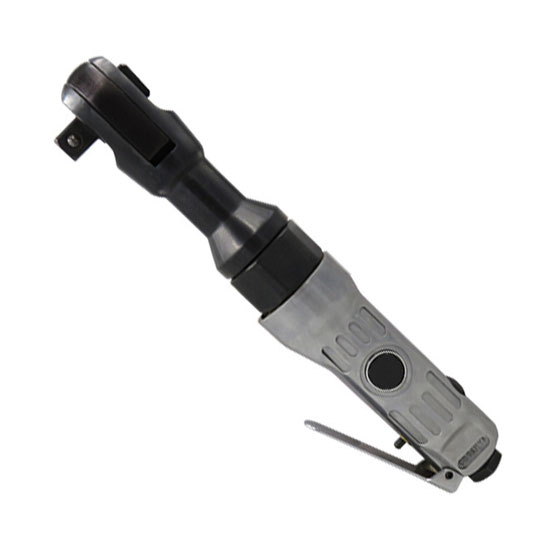

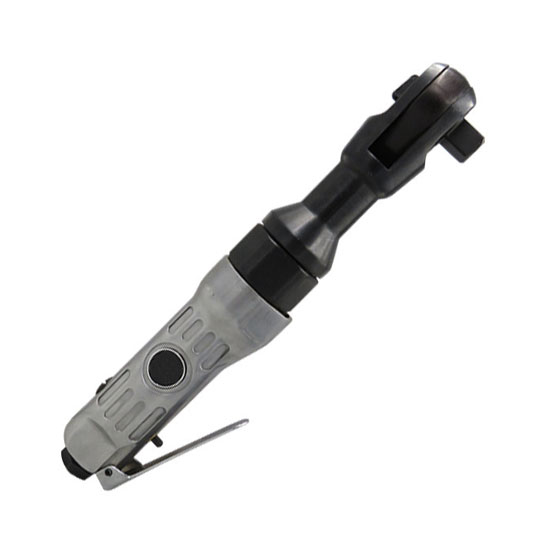

Name: 1/2" Air Ratchet Wrench, 60 ft/lb, 160rpm
Brand: Tool
SKU: 1250
Availability: InStock

1/2″ Air Ratchet Wrench, 60 ft/lb, 160rpm

Size chart

Clothing Size Conversion Chart
Category	US	EU	UK	Chest (in)	Waist (in)	Hips (in)
Men	XS	44	34	32-34	26-28	33-35
	S	46	36	34-36	28-30	35-37
	M	48	38	38-40	32-34	39-41
	L	50	40	42-44	36-38	43-45
	XL	52	42	46-48	40-42	47-49
Women	XS	32	6	31-32	24-25	33-34
	S	34	8	33-34	26-27	35-36
	M	36	10	35-36	28-29	37-38
	L	38-40	12-14	37-39	30-32	39-41
	XL	42	16	40-42	33-35	42-44
Youth	XS	128	7	26-28	23-24	26-28
	S	134	8	28-30	24-25	28-30
	M	140	10	30-32	25-26	30-32
	L	146	12	32-34	26-27	32-34
	XL	152	14	34-36	27-28	34-36

Pants Size Conversion Chart
Category	US	EU	UK	Waist (in)	Hip (in)	Inseam (in)
Men	28	44	28	28	34	30
	30	46	30	30	36	31
	32	48	32	32	38	32
	34	50	34	34	40	33
	36	52	36	36	42	34
Women	0	32	4	24	34	30
	2	34	6	25	35	30
	4	36	8	26	36	31
	6	38	10	27	38	32
	8	40	12	28	40	32

Shoes Size Conversion Chart
Category	US	EU	UK	Foot Length (in)
Men	6	39	5.5	9.25
	7	40	6.5	9.625
	8	41	7.5	10
	9	42	8.5	10.25
	10	43	9.5	10.625
	11	44	10.5	11
	12	45	11.5	11.25
	13	46	12.5	11.625
Women	5	35	2.5	8.5
	6	36	3.5	8.875
	7	37	4.5	9.25
	8	38	5.5	9.625
	9	39	6.5	10
	10	40	7.5	10.25
	11	41	8.5	10.625
	12	42	9.5	11
M (Unisex)	5	37	4.5	8.75
	6	38	5.5	9
	7	39	6.5	9.5
	8	40	7.5	10
	9	41	8.5	10.25
	10	42	9.5	10.625
	11	43	10.5	11
	12	44	11.5	11.25

36 People watching this product now!

1/2 inch air ratchet wrench, best for loosening and tightening fasteners in tight spaces, is widely used in small size cars repair, motorcycle repair or pipeline maintenace. It always helps you finish your repair and maintenance work in a narrow place, which is convenient and labor saving.

Features

1/2″ square drive air rathcet wrench, light weight and compact size.
Forward/reverse switch in the rathcet head, easy to change direction.
Provides 60 ft/lb of maximum torque and 160 rpm of free speed.
Long throttle lever makes it easy to trigger.
Air inlet with filter to keep the debris out and ensure clean working environment.

Specification

Model	T-ARW-260
Drive Size	1 /2 inch
Working Pressure	91 PSI (0.65 MPa)
Air Inlet Size	1/4 inch (6.35mm)
Bolt Capacity	10mm
Hose Size	10 * 6.5mm
Air Consumption	5 CFM
Maximum Torque	60 ft/lb (80Nm)
No Load Speed	160rpm
Power Source	Air Powered
Body Length	260mm
Weight	1.3kg

Details

Tips: How to Maintain the Air Ratchet Wrench?

1. The compressed air should be clean and free of moisture and sweat. Please use an air filter.
2. Before and after use, the pneumatic ratchet wrench should be lubricated.
3. Please unplug the high pressure air source before lubricating.
4. Press the trigger and fill 3-5CC special lubricating oil for air tools in the air inlet.
5. Connect the high pressure air source and start the tool forwards and backwards and turn for 20 seconds, the lubricating oil will be discharged from the air outlet opening.
6. Maintenance must be done every three months. All parts should be inspected and cleaned. The air ratchet should be lubricated before storing to prevent rusting inside the tool.
7. The mobile rack must be lubricated and maintained once a month.

Unplug the air ratchet from the air pipe, and open the screw on the front cover or directly open the front cover.
Apply a proper amount of lubricating oil to the inside of the front cover and the action frame, and then lock the front cover.
Connect the air compressor tube, lightly start the trigger idling for 20-30 seconds, let the oil lubricate the entire action frame group.
