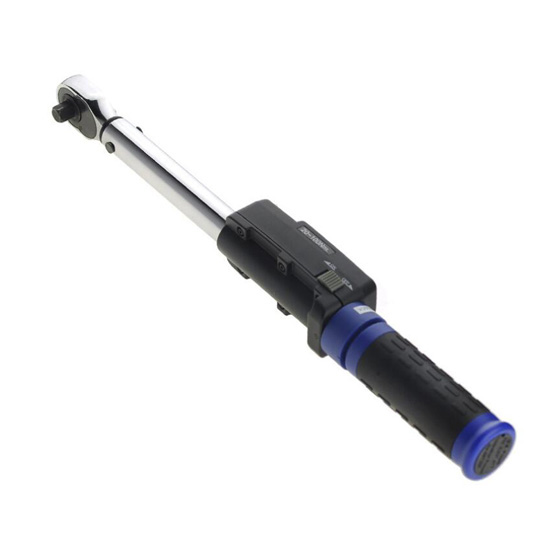

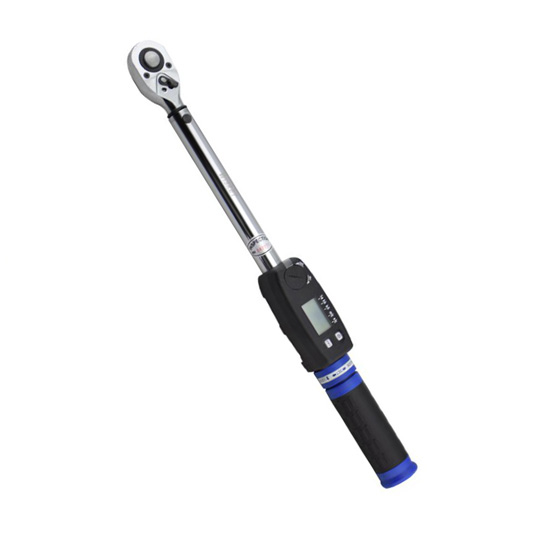

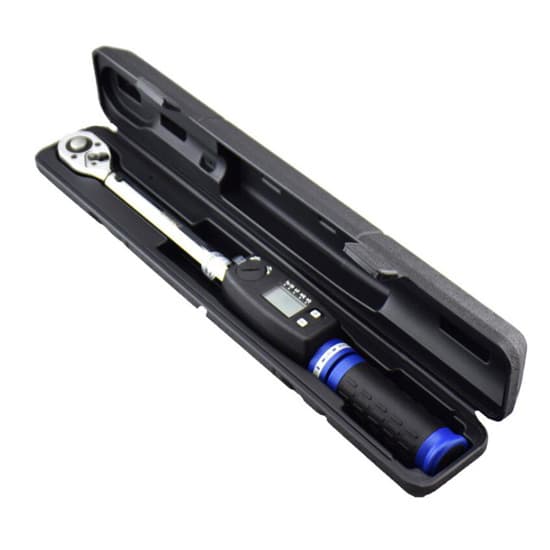

Name: 1/2-in Drive Digital Torque Wrench, 40-200Nm/60-300Nm
Brand: Tool
SKU: 464
Availability: InStock

1/2-in Drive Digital Torque Wrench, 40-200Nm/60-300Nm

Size chart

Clothing Size Conversion Chart
Category	US	EU	UK	Chest (in)	Waist (in)	Hips (in)
Men	XS	44	34	32-34	26-28	33-35
	S	46	36	34-36	28-30	35-37
	M	48	38	38-40	32-34	39-41
	L	50	40	42-44	36-38	43-45
	XL	52	42	46-48	40-42	47-49
Women	XS	32	6	31-32	24-25	33-34
	S	34	8	33-34	26-27	35-36
	M	36	10	35-36	28-29	37-38
	L	38-40	12-14	37-39	30-32	39-41
	XL	42	16	40-42	33-35	42-44
Youth	XS	128	7	26-28	23-24	26-28
	S	134	8	28-30	24-25	28-30
	M	140	10	30-32	25-26	30-32
	L	146	12	32-34	26-27	32-34
	XL	152	14	34-36	27-28	34-36

Pants Size Conversion Chart
Category	US	EU	UK	Waist (in)	Hip (in)	Inseam (in)
Men	28	44	28	28	34	30
	30	46	30	30	36	31
	32	48	32	32	38	32
	34	50	34	34	40	33
	36	52	36	36	42	34
Women	0	32	4	24	34	30
	2	34	6	25	35	30
	4	36	8	26	36	31
	6	38	10	27	38	32
	8	40	12	28	40	32

Shoes Size Conversion Chart
Category	US	EU	UK	Foot Length (in)
Men	6	39	5.5	9.25
	7	40	6.5	9.625
	8	41	7.5	10
	9	42	8.5	10.25
	10	43	9.5	10.625
	11	44	10.5	11
	12	45	11.5	11.25
	13	46	12.5	11.625
Women	5	35	2.5	8.5
	6	36	3.5	8.875
	7	37	4.5	9.25
	8	38	5.5	9.625
	9	39	6.5	10
	10	40	7.5	10.25
	11	41	8.5	10.625
	12	42	9.5	11
M (Unisex)	5	37	4.5	8.75
	6	38	5.5	9
	7	39	6.5	9.5
	8	40	7.5	10
	9	41	8.5	10.25
	10	42	9.5	10.625
	11	43	10.5	11
	12	44	11.5	11.25

15 People watching this product now!

Features

1/2″ square drive digital preset torque wrench accuracy up to ±3%, and available in torque range 25-150Nm/40-200Nm/60-300Nm.
5 torque measurement units for selection and quick conversion in Nm/ft. lb. In/kg/cm.kg/m.
Ratchet torque wrench with quick-release function, and reversible ratchet head, convenient to use.
Battery-powered torque wrench, enegy-saving, continuous operating time up to 700 hours and auto low voltage alarm function.
With easy operation, click-type torque wrench will emit a click sound when the preset value is reached.
Hardened CR-V steel construction for strength and durability, and ergonomic TPR soft-grip handle for comfortable use and long-time work.
Stable, durable and high cost performance. Digital display, easy to read. Perfect for automotive, production line, railway and other occasions.

Specification

Model	T-DS-150	T-DS-200	T-DS-300
Drive Size	1/2 inch	1/2 inch	1/2 inch
Torque Range	25-150Nm	40-200Nm	60-300Nm
Torque Unit	ft-lbs, N-m, inch-lbs, cm-kg2, m-kg
Power	1 X CR2032 DC 3V BATTERY
Accuracy	±3%
Operating Temperature	-20℃～50℃
Auto Shutdown	60 second
Scale Display	Digital
Material	Chrome vanadium steel (CR-V)
Finish	Chrome plated
Overall Length	480mm	480mm	550mm
Weight	1.49kg	1.52kg	1.55kg

Details

Tips: Working principle of click type torque wrench

The principle of a click type torque wrench emitting a click sound is very simple. It can be divided into the following steps to understand:

1. After the torque wrench makes a “click” sound, it indicates that the desired torque value has been reached.

2. The “click” sound issued by the torque wrench is produced by its internal torque release structure, which is composed of three structures: pressure spring, torque release joint, and torque ejector.

3. First, set the required torque value on the torque wrench (the spring is sleeved on the top rod to apply pressure to the torque release joint), lock the torque wrench, and start tightening the bolts. When the bolt reaches the torque value (when the torsion force is greater than the pressure of the spring), the effect of instantaneous disconnection will occur. At the moment when the disjoint effect is produced, the joints are knocked, and the metal shell of the wrench makes a “click” sound. This confirms reaching the torque value like a reminder.
