Name: 1/4-in Drive 1-25Nm Mini Torque Wrench Set for Bicycle
Brand: Tool
SKU: 467
Availability: InStock

1/4-in Drive 1-25Nm Mini Torque Wrench Set for Bicycle

Size chart

Clothing Size Conversion Chart
Category	US	EU	UK	Chest (in)	Waist (in)	Hips (in)
Men	XS	44	34	32-34	26-28	33-35
	S	46	36	34-36	28-30	35-37
	M	48	38	38-40	32-34	39-41
	L	50	40	42-44	36-38	43-45
	XL	52	42	46-48	40-42	47-49
Women	XS	32	6	31-32	24-25	33-34
	S	34	8	33-34	26-27	35-36
	M	36	10	35-36	28-29	37-38
	L	38-40	12-14	37-39	30-32	39-41
	XL	42	16	40-42	33-35	42-44
Youth	XS	128	7	26-28	23-24	26-28
	S	134	8	28-30	24-25	28-30
	M	140	10	30-32	25-26	30-32
	L	146	12	32-34	26-27	32-34
	XL	152	14	34-36	27-28	34-36

Pants Size Conversion Chart
Category	US	EU	UK	Waist (in)	Hip (in)	Inseam (in)
Men	28	44	28	28	34	30
	30	46	30	30	36	31
	32	48	32	32	38	32
	34	50	34	34	40	33
	36	52	36	36	42	34
Women	0	32	4	24	34	30
	2	34	6	25	35	30
	4	36	8	26	36	31
	6	38	10	27	38	32
	8	40	12	28	40	32

Shoes Size Conversion Chart
Category	US	EU	UK	Foot Length (in)
Men	6	39	5.5	9.25
	7	40	6.5	9.625
	8	41	7.5	10
	9	42	8.5	10.25
	10	43	9.5	10.625
	11	44	10.5	11
	12	45	11.5	11.25
	13	46	12.5	11.625
Women	5	35	2.5	8.5
	6	36	3.5	8.875
	7	37	4.5	9.25
	8	38	5.5	9.625
	9	39	6.5	10
	10	40	7.5	10.25
	11	41	8.5	10.625
	12	42	9.5	11
M (Unisex)	5	37	4.5	8.75
	6	38	5.5	9
	7	39	6.5	9.5
	8	40	7.5	10
	9	41	8.5	10.25
	10	42	9.5	10.625
	11	43	10.5	11
	12	44	11.5	11.25

15 People watching this product now!

Features

Industrial grade 1/4″ precision torque wrench, calibrated with accuracy to 4% in CW direction, stable performance and reliable use.
Torque range from 1Nm to 25Nm with 0.2Nm increments.
Mini torque wrench is designed with aluminum alloy handle, light and convenient to carry around.
With polished chrome finish provides rust and corrosion protection.
Designed with precision fine ratchet teeth, easy to operate in tight spaces.
Small torque wrench set includes common bits: Hex 2.5mm, 3mm, 4mm, 5mm, 6mm, 8mm, 10mm and Torx T25, T30.
Best torque wrench set, suitable for bicycles, motorcycle, car repair, home DIY repair and so on.

Specification

Model	T-KB25S
Torque Range	1-25Nm
Torque Increments	0.2Nm
Square Drive Size	1/4 inch
Accuracy (CW)	4%
Finish	Polished chrome
Wrench Length	220mm
Wrench Weight	0.19kg
Package Weight	0.48kg
Package Size	2608080mm

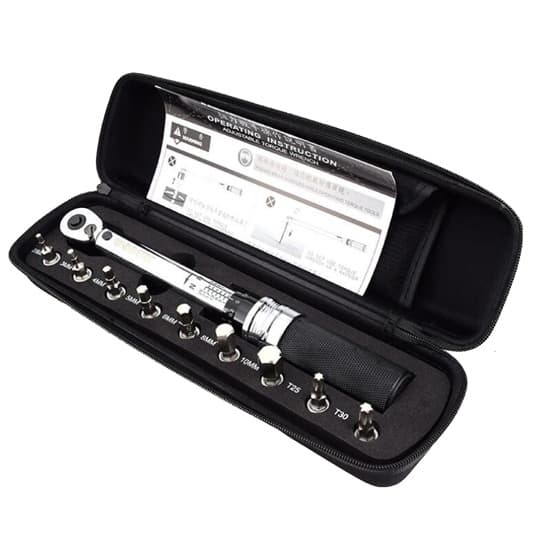

Package Included	① 1-25Nm torque wrench * 1 ② Hex bits: 2.5mm, 3mm, 4mm, 5mm, 6mm, 8mm, 10mm Torx bits: T25, T30 ③ Canvas zipper bag * 1

Torque Wrench Size

Tips: Types of Torque wrench

At this stage, the torque wrench is divided into click type, digital type, beam type (dial type), and slip type (preset/fixed value).

The click type adopts the principle of leverage. When the torque reaches the set torque, there will be a “click” mechanical collision sound. After that, the wrench will become a dead corner, which is equivalent to a dead wrench. If you apply more force, there will be excessive force.

The digital torque wrench is similar to the beam type (dial type), both of which visualize the acting torque. At this stage, the digital display and pointer work on the basis of a preset torque wrench.

The slip type (preset/fixed value) adopts overload protection and automatic unloading mode. When the torque reaches the set torque, it will automatically unload the force (the sound of mechanical collision will also appear), and then the wrench will automatically reset, if you apply force again, It will slip again and there will be no excessive force.

The click type torque wrench is the mainstream product in the current market, which is mainly reflected in the low price. The other three types are relatively expensive. However, due to the increasing requirements of all walks of life and efficiency, the demand for digital, beam type (dial type) and slip type (self-sliding type) torque wrench will be higher and higher
