Name: 1/4-inch Drive 6 Point Metric Socket, 4mm-14mm
Brand: Tool
SKU: 391
Availability: InStock

1/4-inch Drive 6 Point Metric Socket, 4mm-14mm

Size chart

Clothing Size Conversion Chart
Category	US	EU	UK	Chest (in)	Waist (in)	Hips (in)
Men	XS	44	34	32-34	26-28	33-35
	S	46	36	34-36	28-30	35-37
	M	48	38	38-40	32-34	39-41
	L	50	40	42-44	36-38	43-45
	XL	52	42	46-48	40-42	47-49
Women	XS	32	6	31-32	24-25	33-34
	S	34	8	33-34	26-27	35-36
	M	36	10	35-36	28-29	37-38
	L	38-40	12-14	37-39	30-32	39-41
	XL	42	16	40-42	33-35	42-44
Youth	XS	128	7	26-28	23-24	26-28
	S	134	8	28-30	24-25	28-30
	M	140	10	30-32	25-26	30-32
	L	146	12	32-34	26-27	32-34
	XL	152	14	34-36	27-28	34-36

Pants Size Conversion Chart
Category	US	EU	UK	Waist (in)	Hip (in)	Inseam (in)
Men	28	44	28	28	34	30
	30	46	30	30	36	31
	32	48	32	32	38	32
	34	50	34	34	40	33
	36	52	36	36	42	34
Women	0	32	4	24	34	30
	2	34	6	25	35	30
	4	36	8	26	36	31
	6	38	10	27	38	32
	8	40	12	28	40	32

Shoes Size Conversion Chart
Category	US	EU	UK	Foot Length (in)
Men	6	39	5.5	9.25
	7	40	6.5	9.625
	8	41	7.5	10
	9	42	8.5	10.25
	10	43	9.5	10.625
	11	44	10.5	11
	12	45	11.5	11.25
	13	46	12.5	11.625
Women	5	35	2.5	8.5
	6	36	3.5	8.875
	7	37	4.5	9.25
	8	38	5.5	9.625
	9	39	6.5	10
	10	40	7.5	10.25
	11	41	8.5	10.625
	12	42	9.5	11
M (Unisex)	5	37	4.5	8.75
	6	38	5.5	9
	7	39	6.5	9.5
	8	40	7.5	10
	9	41	8.5	10.25
	10	42	9.5	10.625
	11	43	10.5	11
	12	44	11.5	11.25

67 People watching this product now!

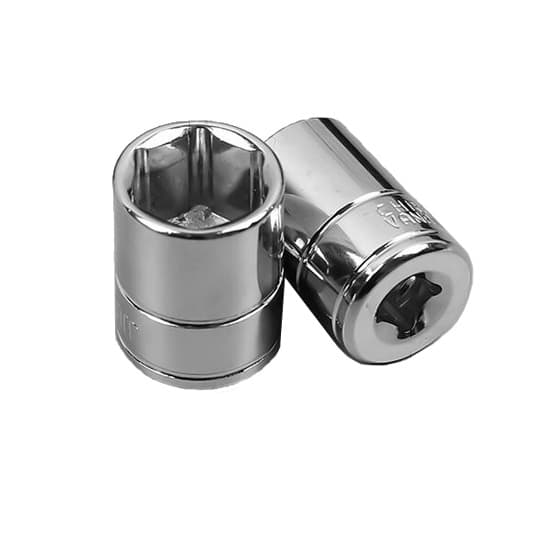

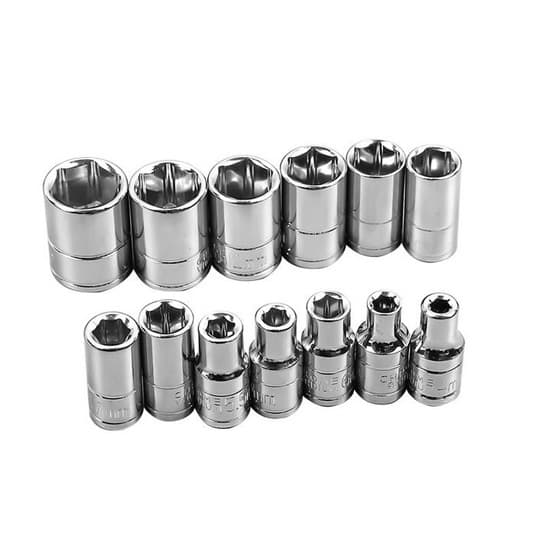

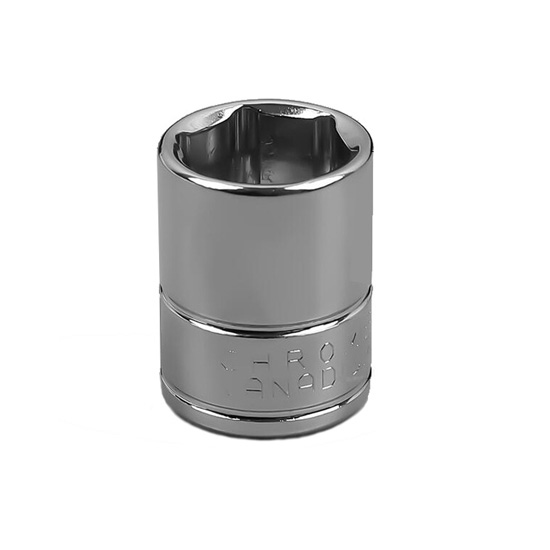

Buy 1/4-inch Drive 6 Point Metric Socket at wholesale price. 6-point regular sockets or deep sockets have Metric sizes ranging from 4mm to 14mm. Made from superior steel with mirror polished, the hex socket features high strength and durability, best for 1/4″ drive hand tools.

Specification

Model	T-RS-S414
Measurement Standard	Metric
Size (Optional)	4mm, 4.5mm, 5mm, 5.5mm, 6mm, 7mm, 8mm, 9mm, 10mm, 11mm, 12mm, 13mm, 14mm
Drive Size	1/4 inch (6.3mm)
Number of Points	6-Point
Overall Length	25mm
Material	Chromium vanadium alloy steel
Finish	Chrome plated
Weight	See below

Dimensions

Size	Square Outer Diameter	Hex Outer Diameter	Weight	Overall Length
4mm	11mm	7mm	10.0g	25mm
4.5mm	11mm	7mm	10.1g	25mm
5mm	11mm	8mm	11.2g	25mm
5.5mm	11mm	9mm	11.5g	25mm
6mm	11mm	9mm	11.5g	25mm
7mm	11mm	10mm	13.5g	25mm
8mm	12mm	12mm	13.0g	25mm
9mm	13mm	13mm	14.4g	25mm
10mm	13mm	13mm	21.2g	25mm
11mm	16mm	16mm	24.0g	25mm
12mm	17mm	17mm	24.1g	25mm
13mm	17mm	17mm	28.3g	25mm
14mm	20mm	20mm	37.0g	25mm

Note: The sizes are approximate.

Details

Tips: Identify 6-point socket good or not

There are many 6-point socket manufacturers on the market now. When choosing, we should learn to distinguish the socket good from bad.

When identifying a 6-point socket, you can first see whether its size meet the standard, whether the edges are smooth, and whether there are scratches on the surface. It is the most basic that the 6-point socket meets the standard, and a good hexagon socket must have smooth edges and no scratches on the surface.

In addition to looking at the appearance, it also depends on the material and the corresponding hardness value when buying 6-point sockets. Some professional equipment can measure the torque and hardness of the sockets, or the salt spray test can be used. Please note that the hardness value of a professional-grade socket should not be lower than HRC40. If it is an impact socket, the hardness must be above HRC44 and it can be barely used. But if there is no high-quality heat treatment, the result is naturally terrible.
