Name: 1/4" Straight Air Die Grinder, 25000rpm
Brand: Tool
SKU: 1134
Availability: InStock

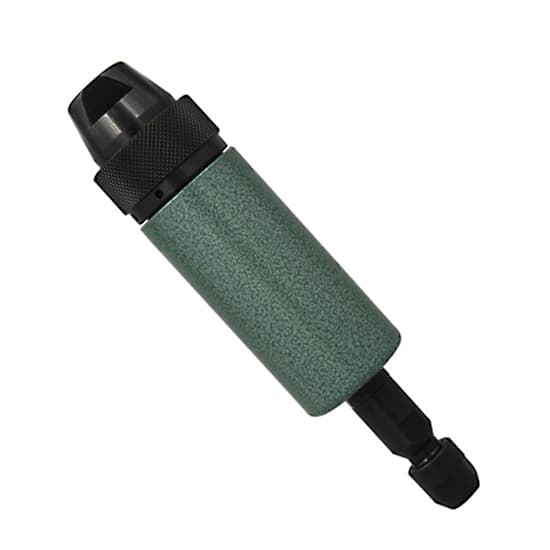

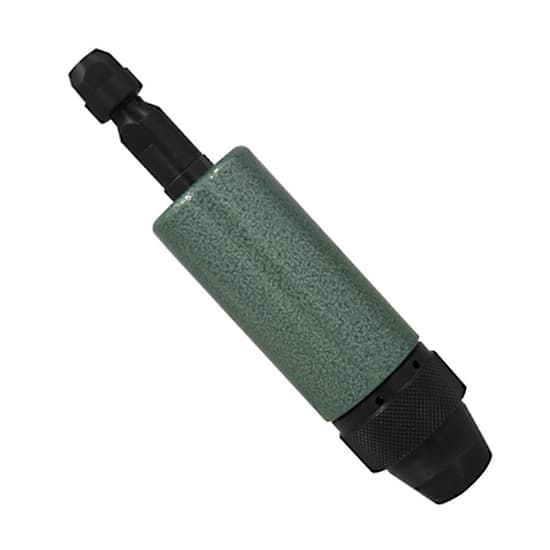

1/4″ Straight Air Die Grinder, 25000rpm

Size chart

Clothing Size Conversion Chart
Category	US	EU	UK	Chest (in)	Waist (in)	Hips (in)
Men	XS	44	34	32-34	26-28	33-35
	S	46	36	34-36	28-30	35-37
	M	48	38	38-40	32-34	39-41
	L	50	40	42-44	36-38	43-45
	XL	52	42	46-48	40-42	47-49
Women	XS	32	6	31-32	24-25	33-34
	S	34	8	33-34	26-27	35-36
	M	36	10	35-36	28-29	37-38
	L	38-40	12-14	37-39	30-32	39-41
	XL	42	16	40-42	33-35	42-44
Youth	XS	128	7	26-28	23-24	26-28
	S	134	8	28-30	24-25	28-30
	M	140	10	30-32	25-26	30-32
	L	146	12	32-34	26-27	32-34
	XL	152	14	34-36	27-28	34-36

Pants Size Conversion Chart
Category	US	EU	UK	Waist (in)	Hip (in)	Inseam (in)
Men	28	44	28	28	34	30
	30	46	30	30	36	31
	32	48	32	32	38	32
	34	50	34	34	40	33
	36	52	36	36	42	34
Women	0	32	4	24	34	30
	2	34	6	25	35	30
	4	36	8	26	36	31
	6	38	10	27	38	32
	8	40	12	28	40	32

Shoes Size Conversion Chart
Category	US	EU	UK	Foot Length (in)
Men	6	39	5.5	9.25
	7	40	6.5	9.625
	8	41	7.5	10
	9	42	8.5	10.25
	10	43	9.5	10.625
	11	44	10.5	11
	12	45	11.5	11.25
	13	46	12.5	11.625
Women	5	35	2.5	8.5
	6	36	3.5	8.875
	7	37	4.5	9.25
	8	38	5.5	9.625
	9	39	6.5	10
	10	40	7.5	10.25
	11	41	8.5	10.625
	12	42	9.5	11
M (Unisex)	5	37	4.5	8.75
	6	38	5.5	9
	7	39	6.5	9.5
	8	40	7.5	10
	9	41	8.5	10.25
	10	42	9.5	10.625
	11	43	10.5	11
	12	44	11.5	11.25

25 People watching this product now!

Mini 1/4 inch collet, 1/4 inch air inlet pneumatic die grinder offers powerful performance and comfort. It has 25000rpm of free speed, straight line and compact aluminim body, durable ball bearing construction for longer life.

Specification

Model	T-KP-623B
Collet Size	1/4″
No-load Speed	25000rpm
Air Inlet Size	1/4″ (6.35mm)
Power Source	Air powered
Average Air Consumption	8 cfm
Working Pressure	90 psi
Net Wight / Gross Weight	0.6kg / 0.9kg
Overall Dimension	170*37mm

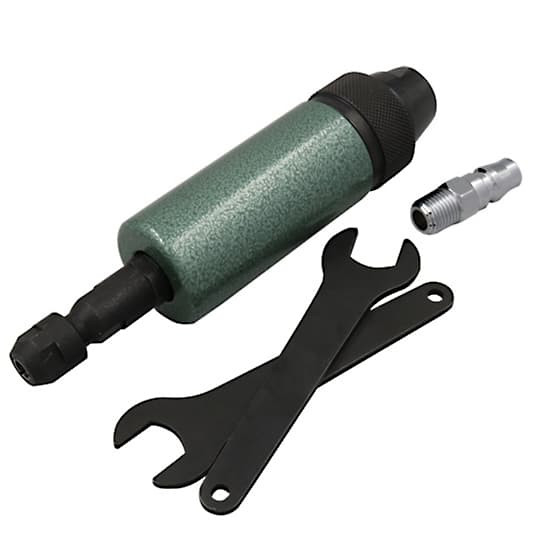

Packing Included	1 * Air Die Grinder 1 * 1/4″ Collet 1 * 1/4″ Air Connector 2 * Small Hand Wrench

Air Die Grinder Details

Tips: How to Maintain the Air Die Grinder?

Air die grinder mainly has the features of high speed, small size and large output power. It is a pneumatic tools widely used for finishing and surface polishing in the mold industry, which also be used for stain removal, metal mold correction, and aluminum casting grinding. Pneumatic die grinder powered by air, with compact structure and easy to operate.

Instructions for maintain the air die grinder:

The compressed air should be clean, free of moisture and debris, please use an air filter.
Air tools need to be lubricated before and after use. Please unplug the high-pressure air source before lubricating, press down the trigger and add 3-5 drops of special lubricating oil for pneumatic tools from the air inlet, connect the high-pressure air source, turn the air grinder forward and backward for 20 seconds, and the lubricating oil will exhaust hole discharge.
Maintenance must be done every three months. All parts should be inspected and cleaned. Lubricant should be added and stored when not in use to prevent rusting inside the air die grinder.
