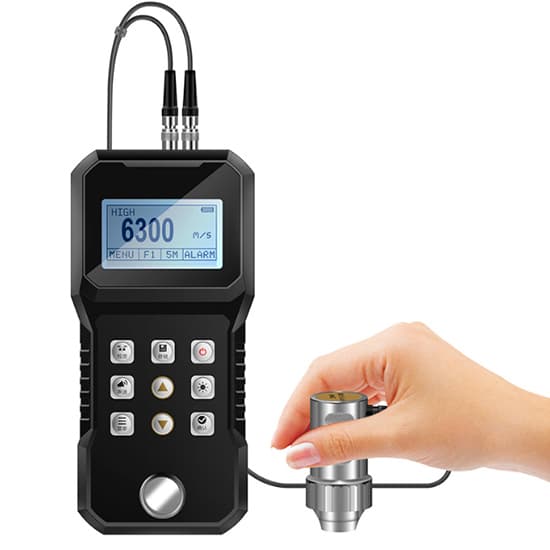

Competitive price ultrasonic thickness tester. 0.01mm resolution, 1000-9999m/s sound speed range, 2000 groups data storage, can do continuous or single measurement. Measuring tool used to monitor various pipelines and pressure vessels in production equipment, monitor their thinning degree after being corroded during use.

Specification

Model	T-BT180C
Measuring Range	1-600mm (Standard)
Accuracy	Thickness ＜10mm: ±0.04mm Thickness ＞10mm: ±0.5%H+0.01mm (H represents the actual thickness of the measured object)
Resolution	0.01mm
Sound Speed Range	1000-9999 m/s
Measurement Mode	Continuous Measurement & Single Measurement
Calibration	4mm (Steel)
Data Storage	2000 Groups
Units	Metric & Imperial
Connect to Computer	√
Shutdown Mode	Manual and Automatic
Power Supply	AA Battery

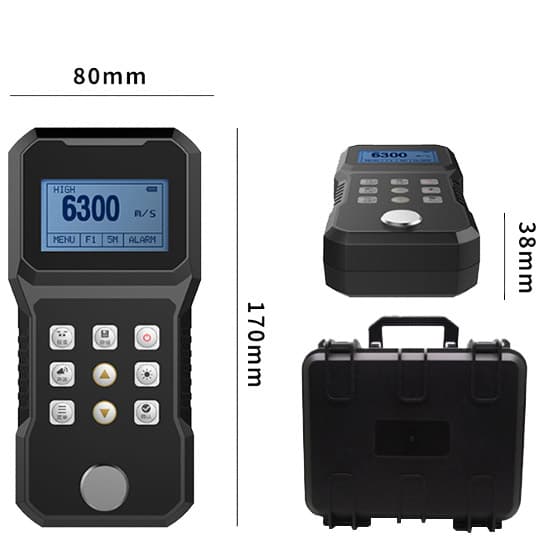

Dimension	1708038mm

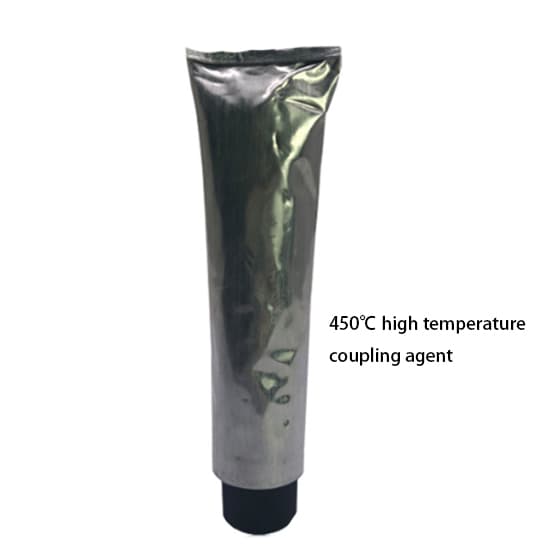

Package Included	11-600mm Ultrasonic Thickness Gauge 1Standard Probe (8/ 10mm) 1Coupling Agent 2AA Batteries 1Packing Box 1Instruction Book 1Appraisal Certificate 1Certificate of Conformity 1*Warranty Card

Details

Applications

Selectable probes

Picture	Type	Model	Frequency (MHZ)	Probe Diameter	Measuring Range	Surface Temperature of the Measured Object	Feature

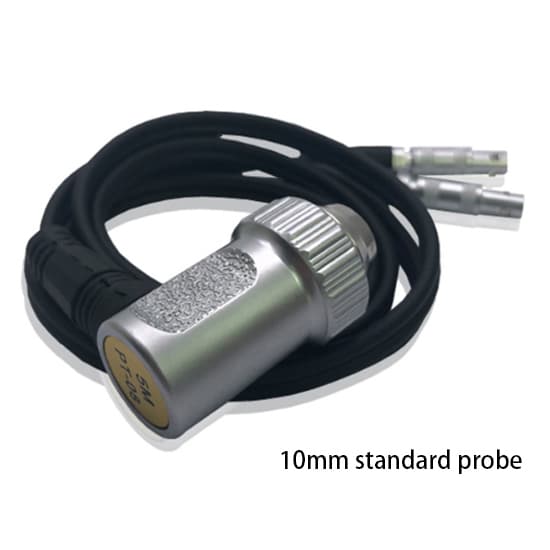

	Standard Probe	N05	5	8/ 10mm	1-600mm (Steel)	-10~60℃	Use at room temperature

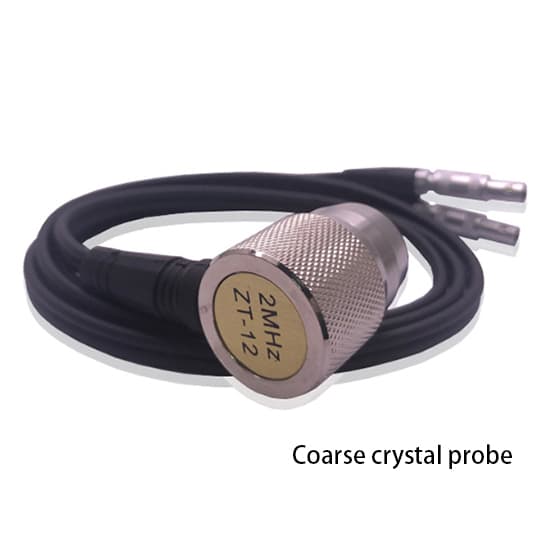

	Coarse Crystal Probe	N02	2	12mm	3-300mm (Steel) 5-40mm (Cast Iron)	-10~60℃	Used to measure crystalline materials such as cast iron

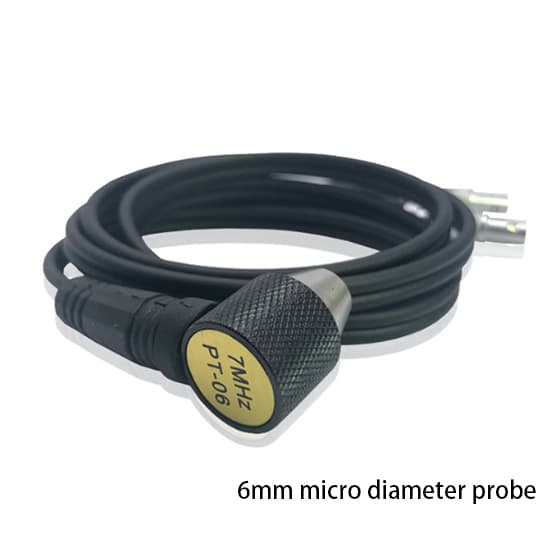

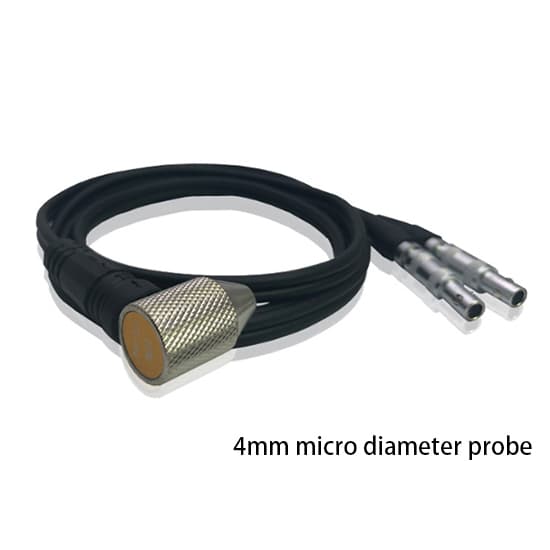

	Micro Diameter Probe	N07	7	4mm/ 6mm	0.65mm-260mm (Steel)	-10~60℃	Used to measure thin walls and small arcs

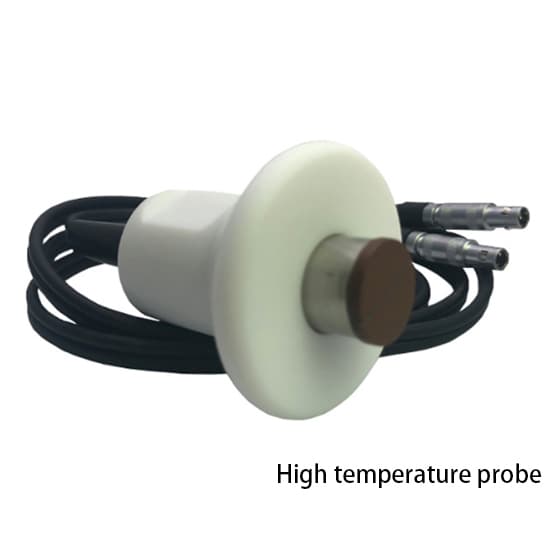

	High Temperature Probe	HT5	5	14mm	3-200mm (Steel)	-10~400℃	Used to measure materials whose temperature is lower than 350℃

Tips: Factors affecting the accuracy of ultrasonic thickness gauges

The effect of sound speed. For occasions where the requirements for measurement results are not high, the speed of sound found from various data can be used for measurement, but the speed of sound found from various data is often significantly different from the actual sound speed of the material. The accurate measurement method is to take a standard sample that is exactly the same as the material to be tested. The standard sample is required to be flat and smooth, and the same thickness as the maximum thickness of the tested sample to determine the sound velocity of the material.
Probe selection. In general, the sound velocity in solid material decreases with the increase of temperature, so the special probe for high temperature sample should be used. When ultrasonic wave passes through the casting and austenitic steel, the scattering attenuation will be serious due to the uneven structure or the bulky grain, which may make the echo obliteration, resulting in no display. Therefore, it is recommended to choose the coarse crystal special probe with lower frequency (2.5 MHz). The radius of curvature of the workpiece is too small, especially when measuring the thickness of small-diameter tube. Since the surface of the probe is usually flat and the contact with the surface is point contact or line contact, the transmission of sound intensity is low (the coupling is not good), the special probe with small diameter can be selected (6mm).
Ultrasonic thickness gauge calibration. Both the probe and the circuit have a certain signal transmission time, which must be subtracted from the total transmission time. This process is called instrument calibration. Ignoring this step will cause a large error in the measurement result. During calibration, press the calibration key of the ultrasonic thickness gauge, apply a little couplant to the probe and lightly press it on the calibration test block that comes with the instrument. When the instrument displays the thickness value of the standard test block indicated in the manual, the calibration is completed. After replacing the battery and probe of the ultrasonic thickness gauge, and before each measurement, it should be calibrated.
