Name: 1.9kW 8.6A Demolition Hammer
Brand: Tool
SKU: 60
Availability: InStock

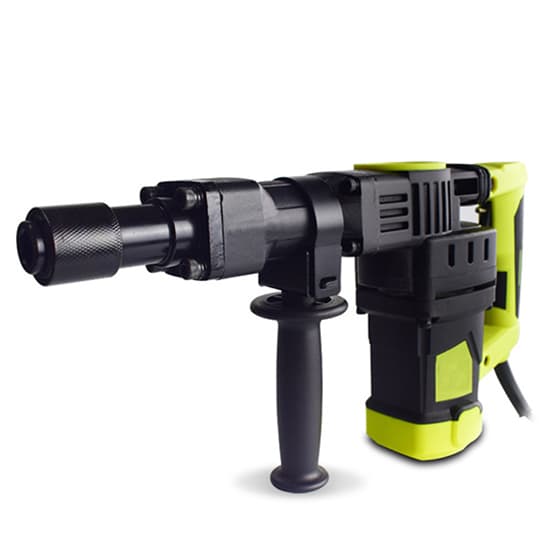

1.9kW 8.6A Demolition Hammer

Size chart

Clothing Size Conversion Chart
Category	US	EU	UK	Chest (in)	Waist (in)	Hips (in)
Men	XS	44	34	32-34	26-28	33-35
	S	46	36	34-36	28-30	35-37
	M	48	38	38-40	32-34	39-41
	L	50	40	42-44	36-38	43-45
	XL	52	42	46-48	40-42	47-49
Women	XS	32	6	31-32	24-25	33-34
	S	34	8	33-34	26-27	35-36
	M	36	10	35-36	28-29	37-38
	L	38-40	12-14	37-39	30-32	39-41
	XL	42	16	40-42	33-35	42-44
Youth	XS	128	7	26-28	23-24	26-28
	S	134	8	28-30	24-25	28-30
	M	140	10	30-32	25-26	30-32
	L	146	12	32-34	26-27	32-34
	XL	152	14	34-36	27-28	34-36

Pants Size Conversion Chart
Category	US	EU	UK	Waist (in)	Hip (in)	Inseam (in)
Men	28	44	28	28	34	30
	30	46	30	30	36	31
	32	48	32	32	38	32
	34	50	34	34	40	33
	36	52	36	36	42	34
Women	0	32	4	24	34	30
	2	34	6	25	35	30
	4	36	8	26	36	31
	6	38	10	27	38	32
	8	40	12	28	40	32

Shoes Size Conversion Chart
Category	US	EU	UK	Foot Length (in)
Men	6	39	5.5	9.25
	7	40	6.5	9.625
	8	41	7.5	10
	9	42	8.5	10.25
	10	43	9.5	10.625
	11	44	10.5	11
	12	45	11.5	11.25
	13	46	12.5	11.625
Women	5	35	2.5	8.5
	6	36	3.5	8.875
	7	37	4.5	9.25
	8	38	5.5	9.625
	9	39	6.5	10
	10	40	7.5	10.25
	11	41	8.5	10.625
	12	42	9.5	11
M (Unisex)	5	37	4.5	8.75
	6	38	5.5	9
	7	39	6.5	9.5
	8	40	7.5	10
	9	41	8.5	10.25
	10	42	9.5	10.625
	11	43	10.5	11
	12	44	11.5	11.25

43 People watching this product now!

Demolition hammer is an electric breaker tool with powerful functions. Concrete demolition, wall drilling, slotted wiring, home decoration, industrial engineering and so on.

Specification

Model	T-04-45
Rated Power	1.9kW
Rated Voltage	220V/50Hz, 240V/60Hz
Rated Current	8.6A, 7.9A
Impact Per Minute	3600 bpm
Drill Chuck Diameter	45mm
Impact Energy	15J
Packing Size	503012cm
Certification	CE

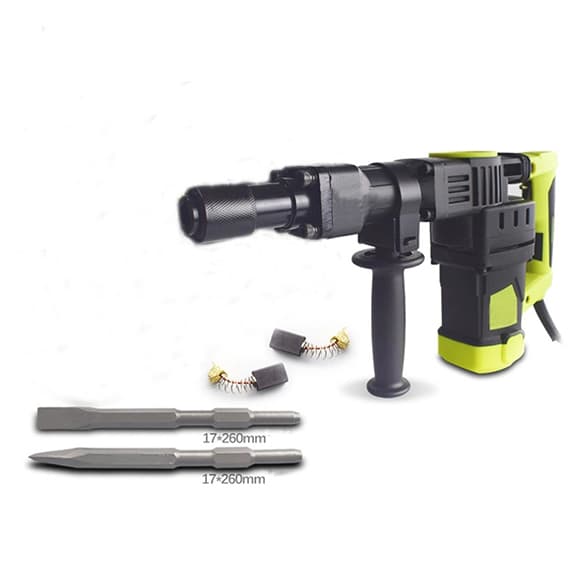

Standard Accessories	flat pick, sharp pick, carbon brush
Weight	6.4kg

Features

Demolition hammer uses large cylinder impact principle to form impact, pure copper motor, strong power, improve work efficiency.
Scientific aerodynamic air outlet effectively dissipates heat and prevents debris from entering the machine.

Demolition Hammer Structure Diagram

Tips: Troubleshooting for impact of demolition hammer.

After demolition hammer is powered, motor runs normally, but there is no impact or the impact is not large, how to deal with it?

Head assembly of demolition hammer is out of order, or the inside of head assembly is dirty and has impurities. After wiping it clean, drip a few drops of thin motor oil or salad oil. If the aprons on connection rod, piston, or hammer are worn out, replace them with new ones.
The big teeth on crankshaft are worn. Replace the big teeth on the crankshaft.
The crankshaft is broken. Replace with a new crankshaft.
The rotor gear is worn. Replace the rotor.
