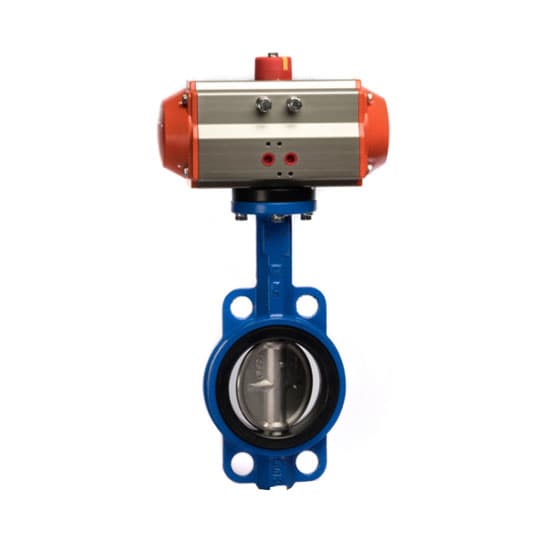

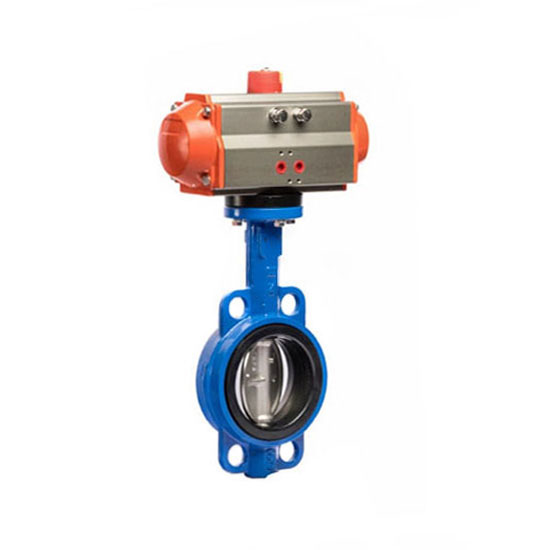

Industrial large diameter 10 inch wafer type butterfly valve with pneumatic actuator for sale, comes with 250mm (DN250) threaded port and stainless steel disc. Our high performance air actuated cast iron butterfly valve can work at high temperature below 120 ℃, which is a reliable air tool for flow control.

Specification

Butterfly Valve	Model	T-PBV-250
	Media	Water, Air, Gas, Oil, Liquid, etc.
	Butterfly Valve Type	Wafer Type
	Port Size	10 inch (DN250, 250mm)
	Body Material	Cast Iron
	Disc Material	Stainless Steel (SS)
	Seat Material	EPDM
	Working Temperature	-10 ℃ to 120 ℃
Pneumatic Actuator	Model	T-AT145D
	Actuator Type	Double Acting
	Bore Size	145mm
	Air Pressure	0.25 – 0.8MPa, PN16
	Pressure Difference	0 – 1.0MPa
	Air Supply Port	1/4 inch
	Actuator Material	Aluminum Alloy

Pneumatic Actuator Dimension

Q:Φ102/Φ125mm
A: 418mm
B: 167mm
C: 80mm
D: 87mm
E: 218mm
F: 178mm
G: 30mm
H: 80mm,
I: PF
J: M6
K: 1/4″
O: 30mm
P: 62mm
S: 4mm
T: 4mm
U: 12mm
V: 24mm
W: 16mm
X: 32mm

Body Dimension

DN	L	H1	H2	A	D	D1	N-φd
250	60.5	203	510	418	357	319	4-29

Tips: Difference Between pneumatic wafer type butterfly valve and lug type butterfly valve

A pneumatic butterfly valve is an air tool that controls solid, gas and liquid flow in a pipeline, which applies to various fields from pharmaceuticals to manufacturing industrials and food processing. Wafer style butterfly valves and lug style butterfly valves are the main butterfly valves. However, what are differences between them?
Air actuated lug type butterfly valve
Lug type butterfly valves are mainly made from cast iron and stainless steel. They are used for bolt connection through their full threaded tap lugs positioned on the valve flange. The lug type butterfly valves with a pneumatic actuator, and the disc and seat material can be customized according to the flowing media.
Pneumatic wafer type butterfly valve
Wafer type butterfly valves are designed for four holes aligned with the connected pipe. They can be clamped between the pipe and the two flanges. The wafer type butter valve with a pneumatic actuator we provide has an EPDM valve seat that gives strong seal between the valve and the flange connection. Stainless steel disc will allow the pneumatic wafer butterfly valve to control gases and liquids from -10 ℃ to 120 ℃.
