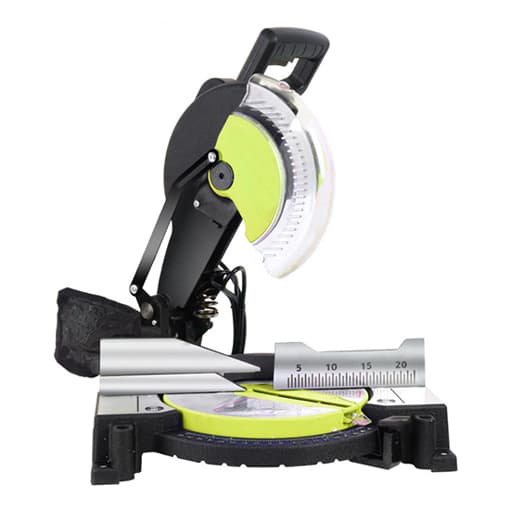

The compound miter saw with 10 inch (255mm) saw blade. Power supply supports 220V or 240V. It is the best electric miter saw for cutting aluminum, wood, steel and water pipe. Compact structure and small size.

Specification

Model	T-XJX02-255
Motor Power	1,800W
Rated Voltage	220V/50Hz, 240V/60Hz
Rated Current	8.0A, 7.5A
Saw Blade Diameter	10 inch (255mm)
Sawing Capacity
0°-0° right angle positive cutting	70*140mm
45°-0° bevel angle positive cutting	42*120mm
0°-45° right angle bevel cutting	70*90mm
45°-45° bevel angle bevel cutting	42*90mm
No-Load Speed	6,000 rpm
Driving Mode	Gear Driven
Weight	12 kg
Accessories	1 saw blade, 1 Allen wrench, 2 carbon brushes, 1 movable clamp, 1 dust collection bag, 1 angle ruler

Compound Miter Saw Structure Diagram

Angle Adjustment Diagram

Saw Blade Installation for Compound Miter Saw

Unscrew the protective cover screw 1.
Loosen the screw 2.
Move the cover back.
Press and hold the spindle lock.
Loosen the screws.
Remove a pressing plate.
Install the saw blade.
Tighten the spindle screw.
Tighten the screw 1.
Tighten the screw 2.

Tips: The difference between compound miter saw and miter saw.

Miter saws are used for vertical cutting. The cut is perpendicular to surface of the material to be cut. Miter saw helps to cut a true and consistent angle measured from front edge of the board, and helps to repeat the same angle in subsequent cuts.
Vertical angle of the cutting for compound saw is variable. (The vertical angle is measured relative to main surface of the board). Compound saw can be set to achieve and maintain an accurate and repeatable vertical angle relative to surface of the board.
Compound miter saw combines the flexibility of a compound saw and a miter saw, so cutting can be combined with different angles over the entire depth and width of board.
