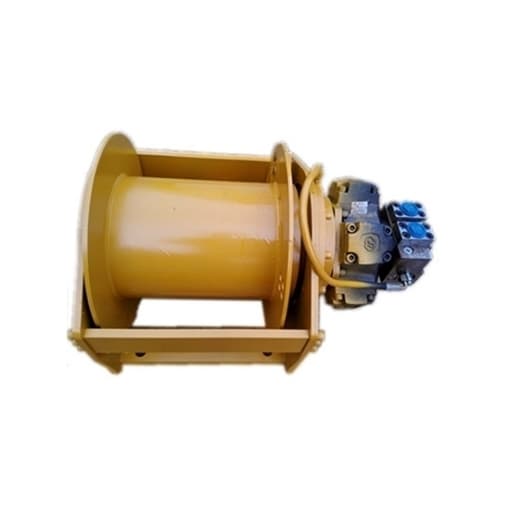

Name: 10000 lbs Hydraulic Winch for Tractor/Truck/Skid Steer
Brand: Tool
SKU: 254
Availability: InStock

10000 lbs Hydraulic Winch for Tractor/Truck/Skid Steer

Size chart

Clothing Size Conversion Chart
Category	US	EU	UK	Chest (in)	Waist (in)	Hips (in)
Men	XS	44	34	32-34	26-28	33-35
	S	46	36	34-36	28-30	35-37
	M	48	38	38-40	32-34	39-41
	L	50	40	42-44	36-38	43-45
	XL	52	42	46-48	40-42	47-49
Women	XS	32	6	31-32	24-25	33-34
	S	34	8	33-34	26-27	35-36
	M	36	10	35-36	28-29	37-38
	L	38-40	12-14	37-39	30-32	39-41
	XL	42	16	40-42	33-35	42-44
Youth	XS	128	7	26-28	23-24	26-28
	S	134	8	28-30	24-25	28-30
	M	140	10	30-32	25-26	30-32
	L	146	12	32-34	26-27	32-34
	XL	152	14	34-36	27-28	34-36

Pants Size Conversion Chart
Category	US	EU	UK	Waist (in)	Hip (in)	Inseam (in)
Men	28	44	28	28	34	30
	30	46	30	30	36	31
	32	48	32	32	38	32
	34	50	34	34	40	33
	36	52	36	36	42	34
Women	0	32	4	24	34	30
	2	34	6	25	35	30
	4	36	8	26	36	31
	6	38	10	27	38	32
	8	40	12	28	40	32

Shoes Size Conversion Chart
Category	US	EU	UK	Foot Length (in)
Men	6	39	5.5	9.25
	7	40	6.5	9.625
	8	41	7.5	10
	9	42	8.5	10.25
	10	43	9.5	10.625
	11	44	10.5	11
	12	45	11.5	11.25
	13	46	12.5	11.625
Women	5	35	2.5	8.5
	6	36	3.5	8.875
	7	37	4.5	9.25
	8	38	5.5	9.625
	9	39	6.5	10
	10	40	7.5	10.25
	11	41	8.5	10.625
	12	42	9.5	11
M (Unisex)	5	37	4.5	8.75
	6	38	5.5	9
	7	39	6.5	9.5
	8	40	7.5	10
	9	41	8.5	10.25
	10	42	9.5	10.625
	11	43	10.5	11
	12	44	11.5	11.25

42 People watching this product now!

A hydraulic winch is a powerful mechanical device driven by hydraulic power, widely used for heavy-duty lifting and pulling. It comprises a hydraulic motor, a drum or spool, and a control valve system for precise operation.

Specification

Model		T-HW50S-50
The 1st Layer	Pull	10000 lbs (5 ton)
	Rope Speed	0~35 m/min
Working Pressure Differential		20 Mpa
Oil Flow Supply		120 L/min
Rope Diameter		16mm
Hydraulic Motor		BMR-400
Planetary Reduction Ratio		1:6

Layer		Wire Rope Capacity
1		18m
2		38m
3		60m
4		85m
5		110m

Note: Never exceed working load limit.

Dimensions (Unit: mm)

Tips: Safe and Efficient Use of a Hydraulic Winch

Regular Maintenance: Check hydraulic hoses, fittings, and fluid levels regularly to ensure smooth operation and avoid unexpected breakdowns.
Avoid Sharp Angles: Keep the rope aligned straight to prevent damage to both the rope and winch, especially under heavy loads.
Operate Gradually: Start the winch at a slow speed to control tension and reduce strain on both the equipment and the load.
Use Protective Gear: Always wear gloves and safety equipment when handling the winch to prevent injury from cable snaps or sudden movements.
Follow Load Guidelines: Ensure the load doesn’t exceed the winch’s rated capacity to maintain safety and prolong the lifespan of the equipment.
