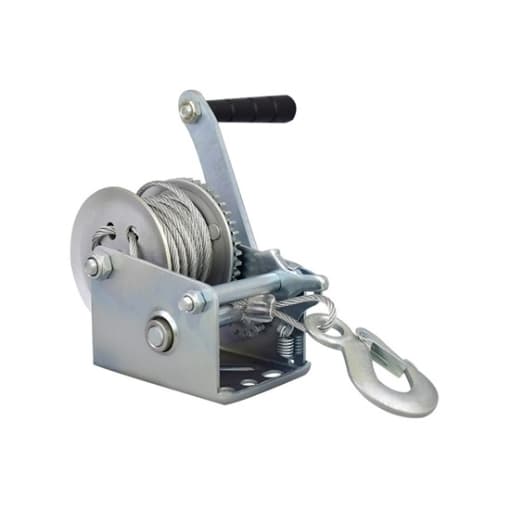

Name: 1200 lbs Hand Crank Winch with Brake
Brand: Tool
SKU: 242
Availability: InStock

1200 lbs Hand Crank Winch with Brake

Size chart

Clothing Size Conversion Chart
Category	US	EU	UK	Chest (in)	Waist (in)	Hips (in)
Men	XS	44	34	32-34	26-28	33-35
	S	46	36	34-36	28-30	35-37
	M	48	38	38-40	32-34	39-41
	L	50	40	42-44	36-38	43-45
	XL	52	42	46-48	40-42	47-49
Women	XS	32	6	31-32	24-25	33-34
	S	34	8	33-34	26-27	35-36
	M	36	10	35-36	28-29	37-38
	L	38-40	12-14	37-39	30-32	39-41
	XL	42	16	40-42	33-35	42-44
Youth	XS	128	7	26-28	23-24	26-28
	S	134	8	28-30	24-25	28-30
	M	140	10	30-32	25-26	30-32
	L	146	12	32-34	26-27	32-34
	XL	152	14	34-36	27-28	34-36

Pants Size Conversion Chart
Category	US	EU	UK	Waist (in)	Hip (in)	Inseam (in)
Men	28	44	28	28	34	30
	30	46	30	30	36	31
	32	48	32	32	38	32
	34	50	34	34	40	33
	36	52	36	36	42	34
Women	0	32	4	24	34	30
	2	34	6	25	35	30
	4	36	8	26	36	31
	6	38	10	27	38	32
	8	40	12	28	40	32

Shoes Size Conversion Chart
Category	US	EU	UK	Foot Length (in)
Men	6	39	5.5	9.25
	7	40	6.5	9.625
	8	41	7.5	10
	9	42	8.5	10.25
	10	43	9.5	10.625
	11	44	10.5	11
	12	45	11.5	11.25
	13	46	12.5	11.625
Women	5	35	2.5	8.5
	6	36	3.5	8.875
	7	37	4.5	9.25
	8	38	5.5	9.625
	9	39	6.5	10
	10	40	7.5	10.25
	11	41	8.5	10.625
	12	42	9.5	11
M (Unisex)	5	37	4.5	8.75
	6	38	5.5	9
	7	39	6.5	9.5
	8	40	7.5	10
	9	41	8.5	10.25
	10	42	9.5	10.625
	11	43	10.5	11
	12	44	11.5	11.25

50 People watching this product now!

The 1200 lbs Hand Crank Winch with Brake is a durable, manual winching solution designed for secure lifting, lowering, and pulling tasks. With a built-in brake for added safety, it prevents slippage and ensures controlled operation. Made from rolled steel with a 4mm x 8m cable, this winch is perfect for car trailers, boat trailers, and off-road recovery, offering a working load of 1200 lbs and a breaking strength of 2000 lbs. Compact and portable, it’s ideal for both light and medium-duty applications.

Specification

Model: T-H1200LB
Working Load: 1200 lbs (0.6 ton)
Lifting Tension: 800 lbs (0.4 ton)
Breaking Strength: 2000 lbs (1 ton)
Material: Rolled Steel
Gear Ratio: 3.6:1
Cable (Dia x L): Ø4mm x 8m
Dimension: 183mm (L) x 90mm (W) x 151mm (H)
Weight: 3.3kg

Note: Never exceed working load limit.

Details

Tips: What is a hand winch?

A hand winch is a manual device used to lift, lower, or pull heavy objects by winding a cable, rope, or strap around a drum. It operates by turning a crank or handle, which rotates gears inside the winch to increase mechanical advantage, allowing users to move heavy loads with less effort. Hand winches are commonly used for a variety of tasks such as:

Pulling boats onto trailers
Lifting equipment or materials
Vehicle recovery
Tensioning ropes or cables

Hand winches are versatile, portable, and typically don’t require a power source, making them useful in remote or off-grid locations. Some models also include a braking mechanism to control load movement and prevent accidental slipping during use.
