15° Air Coil Siding Nailer
Price range: $41.99 through $111.61
| Category | US | EU | UK | Chest (in) | Waist (in) | Hips (in) |
|---|---|---|---|---|---|---|
| Men | XS | 44 | 34 | 32-34 | 26-28 | 33-35 |
| S | 46 | 36 | 34-36 | 28-30 | 35-37 | |
| M | 48 | 38 | 38-40 | 32-34 | 39-41 | |
| L | 50 | 40 | 42-44 | 36-38 | 43-45 | |
| XL | 52 | 42 | 46-48 | 40-42 | 47-49 | |
| Women | XS | 32 | 6 | 31-32 | 24-25 | 33-34 |
| S | 34 | 8 | 33-34 | 26-27 | 35-36 | |
| M | 36 | 10 | 35-36 | 28-29 | 37-38 | |
| L | 38-40 | 12-14 | 37-39 | 30-32 | 39-41 | |
| XL | 42 | 16 | 40-42 | 33-35 | 42-44 | |
| Youth | XS | 128 | 7 | 26-28 | 23-24 | 26-28 |
| S | 134 | 8 | 28-30 | 24-25 | 28-30 | |
| M | 140 | 10 | 30-32 | 25-26 | 30-32 | |
| L | 146 | 12 | 32-34 | 26-27 | 32-34 | |
| XL | 152 | 14 | 34-36 | 27-28 | 34-36 |
| Category | US | EU | UK | Waist (in) | Hip (in) | Inseam (in) |
|---|---|---|---|---|---|---|
| Men | 28 | 44 | 28 | 28 | 34 | 30 |
| 30 | 46 | 30 | 30 | 36 | 31 | |
| 32 | 48 | 32 | 32 | 38 | 32 | |
| 34 | 50 | 34 | 34 | 40 | 33 | |
| 36 | 52 | 36 | 36 | 42 | 34 | |
| Women | 0 | 32 | 4 | 24 | 34 | 30 |
| 2 | 34 | 6 | 25 | 35 | 30 | |
| 4 | 36 | 8 | 26 | 36 | 31 | |
| 6 | 38 | 10 | 27 | 38 | 32 | |
| 8 | 40 | 12 | 28 | 40 | 32 |
| Category | US | EU | UK | Foot Length (in) |
|---|---|---|---|---|
| Men | 6 | 39 | 5.5 | 9.25 |
| 7 | 40 | 6.5 | 9.625 | |
| 8 | 41 | 7.5 | 10 | |
| 9 | 42 | 8.5 | 10.25 | |
| 10 | 43 | 9.5 | 10.625 | |
| 11 | 44 | 10.5 | 11 | |
| 12 | 45 | 11.5 | 11.25 | |
| 13 | 46 | 12.5 | 11.625 | |
| Women | 5 | 35 | 2.5 | 8.5 |
| 6 | 36 | 3.5 | 8.875 | |
| 7 | 37 | 4.5 | 9.25 | |
| 8 | 38 | 5.5 | 9.625 | |
| 9 | 39 | 6.5 | 10 | |
| 10 | 40 | 7.5 | 10.25 | |
| 11 | 41 | 8.5 | 10.625 | |
| 12 | 42 | 9.5 | 11 | |
| M (Unisex) | 5 | 37 | 4.5 | 8.75 |
| 6 | 38 | 5.5 | 9 | |
| 7 | 39 | 6.5 | 9.5 | |
| 8 | 40 | 7.5 | 10 | |
| 9 | 41 | 8.5 | 10.25 | |
| 10 | 42 | 9.5 | 10.625 | |
| 11 | 43 | 10.5 | 11 | |
| 12 | 44 | 11.5 | 11.25 |

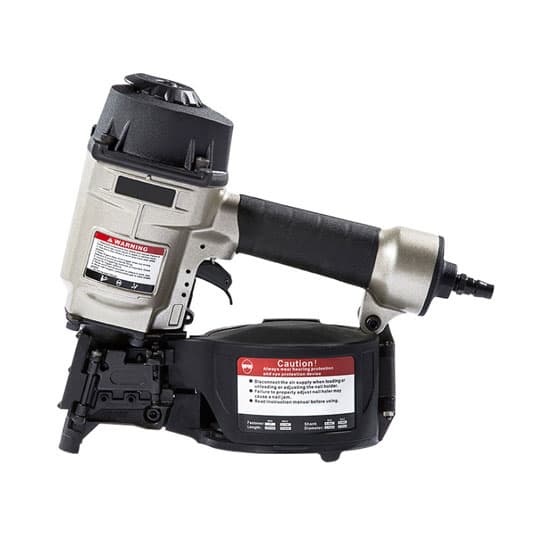

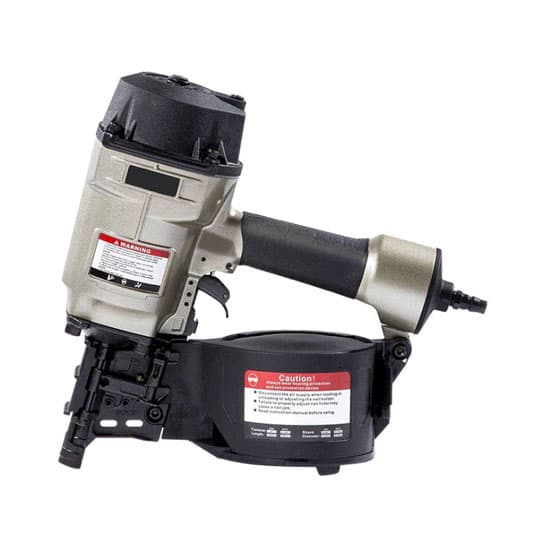

Cheap 15 degree air coil siding nailer accepts 2.1 to 2.9mm in thickness, 1 inch to 2-3/4 inch in length wire collated coil nails to work. The air outlet has 360° exhaust direction, which adapts to different positions. The pneumatic coil nail gun is designed for side loading system and easy to adjust length, which has such uses as fencing, making wooden box, pallet and frame, building log cabin among other things.
Specification
| Model | T-ACSN-55 | T-ACSN-70 |
| Nail Thickness | 2.1 – 2.3mm | 2.3 – 2.9mm |
| Nail Crown | 5.2 – 5.8mm | 6 – 6.8mm |
| Nail Length | 1″ – 2-1/4″ (25 – 57mm) | 1-3/4″ – 2-3/4″ (45 – 70mm) |
| Magazine Angle | 15 Degree | 15 Degree |
| Working Pressure | 80 – 120 PSI (0.6 – 0.8 Mpa) | 80 – 120 PSI (0.6 – 0.8 Mpa) |
| Load Capacity | 300 – 400 PCS | 225 – 300 PCS |
| Air Inlet | 1/4 inch | 1/4 inch |
| Body Dimension | 330 * 320 * 135mm | 380 * 360 * 140mm |
| Net Weight | 2.8kg | 3.84kg |
Nail Dimensions
Applications
Tips: What is a 15° Air Coil Siding Nailer?
15 degree air coil siding nailer accepts 2.1 – 2.9mm in thickness, 1″ to 2-3/4″ in length coil nails for nailing wooden pallets and boxes, fences among other things. The magazine angle of our pneumatic coil siding nail gun is designed for 15 degrees, and the coil nails should be collated with 15 degree wire. It can save time and increase efficiency. When the air coil siding nail gun is working, due to the firing pin has a piston-type movement in the air cylinder, lubricating oil must be filled from time to time to reduce the wear of the components. In addition, thanks to the pneumatic coil siding nail gun requires compressed air to work as well as the air contains a lot of water, an oil-water separator device should be installed between the air coil nailer and the air compressor. This device acts as a dehumidifier. Provided you work in a dusty environment, it is better to clean the coil siding nail gun regularly to prevent dust from affecting the trigger and nail pusher.
