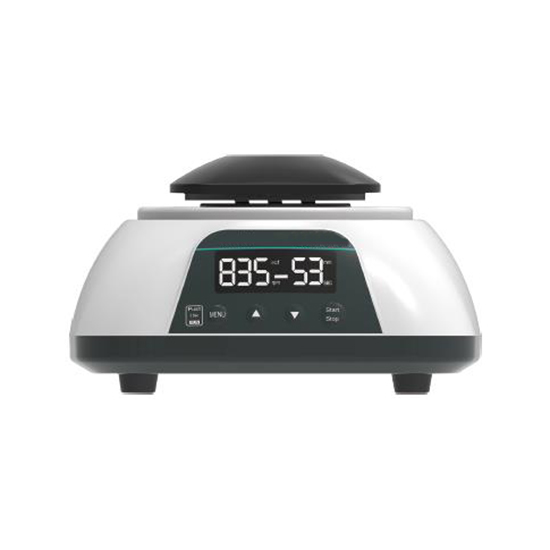

The digital vortex mixer is a professional laboratory instrument, it can matched with various modules, for mixing test tube, centrifuge tube and flask. It is a portable vortex mixer/shaker/stirrer with multifunction.

Specification

Model	T-VM-500Pro	T-VM-500S
Control Mode	PWM speed adjustment	knob speed adjustment
Digital Display	LCD	No display
Rated Voltage	100-240VAC, 50/60Hz
Motor Power	20W
Amplitude	4.5mm (circular oscillation)
Max. Sample Mixing Capacity	50mL4/15mL9/5-10mL12/2mL24
Operation Mode	TOUCH/RUN
Speed Range	TOUCH: 0-3,000 rpm RUN: 0-1,500 rpm
Timing	1-99min
Timed	1-59s
Shell Protection Level	IP21
Allowable Ambient Temperature	5-40℃, 80%RH
Weight	0.61 kg	0.6 kg
Attachment	power cable, product manual, 2 standard modules

Features

In addition to mixing test tube and centrifuge tube in laboratory, the mini vortex mixer can mix nail polishes, eyelash adhesives, paints, glues, tattoo ink, pigments, etc.
The mini laboratory vortex mixer is driven by brushless motor, durable and high efficiency.
Simple Touch and Go functions make the mini laboratory vortex mixer easy to use. Small and compact design conserves bench space, yet the mixer is powerful enough to deliver robust vortex mixing at 3000 rpm.

Digital Laboratory Vortex Mixer Structure Diagram

Non-Digital Laboratory Vortex Mixer Structure Diagram

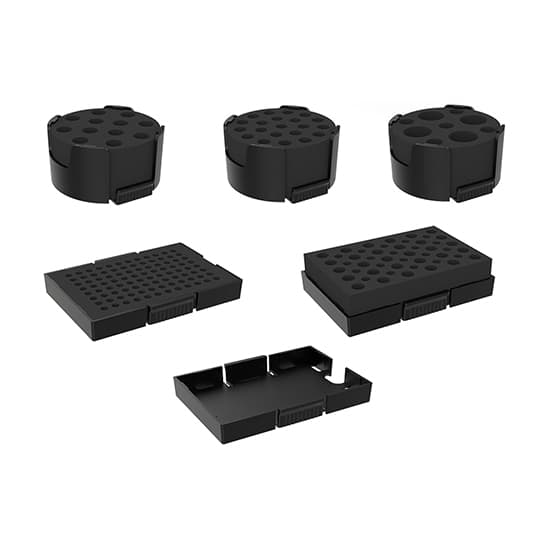

Test Tube Block Specification

Test Tube Block Model	Picture	Test Tube Block Applicable Range
T-VM501*		Centrifuge tube, test tube
T-VM502*		Flask, multiple tube
T-VM503		φ12mm blood collection tube*21
T-VM504		15mL centrifuge tube12 or 5mL centrifuge tube12
T-VM505		50mL centrifuge tube4 15mL centrifuge tube5
T-VM506		0.2mL centrifuge tube*96 or 96-hole plate
T-VM507		1.5mL centrifuge tube20 2.0mL centrifuge tube30
T-VM508		Cell culture plate
