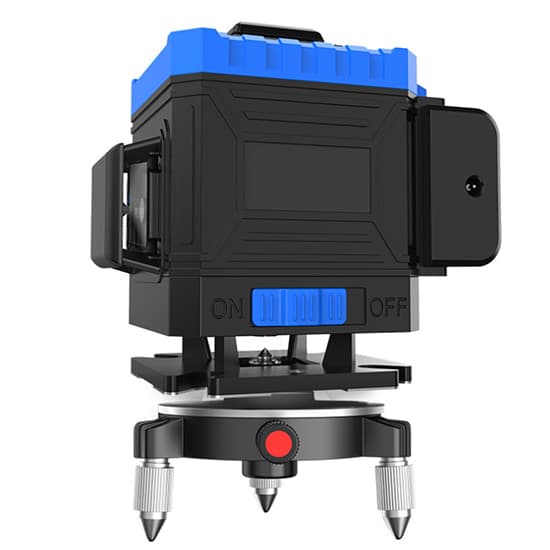

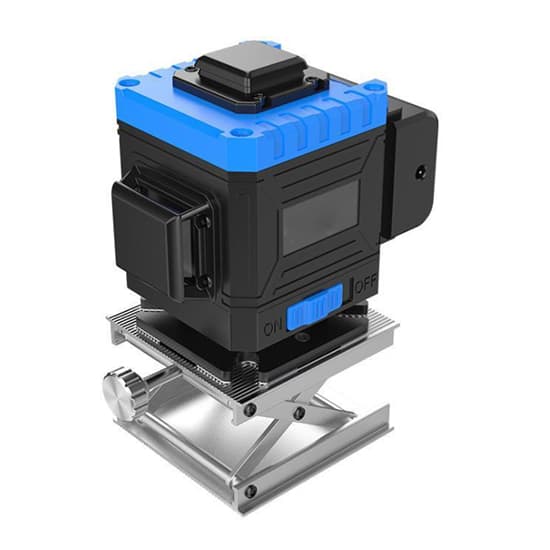

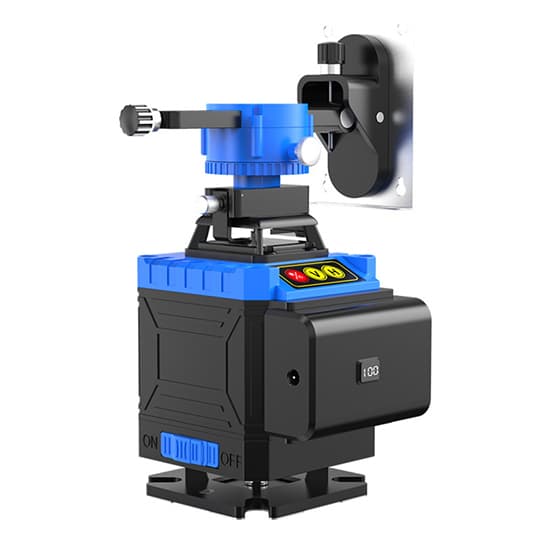

Name: 16 Line Rotary Green Laser Level
Brand: Tool
SKU: 1480
Availability: InStock

16 Line Rotary Green Laser Level

Size chart

Clothing Size Conversion Chart
Category	US	EU	UK	Chest (in)	Waist (in)	Hips (in)
Men	XS	44	34	32-34	26-28	33-35
	S	46	36	34-36	28-30	35-37
	M	48	38	38-40	32-34	39-41
	L	50	40	42-44	36-38	43-45
	XL	52	42	46-48	40-42	47-49
Women	XS	32	6	31-32	24-25	33-34
	S	34	8	33-34	26-27	35-36
	M	36	10	35-36	28-29	37-38
	L	38-40	12-14	37-39	30-32	39-41
	XL	42	16	40-42	33-35	42-44
Youth	XS	128	7	26-28	23-24	26-28
	S	134	8	28-30	24-25	28-30
	M	140	10	30-32	25-26	30-32
	L	146	12	32-34	26-27	32-34
	XL	152	14	34-36	27-28	34-36

Pants Size Conversion Chart
Category	US	EU	UK	Waist (in)	Hip (in)	Inseam (in)
Men	28	44	28	28	34	30
	30	46	30	30	36	31
	32	48	32	32	38	32
	34	50	34	34	40	33
	36	52	36	36	42	34
Women	0	32	4	24	34	30
	2	34	6	25	35	30
	4	36	8	26	36	31
	6	38	10	27	38	32
	8	40	12	28	40	32

Shoes Size Conversion Chart
Category	US	EU	UK	Foot Length (in)
Men	6	39	5.5	9.25
	7	40	6.5	9.625
	8	41	7.5	10
	9	42	8.5	10.25
	10	43	9.5	10.625
	11	44	10.5	11
	12	45	11.5	11.25
	13	46	12.5	11.625
Women	5	35	2.5	8.5
	6	36	3.5	8.875
	7	37	4.5	9.25
	8	38	5.5	9.625
	9	39	6.5	10
	10	40	7.5	10.25
	11	41	8.5	10.625
	12	42	9.5	11
M (Unisex)	5	37	4.5	8.75
	6	38	5.5	9
	7	39	6.5	9.5
	8	40	7.5	10
	9	41	8.5	10.25
	10	42	9.5	10.625
	11	43	10.5	11
	12	44	11.5	11.25

18 People watching this product now!

16 line green laser level tool automatically self leveling at ±3°, 8 vertical line and 8 horizontal line, allowing 360° free rotation of the laser level and projection of the laser line at any position or angle. Best for floor tiles, doors and windows, furniture woodworking installation, wallpaper hanging, drilling applications.

Specification

Model	T-SL-16
No.of Laser Lines	16
Leveling Type	8 vertical line, 8 horizontal line, 10 crossing line
Laser Wavelength	635nm
Self-Leveling Range	±3° (when angle of inclination ≤3°, laser level auto self-leveling; when angle of inclination ≥3°, buzzer alarm.)
Launch Angle	≥120°
Horizontal Accuracy	5m±1mm
Vertical Accuracy	5m±1mm
Plumb Dot Accuracy	±1mm at 1.5m
Line Width	1.5mm
Line Color	Emerald green
Power Source	Lithium battery / DC charger
Battery Type	2 x 5800mhA rechargeable lithium battery (72 hours standby)
IP Rating	IP 54
Operation Temperature	-10℃~50℃
Wall Distance	7mm
Ground Distance	6mm
Function Key	Fingerprint touch buttons
Laser Head	Made in Germany
Material	Alloy body + plastic shell
Working Time	12 hours
Remote Control	Yes
Slash Mode	Yes
Application	Ceiling, home decoration, door and window installation, etc
Weight	3kg
Packing Included	1 x 8 Line Green Laser Level 2 x 5800mA Lithium Battery 1 x Power Adapter 1 x Magnetic Bracket 1 x Adjustable Lifting Platform 1 x Magnetic Pivoting Base 1 x Hand-shell Carrying Case 1 x Remote Control 1 x Conversion Screw 1 x User Manual

Details

Tips: How to measure verticality with a laser level?

When measuring the verticality of large parts, use a level to roughly adjust the reference surface to a horizontal position. Use a level to measure step by step on the reference surface and the measured surface, and use the graphic method to determine the reference orientation, and then calculate the perpendicularity error of the measured surface relative to the reference.

When measuring the verticality of small parts, first place the laser level on the reference surface, read the value of one end of the bubble, and then use the side of the laser level to stick to the surface to be measured. The first reading value of the bubble deviation from the reference surface is The verticality error of the measured surface.

When using a laser level meter, ensure that the working surface of the laser level meter and the surface of the workpiece are clean to prevent dirt from affecting the accuracy of the measurement. When measuring the horizontal plane, in the same measuring position, the level should be adjusted to the opposite direction before second measuring. When moving the level, the working surface of the level is not allowed to rub against the surface of the workpiece, and it should be lifted and placed.
