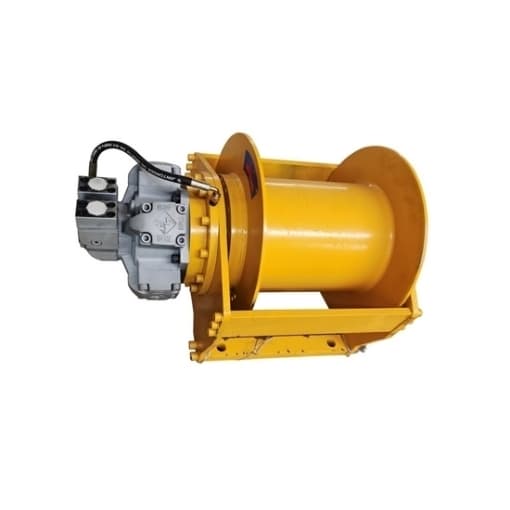

16000 lbs Hydraulic Winch for Tractor/Truck/Skid Steer
Original price was: $11,656.97.$1,165.99Current price is: $1,165.99.
Size chart
| Category | US | EU | UK | Chest (in) | Waist (in) | Hips (in) |
|---|---|---|---|---|---|---|
| Men | XS | 44 | 34 | 32-34 | 26-28 | 33-35 |
| S | 46 | 36 | 34-36 | 28-30 | 35-37 | |
| M | 48 | 38 | 38-40 | 32-34 | 39-41 | |
| L | 50 | 40 | 42-44 | 36-38 | 43-45 | |
| XL | 52 | 42 | 46-48 | 40-42 | 47-49 | |
| Women | XS | 32 | 6 | 31-32 | 24-25 | 33-34 |
| S | 34 | 8 | 33-34 | 26-27 | 35-36 | |
| M | 36 | 10 | 35-36 | 28-29 | 37-38 | |
| L | 38-40 | 12-14 | 37-39 | 30-32 | 39-41 | |
| XL | 42 | 16 | 40-42 | 33-35 | 42-44 | |
| Youth | XS | 128 | 7 | 26-28 | 23-24 | 26-28 |
| S | 134 | 8 | 28-30 | 24-25 | 28-30 | |
| M | 140 | 10 | 30-32 | 25-26 | 30-32 | |
| L | 146 | 12 | 32-34 | 26-27 | 32-34 | |
| XL | 152 | 14 | 34-36 | 27-28 | 34-36 |
| Category | US | EU | UK | Waist (in) | Hip (in) | Inseam (in) |
|---|---|---|---|---|---|---|
| Men | 28 | 44 | 28 | 28 | 34 | 30 |
| 30 | 46 | 30 | 30 | 36 | 31 | |
| 32 | 48 | 32 | 32 | 38 | 32 | |
| 34 | 50 | 34 | 34 | 40 | 33 | |
| 36 | 52 | 36 | 36 | 42 | 34 | |
| Women | 0 | 32 | 4 | 24 | 34 | 30 |
| 2 | 34 | 6 | 25 | 35 | 30 | |
| 4 | 36 | 8 | 26 | 36 | 31 | |
| 6 | 38 | 10 | 27 | 38 | 32 | |
| 8 | 40 | 12 | 28 | 40 | 32 |
| Category | US | EU | UK | Foot Length (in) |
|---|---|---|---|---|
| Men | 6 | 39 | 5.5 | 9.25 |
| 7 | 40 | 6.5 | 9.625 | |
| 8 | 41 | 7.5 | 10 | |
| 9 | 42 | 8.5 | 10.25 | |
| 10 | 43 | 9.5 | 10.625 | |
| 11 | 44 | 10.5 | 11 | |
| 12 | 45 | 11.5 | 11.25 | |
| 13 | 46 | 12.5 | 11.625 | |
| Women | 5 | 35 | 2.5 | 8.5 |
| 6 | 36 | 3.5 | 8.875 | |
| 7 | 37 | 4.5 | 9.25 | |
| 8 | 38 | 5.5 | 9.625 | |
| 9 | 39 | 6.5 | 10 | |
| 10 | 40 | 7.5 | 10.25 | |
| 11 | 41 | 8.5 | 10.625 | |
| 12 | 42 | 9.5 | 11 | |
| M (Unisex) | 5 | 37 | 4.5 | 8.75 |
| 6 | 38 | 5.5 | 9 | |
| 7 | 39 | 6.5 | 9.5 | |
| 8 | 40 | 7.5 | 10 | |
| 9 | 41 | 8.5 | 10.25 | |
| 10 | 42 | 9.5 | 10.625 | |
| 11 | 43 | 10.5 | 11 | |
| 12 | 44 | 11.5 | 11.25 |
70
People watching this product now!
Description
A hydraulic winch is a powerful mechanical device driven by hydraulic power, commonly used for heavy lifting and pulling. It includes a hydraulic motor, a drum or spool, and a control valve system for precise operation.
Specification
| Model | T-HW80-80 | |
| The 1st Layer | Pull | 16000 lbs (8 ton) |
| Rope Speed | 0~25 m/min | |
| Working Pressure Differential | 16 Mpa | |
| Oil Flow Supply | 120 L/min | |
| Rope Diameter | 22mm | |
| Hydraulic Motor | BMR-350 | |
| Planetary Reduction Ratio | 1:22 | |
| Layer | Wire Rope Capacity | |
| 1 | 20m | |
| 2 | 44m | |
| 3 | 68m | |
| 4 | 94m | |
Note: Never exceed working load limit.
Dimensions (Unit: mm)
Tips: Hydraulic Winch Troubleshooting
- Check Hydraulic Fluid Levels: Low fluid can cause power loss or sluggish operation. Refill as needed.
- Inspect for Leaks: Look for leaks in hoses, seals, or connections, which can reduce efficiency and cause pressure loss.
- Examine the Motor: A faulty motor can lead to inconsistent performance. Ensure it’s functioning smoothly.
- Test the Control Valve: If the winch isn’t responding well, the control valve may need adjustment or replacement.
- Check Rope Tension: Improper rope tension can strain the winch. Adjust it to the recommended level.
- Inspect Planetary Gears: Worn or damaged gears can affect pulling power. Regularly check and replace if needed.
- Listen for Unusual Sounds: Grinding or knocking sounds may indicate internal wear and should be addressed promptly.
Using these tips can help maintain your hydraulic winch and quickly identify issues for smoother operation.
