Name: 16mm Magnetic Spark Plug Socket
Brand: Tool
SKU: 886
Availability: InStock

16mm Magnetic Spark Plug Socket

Size chart

Clothing Size Conversion Chart
Category	US	EU	UK	Chest (in)	Waist (in)	Hips (in)
Men	XS	44	34	32-34	26-28	33-35
	S	46	36	34-36	28-30	35-37
	M	48	38	38-40	32-34	39-41
	L	50	40	42-44	36-38	43-45
	XL	52	42	46-48	40-42	47-49
Women	XS	32	6	31-32	24-25	33-34
	S	34	8	33-34	26-27	35-36
	M	36	10	35-36	28-29	37-38
	L	38-40	12-14	37-39	30-32	39-41
	XL	42	16	40-42	33-35	42-44
Youth	XS	128	7	26-28	23-24	26-28
	S	134	8	28-30	24-25	28-30
	M	140	10	30-32	25-26	30-32
	L	146	12	32-34	26-27	32-34
	XL	152	14	34-36	27-28	34-36

Pants Size Conversion Chart
Category	US	EU	UK	Waist (in)	Hip (in)	Inseam (in)
Men	28	44	28	28	34	30
	30	46	30	30	36	31
	32	48	32	32	38	32
	34	50	34	34	40	33
	36	52	36	36	42	34
Women	0	32	4	24	34	30
	2	34	6	25	35	30
	4	36	8	26	36	31
	6	38	10	27	38	32
	8	40	12	28	40	32

Shoes Size Conversion Chart
Category	US	EU	UK	Foot Length (in)
Men	6	39	5.5	9.25
	7	40	6.5	9.625
	8	41	7.5	10
	9	42	8.5	10.25
	10	43	9.5	10.625
	11	44	10.5	11
	12	45	11.5	11.25
	13	46	12.5	11.625
Women	5	35	2.5	8.5
	6	36	3.5	8.875
	7	37	4.5	9.25
	8	38	5.5	9.625
	9	39	6.5	10
	10	40	7.5	10.25
	11	41	8.5	10.625
	12	42	9.5	11
M (Unisex)	5	37	4.5	8.75
	6	38	5.5	9
	7	39	6.5	9.5
	8	40	7.5	10
	9	41	8.5	10.25
	10	42	9.5	10.625
	11	43	10.5	11
	12	44	11.5	11.25

70 People watching this product now!

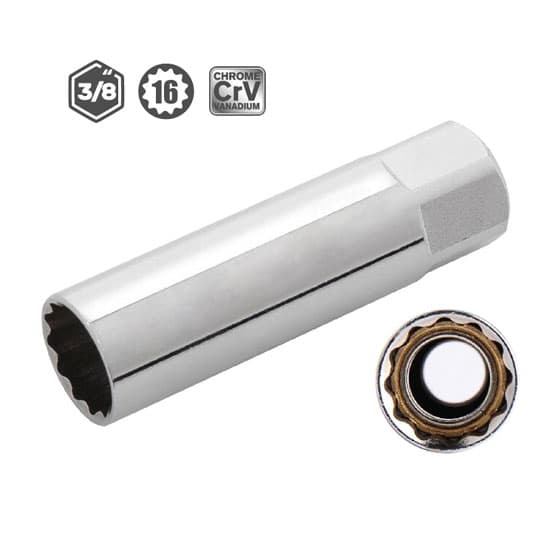

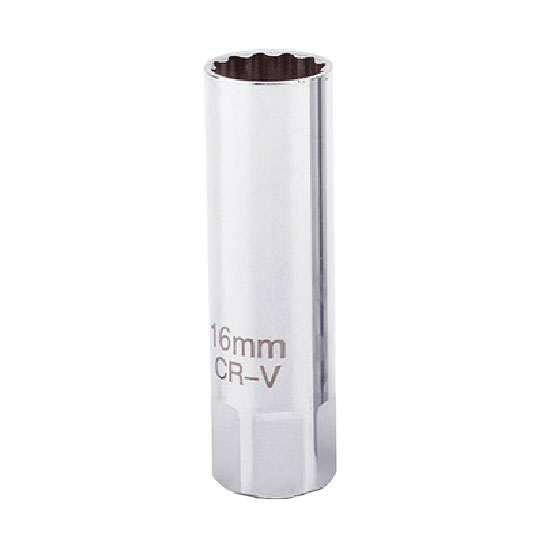

16mm 12-point magnetic spark plug socket with wall thickness 1.7mm, length 63mm, drive size 3/8″.

Specification:

Model	T-DT190TW-06
Weight	150g
Contact point	12-point
Measurement standard	Metric
Diameter	16mm
Outer Diameter	20mm
Length	63mm
Wall thickness	1.7mm
Material	Chrome-vanadium steel
Inside part	Magnetic ring
Drive size	3/8 inch

7 tips for using spark plug socket:
Note: Before installing the spark plug, make sure that the new spark plug matches the automobile engine to be installed (clearance, calorific value, etc.).

Now new cars will add a cover to the engine, which plays a role of beauty and heat insulation. To remove the spark plug, the engine cover must be removed first. Of course, for a V-type engine with an intake manifold located in the middle of the engine, some accessories such as the intake pipe must be removed.
To remove the spark plug, pull out the ignition coil. The ignition coil can be pulled out after removing the wire plug on the ignition coil and the bolt on the ignition coil. The ignition coil and the cylinder are sealed with rubber, and a little force is required when pulling out.
To remove the spark plug, a wrench, an extension rod and a hexagon socket are required. Spark plugs used in cars are generally disassembled with a 16mm 6-point socket.
The 6-point magnetic spark plug socket can take out the spark plug when it is unscrewed. If the spark plug is not magnetic, it is recommended that insert a thick piece of double-sided tape in the socket, and you can also take out the spark plug that is unscrewed.
If possible, apply a proper amount of “thread anti-seize agent” on the new spark plug thread before installing. When installing the spark plug, fix the spark plug (use magnetic socket or double-sided tape) on the socket and then install the spark plug back to its original position. It is forbidden to put the spark plug directly down from the mounting hole. The height difference may cause the side electrode to deform, resulting in a smaller gap, leading to premature flashover and affecting engine smoothness.
If a torque wrench is used to pre-tighten the spark plug torque, the thread parameter is “M14*1.25mm” for the light metal spark plugs used in general cars. All the types of spark plug can be found online by car model. So car owners can learn about the thread parameters in advance.
Without a torque wrench, the spark plug can be pre-tightened. The pre-tightening angle of the spark plug of the flat base is 90°, and the pre-tightening angle of the conical base is 15°.
