20 People watching this product now!

Electric circular saw is handheld circular saw for MDF, bamboo plywood, plywood, solid wood, solid wood plate, PVC pipes, etc. Saw blade diameter of the electric circular saw is 185mm (7-1/4 inch). It has compact structure, small size, portable and easy to operate.

Specification

Model	T-XMY03-185
Rated Voltage	220V (50Hz), 240V (60Hz)
Rated Power	1500W
Rated Current	6.8A, 6.3A
No-Load Speed	6,000 rpm
Blade Diameter	185mm (7-1/4 inch)

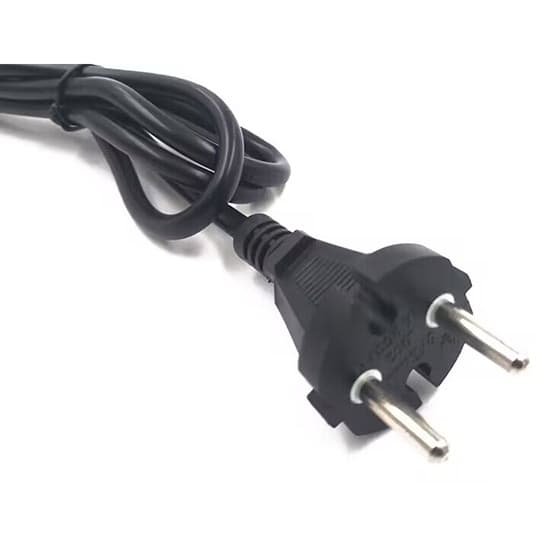

Plug Type	Europlug
Cutting Capacity	90°: 0-63.5mm 45°: 0-44mm
Weight	4 kg

Hand-Held Electric Circular Saw Functions

Hand-Held Electric Circular Saw Details

Tips: Structural characteristics of hand-held electric circular saw.

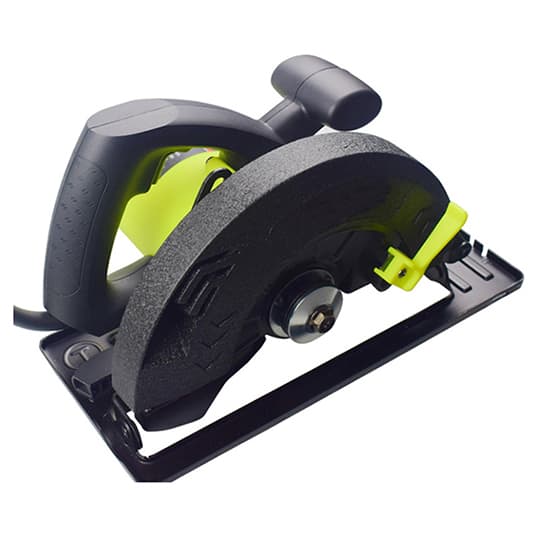

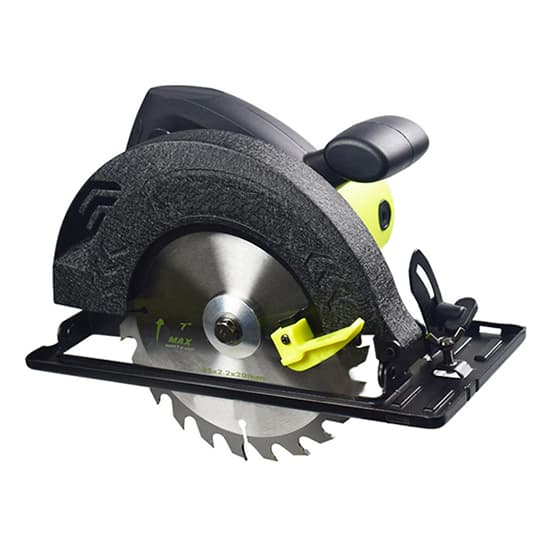

Appearance structure of the hand-held electric circular saw is top handle-type. Main compositions are motor, reduction box, protective cover, adjustment mechanism, base plate, handle, switch, non-reconnectable plug, and circular saw blade, etc.
Motor is single-phase universal motor. According to whether there is additional insulation between stator, rotor and ground, it can be divided into single-insulated electric circular saw and double-insulated electric circular saw.
Adjustment mechanism of the hand-held electric circular saw consists of depth adjustment plate, angle adjustment plate, fastening nut and bottom plate. Loosen the fastening nut to adjust bottom plate up and down to the required cutting depth. Loosen the bevel adjustment wing nut on the front of bottom plate to adjust angle. Adjust to the required angle (0°～45°), and then tighten the nut.
