Name: 18V 1/8" Cordless Electric Die Grinder
Brand: Tool
SKU: 180
Availability: InStock

18V 1/8″ Cordless Electric Die Grinder

Size chart

Clothing Size Conversion Chart
Category	US	EU	UK	Chest (in)	Waist (in)	Hips (in)
Men	XS	44	34	32-34	26-28	33-35
	S	46	36	34-36	28-30	35-37
	M	48	38	38-40	32-34	39-41
	L	50	40	42-44	36-38	43-45
	XL	52	42	46-48	40-42	47-49
Women	XS	32	6	31-32	24-25	33-34
	S	34	8	33-34	26-27	35-36
	M	36	10	35-36	28-29	37-38
	L	38-40	12-14	37-39	30-32	39-41
	XL	42	16	40-42	33-35	42-44
Youth	XS	128	7	26-28	23-24	26-28
	S	134	8	28-30	24-25	28-30
	M	140	10	30-32	25-26	30-32
	L	146	12	32-34	26-27	32-34
	XL	152	14	34-36	27-28	34-36

Pants Size Conversion Chart
Category	US	EU	UK	Waist (in)	Hip (in)	Inseam (in)
Men	28	44	28	28	34	30
	30	46	30	30	36	31
	32	48	32	32	38	32
	34	50	34	34	40	33
	36	52	36	36	42	34
Women	0	32	4	24	34	30
	2	34	6	25	35	30
	4	36	8	26	36	31
	6	38	10	27	38	32
	8	40	12	28	40	32

Shoes Size Conversion Chart
Category	US	EU	UK	Foot Length (in)
Men	6	39	5.5	9.25
	7	40	6.5	9.625
	8	41	7.5	10
	9	42	8.5	10.25
	10	43	9.5	10.625
	11	44	10.5	11
	12	45	11.5	11.25
	13	46	12.5	11.625
Women	5	35	2.5	8.5
	6	36	3.5	8.875
	7	37	4.5	9.25
	8	38	5.5	9.625
	9	39	6.5	10
	10	40	7.5	10.25
	11	41	8.5	10.625
	12	42	9.5	11
M (Unisex)	5	37	4.5	8.75
	6	38	5.5	9
	7	39	6.5	9.5
	8	40	7.5	10
	9	41	8.5	10.25
	10	42	9.5	10.625
	11	43	10.5	11
	12	44	11.5	11.25

42 People watching this product now!

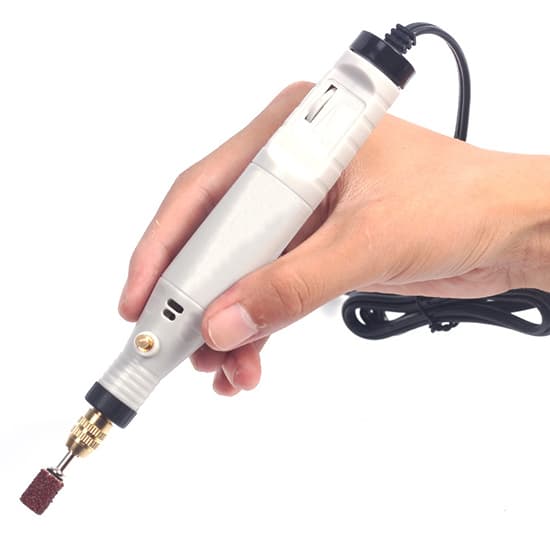

The electric die grinder is a cordless type with mini size and pencil shape. It is a multifunctional tool used for grinding, cutting, drilling, derusting and polishing. Die grinder attachments a various grinding bits for different materials.

Specification

Model	T-JD5202
Power Supply Mode	Rechargeable
Output Power	18V
Clamping Diameter	0.5~3.2mm (1/8 inch)
Rotation Speed	stepless variable speed 5,000-18,000 rpm
Size	165mm*25mm
Weight	86g

Cordless Electric Die Grinder Functions: Grinding, cutting, drilling, derusting, polishing.

Cordless Electric Die Grinder Attachment List

plastic brush*1	sesame grinding bit*1	emery grinding bit*2	jade drilling needle*3	sandpaper roll connecting rod*2	twist drill*4
plastic accessory box*1	cowhide grinding bit*2	jade cutting blade*2	cutting blade connecting rod*2	emery grinding needle*30	copper clip core*10
wool grinding bit*1	stone grinding bit*2	woodworking cutting blade*3	sandpaper roll*20	wire brush*2	manual*1

Cordless Electric Die Grinder Structure Diagram

Dimension Diagram of Cordless Electric Die Grinder

Features

Chuck of the cordless electric die grinder has high concentricity, precision and durability.
Cordless electric die grinder uses lock shaft button design. After pressing the lock shaft button to lock chuck shaft, the chuck or drill bit can be replaced. No tools required, convenient and fast.
With a speed-adjusting roller, it is easy to control the speed.

Tips: Speed adjustment guide for 18V cordless electric die grinder.

Adjust speed according to material		Adjust speed according to function
Plastics and other materials that will melt at low temperatures: low speed.		Use low-speed gear for polishing, grinding, and cleaning to prevent damage to brushes and materials.
Metal: middle speed.		Use middle or high speed gear for grinding, sanding, cutting. Polishing metal and jade can be used with polishing agent.
Hard wood: high speed.		For engraving operations, it is recommended to use middle speed or high speed depending on the proficiency.
