Name: 2-4/7 Inch Electric Jig Saw, 3.5A
Brand: Tool
SKU: 113
Availability: InStock

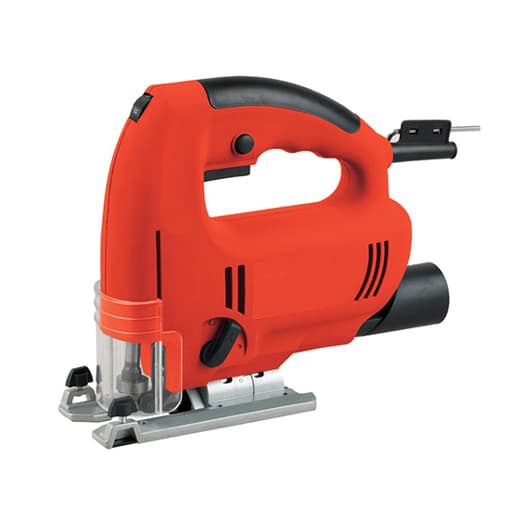

2-4/7 Inch Electric Jig Saw, 3.5A

Size chart

Clothing Size Conversion Chart
Category	US	EU	UK	Chest (in)	Waist (in)	Hips (in)
Men	XS	44	34	32-34	26-28	33-35
	S	46	36	34-36	28-30	35-37
	M	48	38	38-40	32-34	39-41
	L	50	40	42-44	36-38	43-45
	XL	52	42	46-48	40-42	47-49
Women	XS	32	6	31-32	24-25	33-34
	S	34	8	33-34	26-27	35-36
	M	36	10	35-36	28-29	37-38
	L	38-40	12-14	37-39	30-32	39-41
	XL	42	16	40-42	33-35	42-44
Youth	XS	128	7	26-28	23-24	26-28
	S	134	8	28-30	24-25	28-30
	M	140	10	30-32	25-26	30-32
	L	146	12	32-34	26-27	32-34
	XL	152	14	34-36	27-28	34-36

Pants Size Conversion Chart
Category	US	EU	UK	Waist (in)	Hip (in)	Inseam (in)
Men	28	44	28	28	34	30
	30	46	30	30	36	31
	32	48	32	32	38	32
	34	50	34	34	40	33
	36	52	36	36	42	34
Women	0	32	4	24	34	30
	2	34	6	25	35	30
	4	36	8	26	36	31
	6	38	10	27	38	32
	8	40	12	28	40	32

Shoes Size Conversion Chart
Category	US	EU	UK	Foot Length (in)
Men	6	39	5.5	9.25
	7	40	6.5	9.625
	8	41	7.5	10
	9	42	8.5	10.25
	10	43	9.5	10.625
	11	44	10.5	11
	12	45	11.5	11.25
	13	46	12.5	11.625
Women	5	35	2.5	8.5
	6	36	3.5	8.875
	7	37	4.5	9.25
	8	38	5.5	9.625
	9	39	6.5	10
	10	40	7.5	10.25
	11	41	8.5	10.625
	12	42	9.5	11
M (Unisex)	5	37	4.5	8.75
	6	38	5.5	9
	7	39	6.5	9.5
	8	40	7.5	10
	9	41	8.5	10.25
	10	42	9.5	10.625
	11	43	10.5	11
	12	44	11.5	11.25

61 People watching this product now!

Multi-function hand-held electric jig saw, used for straight lines/oblique lines/curves cutting. Applicable materials include metal, wooden boards, thin iron sheets, plastics, etc. It is a small portable jig saw for professional and DIY use.

Specification

Model	T-JS001B
Rated Voltage	230V 50Hz, 240V 60Hz
Input Power	800W
Rated Current	3.5A, 3.3A
No-Load Speed	0-3000 rpm
Cutting Capacity	Wood: 2-4/7 inch (65mm) Steel: 8mm
Bevel Cutting Range	-45°~0°~45°
Stroke Distance	20mm
Weight	3 kg

Features

The electric jig saw has 4 pendulum action settings for fast cutting in different materials.
Portable hand-held electric jig saw, compact structure and small size.
The electric jig saw is suitable for DIY, novice and professional woodworking.

Electric Jig Saw Dimensions & Details

Saw Blade Installation for Electric Jig Saw

Twist the quick chuck.
Insert saw blade to the end.
Release the button to complete installation.

Angle Adjustment for Electric Jig Saw

Unscrew the bottom screw.
Adjust to the required angle.
Tighten the bottom screw.

Tips: Precautions for using electric jig saw.

Wear work clothes and protective glasses when working. Keep the work area clean.
Do not use electric jig saw in the rain, excessive humidity, or flammable liquid gas.
Electric jig saw power cord should be kept away from heat, oil and sharp objects. When power cord is damaged, replace it in time. Do not make power cord contact with bare conductors to prevent electric shock.
When not using an electric jig saw, keep it in a dry place out of reach of children. Unplug the power cord to prevent accidental startup and cause danger.
It is strictly forbidden to use a jig saw under overload. Do not use low-power tools for heavy-duty work to avoid damage.
Electric jig saw cannot be used for operations other than sawing.
When replacing accessories, be sure to disconnect the power before proceeding.
