Name: 2-Speed Hand-Held Electric Cement Mixer, 1.2kW
Brand: Tool
SKU: 81
Availability: InStock

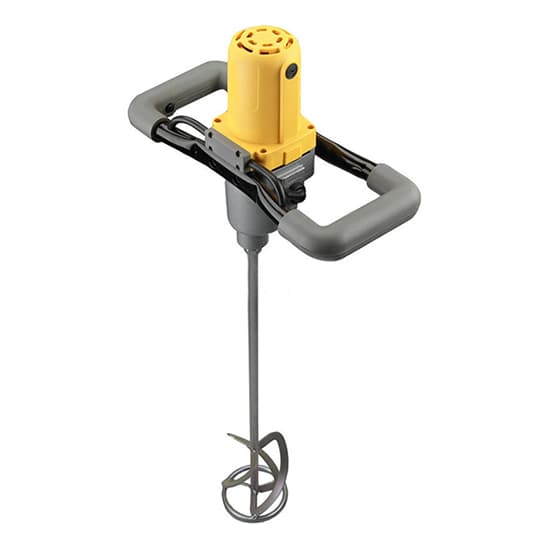

2-Speed Hand-Held Electric Cement Mixer, 1.2kW

Size chart

Clothing Size Conversion Chart
Category	US	EU	UK	Chest (in)	Waist (in)	Hips (in)
Men	XS	44	34	32-34	26-28	33-35
	S	46	36	34-36	28-30	35-37
	M	48	38	38-40	32-34	39-41
	L	50	40	42-44	36-38	43-45
	XL	52	42	46-48	40-42	47-49
Women	XS	32	6	31-32	24-25	33-34
	S	34	8	33-34	26-27	35-36
	M	36	10	35-36	28-29	37-38
	L	38-40	12-14	37-39	30-32	39-41
	XL	42	16	40-42	33-35	42-44
Youth	XS	128	7	26-28	23-24	26-28
	S	134	8	28-30	24-25	28-30
	M	140	10	30-32	25-26	30-32
	L	146	12	32-34	26-27	32-34
	XL	152	14	34-36	27-28	34-36

Pants Size Conversion Chart
Category	US	EU	UK	Waist (in)	Hip (in)	Inseam (in)
Men	28	44	28	28	34	30
	30	46	30	30	36	31
	32	48	32	32	38	32
	34	50	34	34	40	33
	36	52	36	36	42	34
Women	0	32	4	24	34	30
	2	34	6	25	35	30
	4	36	8	26	36	31
	6	38	10	27	38	32
	8	40	12	28	40	32

Shoes Size Conversion Chart
Category	US	EU	UK	Foot Length (in)
Men	6	39	5.5	9.25
	7	40	6.5	9.625
	8	41	7.5	10
	9	42	8.5	10.25
	10	43	9.5	10.625
	11	44	10.5	11
	12	45	11.5	11.25
	13	46	12.5	11.625
Women	5	35	2.5	8.5
	6	36	3.5	8.875
	7	37	4.5	9.25
	8	38	5.5	9.625
	9	39	6.5	10
	10	40	7.5	10.25
	11	41	8.5	10.625
	12	42	9.5	11
M (Unisex)	5	37	4.5	8.75
	6	38	5.5	9
	7	39	6.5	9.5
	8	40	7.5	10
	9	41	8.5	10.25
	10	42	9.5	10.625
	11	43	10.5	11
	12	44	11.5	11.25

65 People watching this product now!

The electric cement mixer has small size and hand-held design for portable use, low price. Mixing materials are cement self-leveling, paints, cement plaster, ceramic tile adhesive, caulking agent and glue.

Specification

Model	T-MR-1200
Rated Voltage	230V/110V 50Hz/60Hz
Rated Power	1200W
Rotation Speed	level-1: 150-300rpm level-2: 300-650rpm
Paddle (diameter*length)	H3 120*600mm
Connecting Rod	M14 thread (length 100mm, 200mm)
Packing Size	620370240mm
Weight	6.88kg
Applicable Materials	paint, epoxy resin, paving materials

Features

Hand-held electric cement mixer has 2-grade adjustable speeds. Level 1 is suitable for high viscosity materials, Level 2 is suitable for general viscosity materials.
2-level speed is divided into 6 gears. According to the characteristics of material, adjust to proper speed.
Hand-held electric cement mixer has high-torque, high-efficiency heavy-duty gear system, continuous working time≥300 hours, long service life. Swing amplitude of the stirring rod is ≤0.5m.

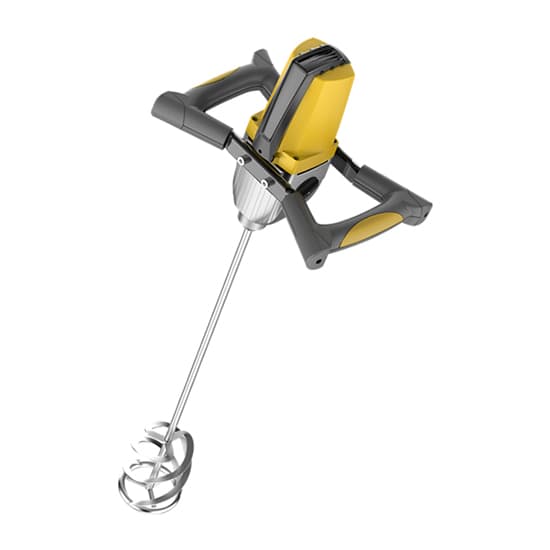

Hand-Held Electric Cement Mixer Details

Applicable Materials of Hand-Held Electric Cement Mixer

M14 Connecting Rod Diagram of Hand-Held Electric Cement Mixer

H3 Paddle of Hand-Held Electric Cement Mixer

Tips: Judgment for handheld electric cement mixer common fault.

Motor does not run:
1. Carbon brush is exhausted or carbon brush contactor is burned out.
2. Wire contacts are loose.
3. Motor is burned out.
4. Wires are short-circuited.
No output: Gear is worn.
Function adjustment failure: the adjustment sheet or adjustment spring is damaged.
Noise:
1. Ratchet disc or gear is worn.
2. Gearbox grease is dry.
3. Fan is loose.
4. Commutator and carbon brush are worn, or foreign matter enters.
Severe vibration:
1. Bearings at both ends of rotor or bearings on spindle are worn, or commutator is worn.
2. Carbon brush is exhausted.
3. Fan is loose or foreign matter enters.
Stator shell heating:
1. Rotor and stator rub against each other.
2. Fan falls off.
