Name: 2800 rpm Laboratory Vortex Mixer, 110V/220V
Brand: Tool
SKU: 85
Availability: InStock

2800 rpm Laboratory Vortex Mixer, 110V/220V

Size chart

Clothing Size Conversion Chart
Category	US	EU	UK	Chest (in)	Waist (in)	Hips (in)
Men	XS	44	34	32-34	26-28	33-35
	S	46	36	34-36	28-30	35-37
	M	48	38	38-40	32-34	39-41
	L	50	40	42-44	36-38	43-45
	XL	52	42	46-48	40-42	47-49
Women	XS	32	6	31-32	24-25	33-34
	S	34	8	33-34	26-27	35-36
	M	36	10	35-36	28-29	37-38
	L	38-40	12-14	37-39	30-32	39-41
	XL	42	16	40-42	33-35	42-44
Youth	XS	128	7	26-28	23-24	26-28
	S	134	8	28-30	24-25	28-30
	M	140	10	30-32	25-26	30-32
	L	146	12	32-34	26-27	32-34
	XL	152	14	34-36	27-28	34-36

Pants Size Conversion Chart
Category	US	EU	UK	Waist (in)	Hip (in)	Inseam (in)
Men	28	44	28	28	34	30
	30	46	30	30	36	31
	32	48	32	32	38	32
	34	50	34	34	40	33
	36	52	36	36	42	34
Women	0	32	4	24	34	30
	2	34	6	25	35	30
	4	36	8	26	36	31
	6	38	10	27	38	32
	8	40	12	28	40	32

Shoes Size Conversion Chart
Category	US	EU	UK	Foot Length (in)
Men	6	39	5.5	9.25
	7	40	6.5	9.625
	8	41	7.5	10
	9	42	8.5	10.25
	10	43	9.5	10.625
	11	44	10.5	11
	12	45	11.5	11.25
	13	46	12.5	11.625
Women	5	35	2.5	8.5
	6	36	3.5	8.875
	7	37	4.5	9.25
	8	38	5.5	9.625
	9	39	6.5	10
	10	40	7.5	10.25
	11	41	8.5	10.625
	12	42	9.5	11
M (Unisex)	5	37	4.5	8.75
	6	38	5.5	9
	7	39	6.5	9.5
	8	40	7.5	10
	9	41	8.5	10.25
	10	42	9.5	10.625
	11	43	10.5	11
	12	44	11.5	11.25

18 People watching this product now!

The laboratory vortex mixer is a portable scientific instrument, for mixing/stirring any liquid and powder quickly in the form of high-speed vortex, and can also mix liquid-solid or solid-solid (powder).

Specification

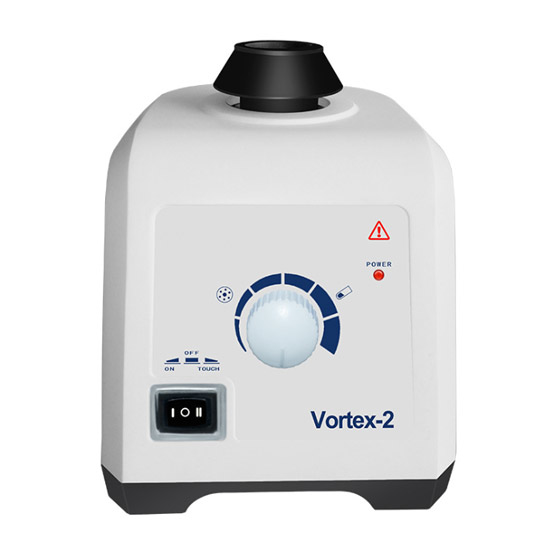

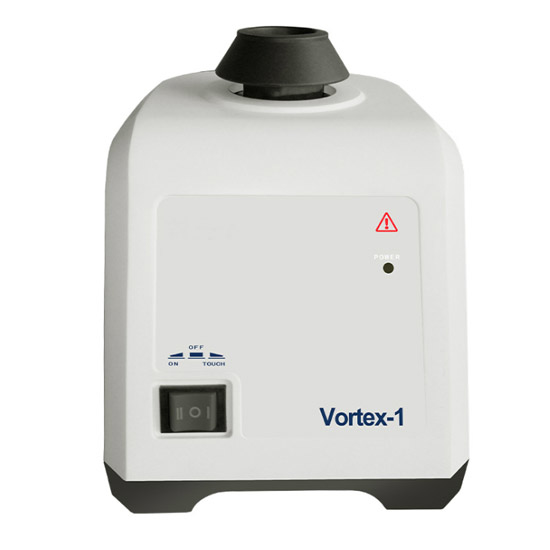

Model	T-Vortex-2	Vortex-1
Speed Control	Stepless variable speed	Constant speed
Speed	0~2800 rpm	2800 rpm
Rated Voltage	110V, 220V
Motor Input Power	60W
Motor Output Power	11W
Stirr Type	circular oscillation
Operation Mode	TOUCH/GO
Turnover Diameter	4mm
Motor Type	Shaded pole motor
Speed Display	Scale
Shell Protection Level	IP21
Allowable Ambient Temperature	5-40℃, 80%RH
Overall Size	170120140mm
Weight	3.5 kg
Standard Attachment	power cable, product manual, standard test tube block

Features

The laboratory vortex mixer has eccentric ball bearing design, the vibration head is easy to install. Soft silicone feet prevent the vortex mixer from moving during high-speed vibrations.
Laboratory vortex mixer has small size, low power consumption and low noise.
The body of laboratory vortex mixer adopts reinforced engineering plastic molding technology, no paint spraying, acid and alkali resistance, and collision resistance.
Workbench of the laboratory vortex mixer are all corrosion-resistant, wear-resistant, and safe TPU materials, which are not easily damaged.
The laboratory vortex mixer integrates functions of ON, TOUCH, speed adjustment, providing a fast operating platform for experiments.

Test Tube Block Specification

Picture	Block Specification	Applicable Test Tube Diameter	Optional Test Tube Block for T-Vortex-2	Optional Test Tube Block for T-Vortex-1
	standard test tube block*	＜30mm	√	√
	handheld support rod (used with the block)	–	√	√
	48 holes	6mm	√	√
	15 holes	10mm	√	√
	12 holes	12mm	√	√
	8 holes	16mm	√	√
	8 holes	20mm	√	√
	flat pad	＜99mm	√	×
	Universal round head	100mm	√	×
