Name: 3.15 Inch Electric Jigsaw, 3.5A
Brand: Tool
SKU: 115
Availability: InStock

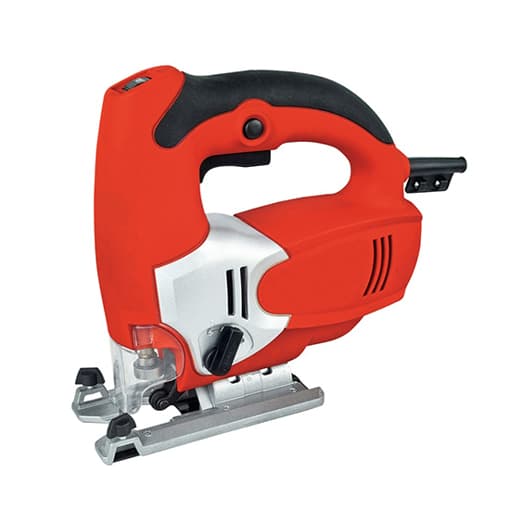

3.15 Inch Electric Jigsaw, 3.5A

Size chart

Clothing Size Conversion Chart
Category	US	EU	UK	Chest (in)	Waist (in)	Hips (in)
Men	XS	44	34	32-34	26-28	33-35
	S	46	36	34-36	28-30	35-37
	M	48	38	38-40	32-34	39-41
	L	50	40	42-44	36-38	43-45
	XL	52	42	46-48	40-42	47-49
Women	XS	32	6	31-32	24-25	33-34
	S	34	8	33-34	26-27	35-36
	M	36	10	35-36	28-29	37-38
	L	38-40	12-14	37-39	30-32	39-41
	XL	42	16	40-42	33-35	42-44
Youth	XS	128	7	26-28	23-24	26-28
	S	134	8	28-30	24-25	28-30
	M	140	10	30-32	25-26	30-32
	L	146	12	32-34	26-27	32-34
	XL	152	14	34-36	27-28	34-36

Pants Size Conversion Chart
Category	US	EU	UK	Waist (in)	Hip (in)	Inseam (in)
Men	28	44	28	28	34	30
	30	46	30	30	36	31
	32	48	32	32	38	32
	34	50	34	34	40	33
	36	52	36	36	42	34
Women	0	32	4	24	34	30
	2	34	6	25	35	30
	4	36	8	26	36	31
	6	38	10	27	38	32
	8	40	12	28	40	32

Shoes Size Conversion Chart
Category	US	EU	UK	Foot Length (in)
Men	6	39	5.5	9.25
	7	40	6.5	9.625
	8	41	7.5	10
	9	42	8.5	10.25
	10	43	9.5	10.625
	11	44	10.5	11
	12	45	11.5	11.25
	13	46	12.5	11.625
Women	5	35	2.5	8.5
	6	36	3.5	8.875
	7	37	4.5	9.25
	8	38	5.5	9.625
	9	39	6.5	10
	10	40	7.5	10.25
	11	41	8.5	10.625
	12	42	9.5	11
M (Unisex)	5	37	4.5	8.75
	6	38	5.5	9
	7	39	6.5	9.5
	8	40	7.5	10
	9	41	8.5	10.25
	10	42	9.5	10.625
	11	43	10.5	11
	12	44	11.5	11.25

11 People watching this product now!

Electric jigsaw is the best saw tool for wood and metal cutting, high power, compact structure, small size, portable to handheld operate or work on table.

Specification

Model	T-JS009B
Rated Voltage	230V 50Hz, 240V 60Hz
Input Power	800W
Rated Current	3.5A, 3.3A
No-Load Speed	0-3,000 rpm
Cutting Capacity	Wood: 3.15 inch (80mm) Steel: 10mm
Bevel Cutting Range	-45°~0°~45°
Stroke Distance	20mm
Weight	3 kg

Features

Electric jigsaw has 4 pendulum action settings for different cutting materials.
Dust extraction function, blow away sawdust in time, make the cutting orbital clear and ensure cutting accuracy.

Electric Jigsaw Dimensions Drawing

Saw Blade Installation for Electric Jigsaw

Use Allen wrench to unscrew the screw.
Insert saw blade and tighten screws, complete installation.

Angle Adjustment for Electric Jigsaw

Unscrew the hexagon socket screws.
Adjust to the required angle.
Tighten the hexagon socket screws.

Tips: How to use electric jigsaw for curve cutting?

Straight saw blades and jig saw blades are not the same.
If the radius of the curve to be cut is small, use a saw blade with a narrower width.
If the cutting point is in the middle of sheet material, it needs to first drill a hole with drill bit before cutting.
Use electric jigsaw for curve cutting, use the 1st gear with lowest speed.
