Name: 5.5 Inch Electric Circular Saw, 240V
Brand: Tool
SKU: 101
Availability: InStock

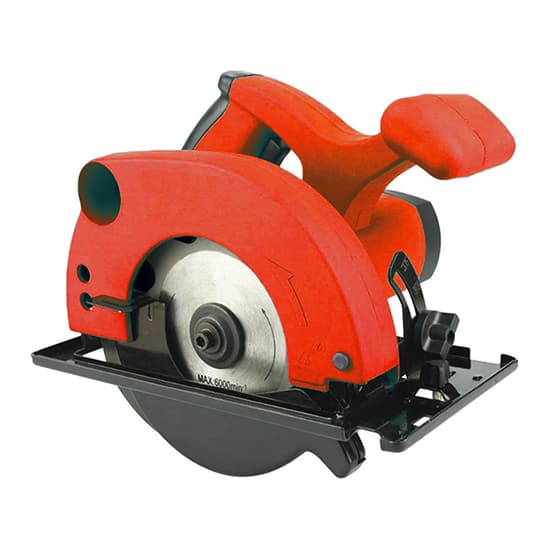

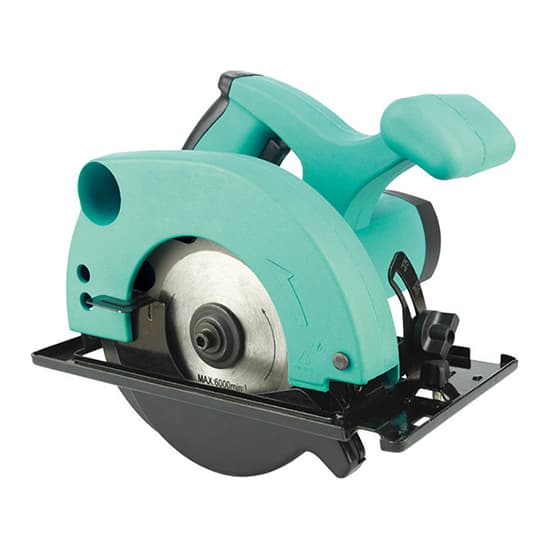

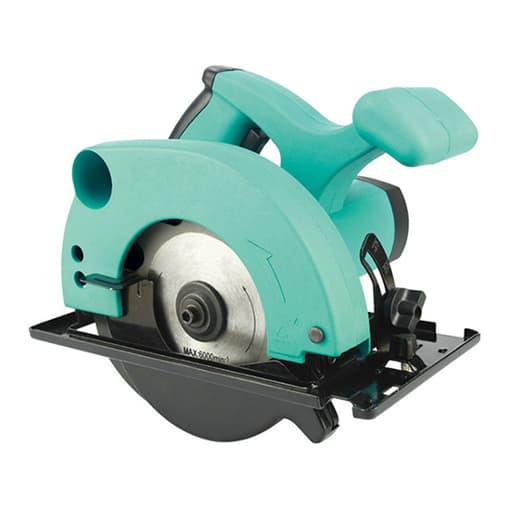

5.5 Inch Electric Circular Saw, 240V

Size chart

Clothing Size Conversion Chart
Category	US	EU	UK	Chest (in)	Waist (in)	Hips (in)
Men	XS	44	34	32-34	26-28	33-35
	S	46	36	34-36	28-30	35-37
	M	48	38	38-40	32-34	39-41
	L	50	40	42-44	36-38	43-45
	XL	52	42	46-48	40-42	47-49
Women	XS	32	6	31-32	24-25	33-34
	S	34	8	33-34	26-27	35-36
	M	36	10	35-36	28-29	37-38
	L	38-40	12-14	37-39	30-32	39-41
	XL	42	16	40-42	33-35	42-44
Youth	XS	128	7	26-28	23-24	26-28
	S	134	8	28-30	24-25	28-30
	M	140	10	30-32	25-26	30-32
	L	146	12	32-34	26-27	32-34
	XL	152	14	34-36	27-28	34-36

Pants Size Conversion Chart
Category	US	EU	UK	Waist (in)	Hip (in)	Inseam (in)
Men	28	44	28	28	34	30
	30	46	30	30	36	31
	32	48	32	32	38	32
	34	50	34	34	40	33
	36	52	36	36	42	34
Women	0	32	4	24	34	30
	2	34	6	25	35	30
	4	36	8	26	36	31
	6	38	10	27	38	32
	8	40	12	28	40	32

Shoes Size Conversion Chart
Category	US	EU	UK	Foot Length (in)
Men	6	39	5.5	9.25
	7	40	6.5	9.625
	8	41	7.5	10
	9	42	8.5	10.25
	10	43	9.5	10.625
	11	44	10.5	11
	12	45	11.5	11.25
	13	46	12.5	11.625
Women	5	35	2.5	8.5
	6	36	3.5	8.875
	7	37	4.5	9.25
	8	38	5.5	9.625
	9	39	6.5	10
	10	40	7.5	10.25
	11	41	8.5	10.625
	12	42	9.5	11
M (Unisex)	5	37	4.5	8.75
	6	38	5.5	9
	7	39	6.5	9.5
	8	40	7.5	10
	9	41	8.5	10.25
	10	42	9.5	10.625
	11	43	10.5	11
	12	44	11.5	11.25

18 People watching this product now!

Electric circular saw has a saw blade of 5.5 inch diameter, powered by 240V AC. Sawing materials are wood and plastic. The handheld electric circular saw has compact and mini structure, small size and lightweight, easy and convenient for operation.

Specification

Model	T-CS001A	T-CS001B
Rated Voltage	240V/60Hz, 230V/50Hz
Input Power	750W	800W
Rated Current	3.1A, 3.3A	3.3A, 3.5A
No-Load Speed	4000 rpm
Blade Diameter	5.5 inch (140mm)
Bevel Cutting Rang	0-45°
Cutting Capacity	0-45mm
Accessories	3 saw blades, 1 dust tube, 1 tool for saw blade change
Color	Random
Weight	6 kg

Electric Circular Saw Dimension Drawing

Electric Circular Saw Details

Electric Circular Saw Blade Installation

Press the spindle lock switch to lock spindle.
Use a wrench to rotate counterclockwise to remove pressing plate of saw blade.
Insert saw blade from the counterclockwise direction of saw teeth, and install pressing ring.
Put back saw blade pressing plate, and turn the screw clockwise, compress the pressing plate.

Tips: Preparations for using electric circular saw.

Confirm that saw blade, housing, and handle of the electric circular saw are not cracked or damaged.
Confirm that the cable cord and plug are intact, switch operates normally, correctly protective connect to neutral, firm and reliable.
Check whether saw blade is installed firmly, bolts are tightened, and the internal and external chucks clamp saw blade tightly. Saw blade plane should be perpendicular to the horizontal axis of electric circular saw.
Check whether the rotation of movable protective cover is flexible and whether it is deformed. Ensure that it will not rub against electric circular saw blade, connection is reliable, and it will not fall off during operation.
Check whether the side handle of electric circular saw is installed firmly, and whether it will be loose during holding operation.
