Name: 5 Line Rotary Green Laser Level
Brand: Tool
SKU: 1477
Availability: InStock

5 Line Rotary Green Laser Level

Size chart

Clothing Size Conversion Chart
Category	US	EU	UK	Chest (in)	Waist (in)	Hips (in)
Men	XS	44	34	32-34	26-28	33-35
	S	46	36	34-36	28-30	35-37
	M	48	38	38-40	32-34	39-41
	L	50	40	42-44	36-38	43-45
	XL	52	42	46-48	40-42	47-49
Women	XS	32	6	31-32	24-25	33-34
	S	34	8	33-34	26-27	35-36
	M	36	10	35-36	28-29	37-38
	L	38-40	12-14	37-39	30-32	39-41
	XL	42	16	40-42	33-35	42-44
Youth	XS	128	7	26-28	23-24	26-28
	S	134	8	28-30	24-25	28-30
	M	140	10	30-32	25-26	30-32
	L	146	12	32-34	26-27	32-34
	XL	152	14	34-36	27-28	34-36

Pants Size Conversion Chart
Category	US	EU	UK	Waist (in)	Hip (in)	Inseam (in)
Men	28	44	28	28	34	30
	30	46	30	30	36	31
	32	48	32	32	38	32
	34	50	34	34	40	33
	36	52	36	36	42	34
Women	0	32	4	24	34	30
	2	34	6	25	35	30
	4	36	8	26	36	31
	6	38	10	27	38	32
	8	40	12	28	40	32

Shoes Size Conversion Chart
Category	US	EU	UK	Foot Length (in)
Men	6	39	5.5	9.25
	7	40	6.5	9.625
	8	41	7.5	10
	9	42	8.5	10.25
	10	43	9.5	10.625
	11	44	10.5	11
	12	45	11.5	11.25
	13	46	12.5	11.625
Women	5	35	2.5	8.5
	6	36	3.5	8.875
	7	37	4.5	9.25
	8	38	5.5	9.625
	9	39	6.5	10
	10	40	7.5	10.25
	11	41	8.5	10.625
	12	42	9.5	11
M (Unisex)	5	37	4.5	8.75
	6	38	5.5	9
	7	39	6.5	9.5
	8	40	7.5	10
	9	41	8.5	10.25
	10	42	9.5	10.625
	11	43	10.5	11
	12	44	11.5	11.25

59 People watching this product now!

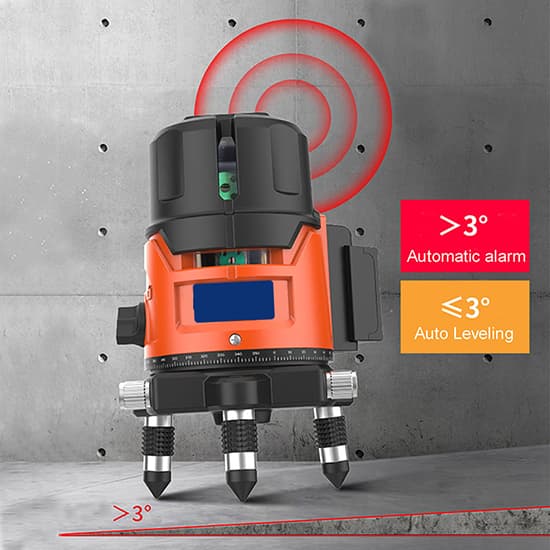

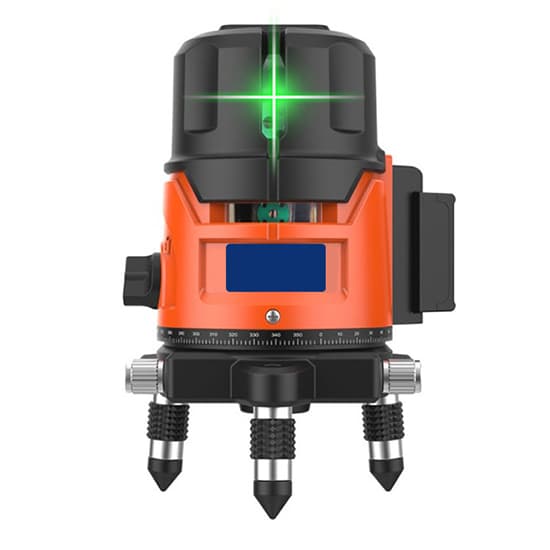

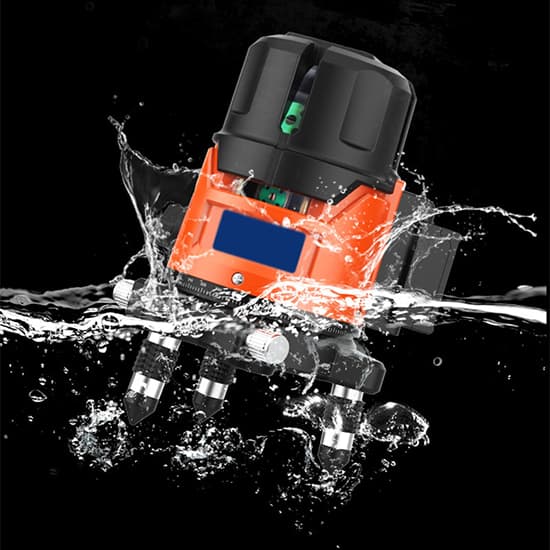

Cheap price self leveling laser level with 5 green laser lines, 360° rotating base, both DC (3 pcs 1.5V AA batteries) and AC (100-240V /50-60Hz) available for this green laser level tool, IP54 waterproof protection grade enables users to work well in a hazardous working environment.

Specification

Model	T-SL-05
No.of Laser Lines	5
Leveling Type	4 vertical line, 1 horizontal line, 1 plumb dot, 5 bright dots
Laser Wavelength	635nm
Self-Leveling Range	±3°
Launch Angle	≥120°
Horizontal Accuracy	5m±1mm
Vertical Accuracy	5m±1mm
Plumb Dot Accuracy	±1mm at 1.5m
Line Width	2mm
Line Color	Emerald green
Power Supply	3 x AA batteries or AC power
IP Rating	IP54
Operation Temperature	0℃~40℃
Battery Type	Digital LCD rechargeable lithium battery (8 hours standby)
Function Key	Fingerprint touch buttons
Laser Head	Made in Germany
Laser Tube Life	10 years
Outdoor Visible Distance	About 15m
Indoor Visible Distance	About 15m~40m
Application	Ceiling, home decoration, door and window installation, etc
Weight	2.5kg

Details

5 Line Laser Level Diagram

Tips: Zero calibration method of laser level

Before use, check whether the dial indicator is in the controlled range. In order to avoid measurement errors caused by the inaccurate zero position of the level, the zero position of the level must be calibrated or adjusted before use.

Zero calibration method of the spirit level: Place the spirit level on a stable and roughly horizontal plate (or machine tool rail), after the bubble stabilizes, read at one end (such as the left end) and set it to zero. Turn the level meter 180 degrees again, and keep it in its original position. After the bubble is stable, the original end (left end) is still reading A division, then the zero position error of the level meter is half A division.

If the zero error exceeds the allowable range, you need to adjust the level meter zero adjustment mechanism (adjust the screw or nut to reduce the zero error to within the allowable value. For non-specified adjustment screws and nuts, do not twist at will. The working surface and the plate must be wiped clean first before adjusting the level. After adjustment, the screws or nuts must be tightened).
